Back Door Glass: Components

Fig 1: Exploded View Of Back Door Glass Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

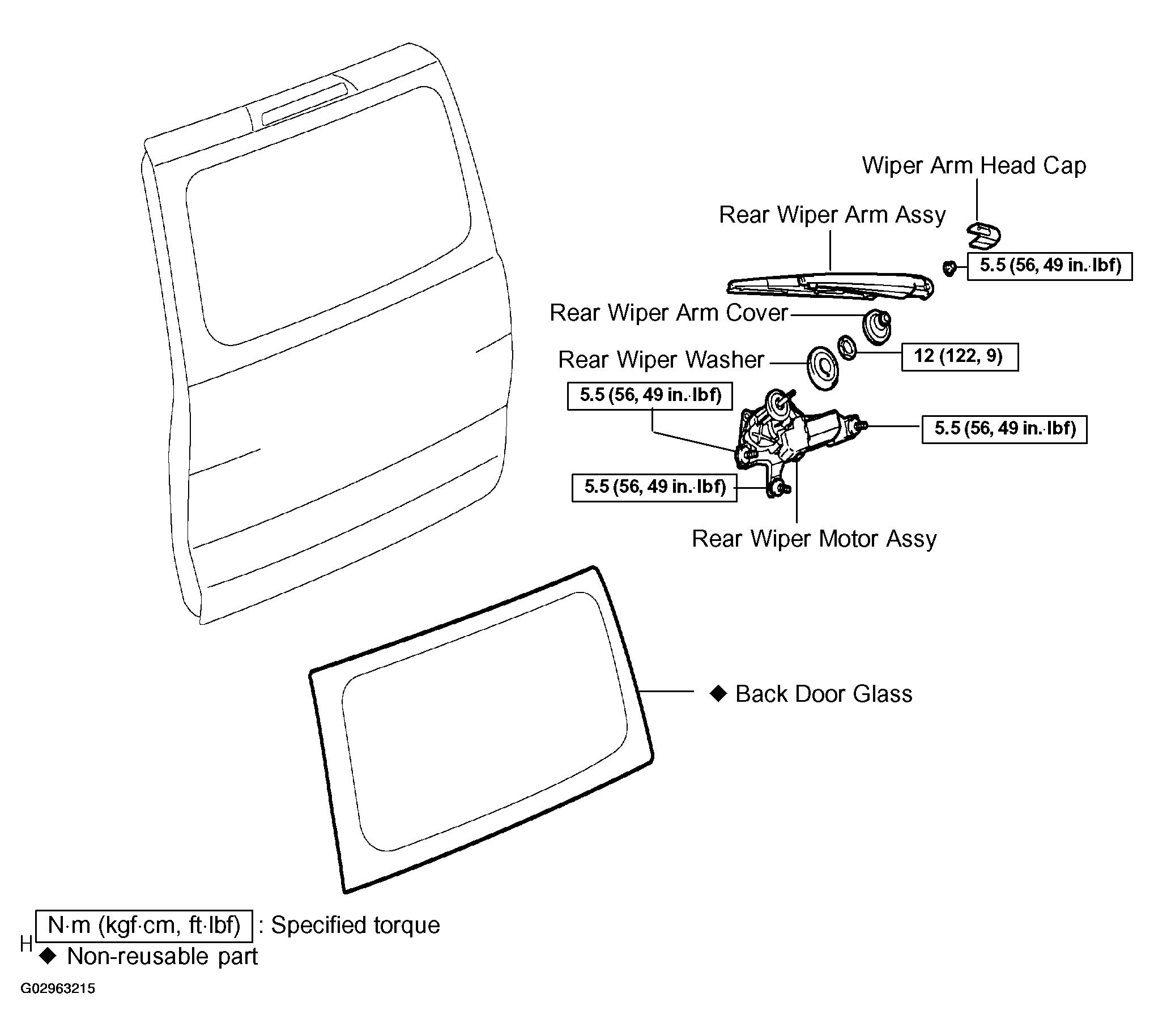

Fig 2: Exploded View Of Back Door Glass Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
