Quarter Window ASSY LH: Components

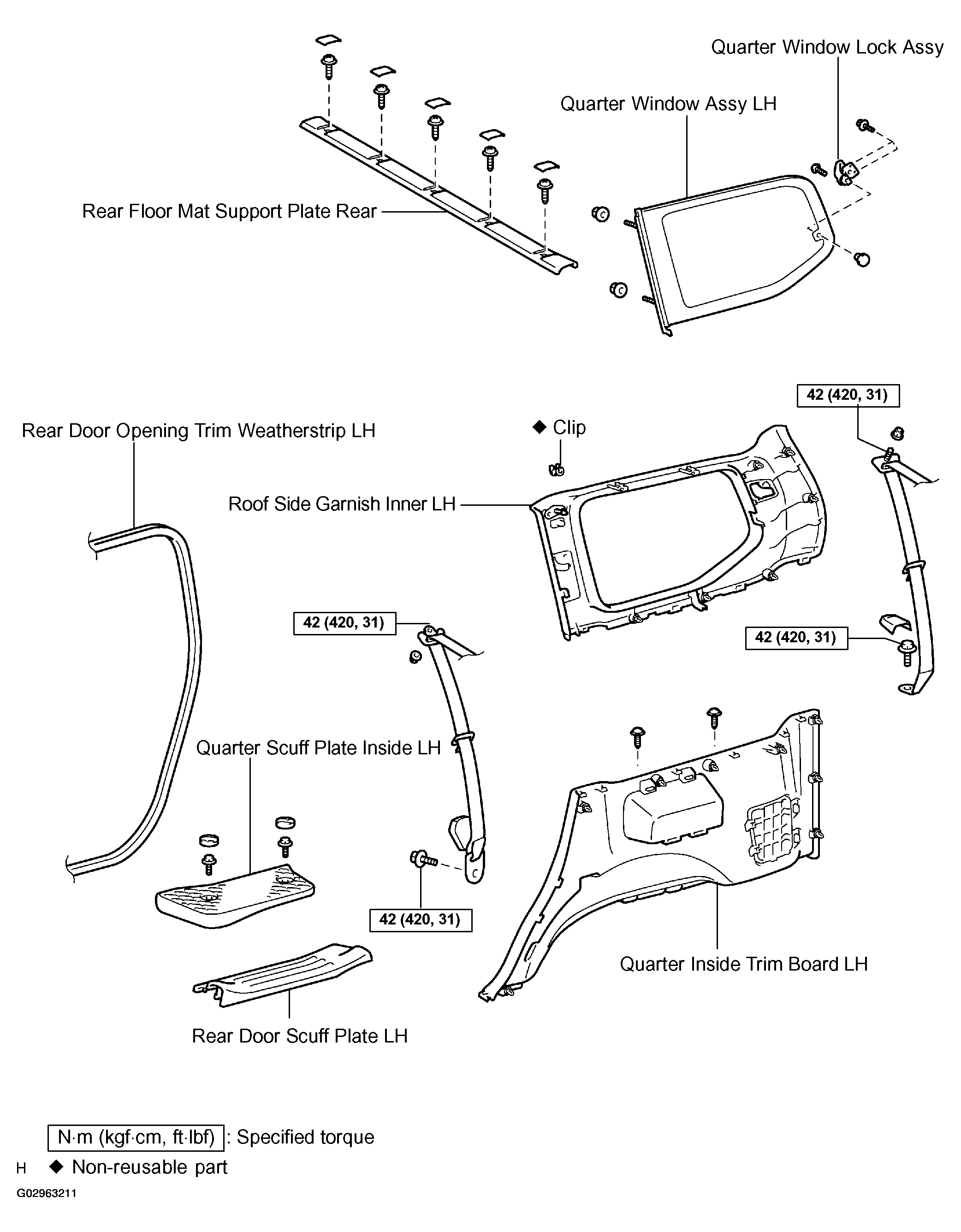

Fig 1: Exploded View Of Quarter Window Assy LH Components
G02963211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
