Window Defogger System: Location

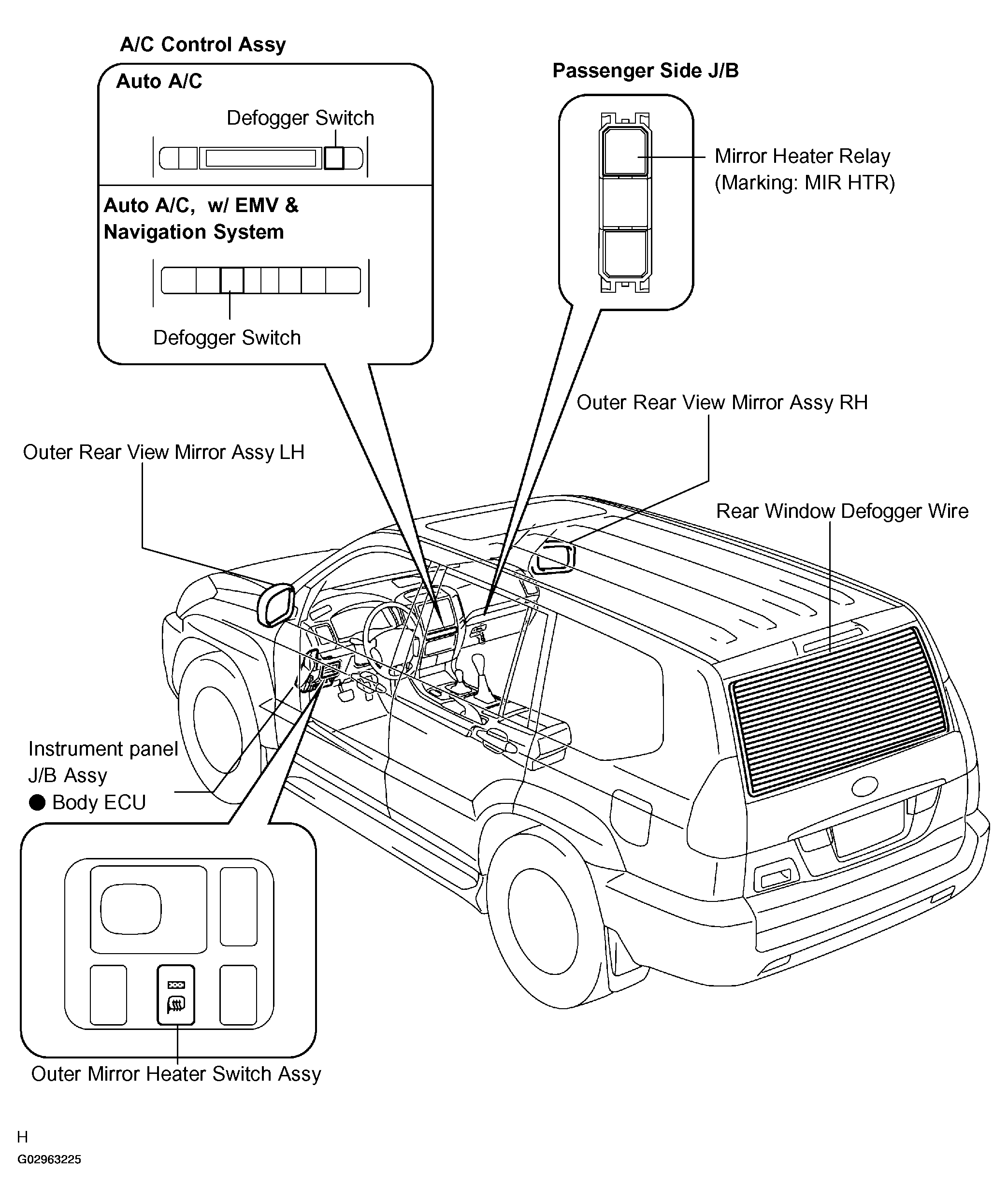

Fig 1: Locating Window Defogger System Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

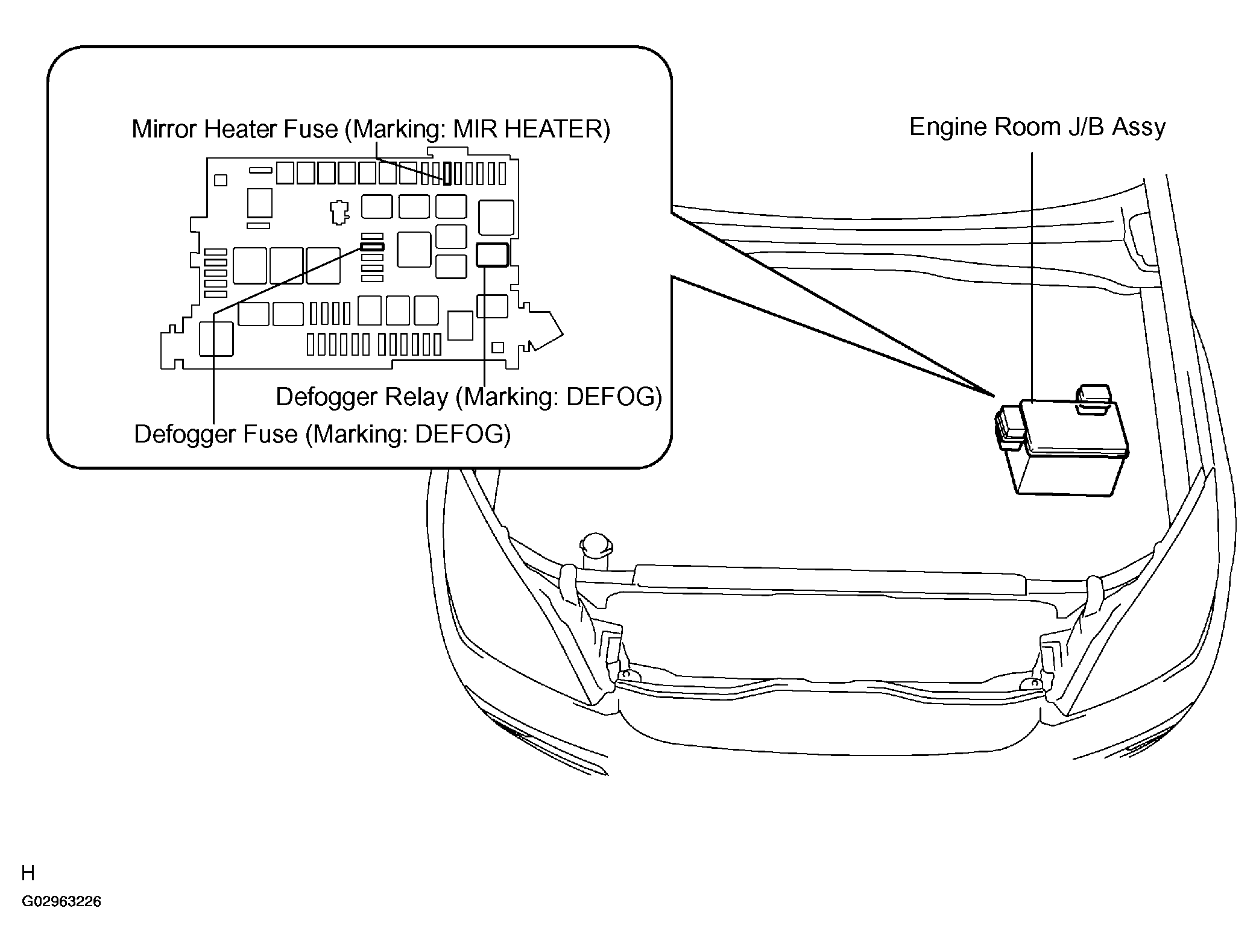

Fig 2: Locating Window Defogger System Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
