Instrument Panel Safety Pad Sub-ASSY: Replacement
HINT:
See COMPONENTS

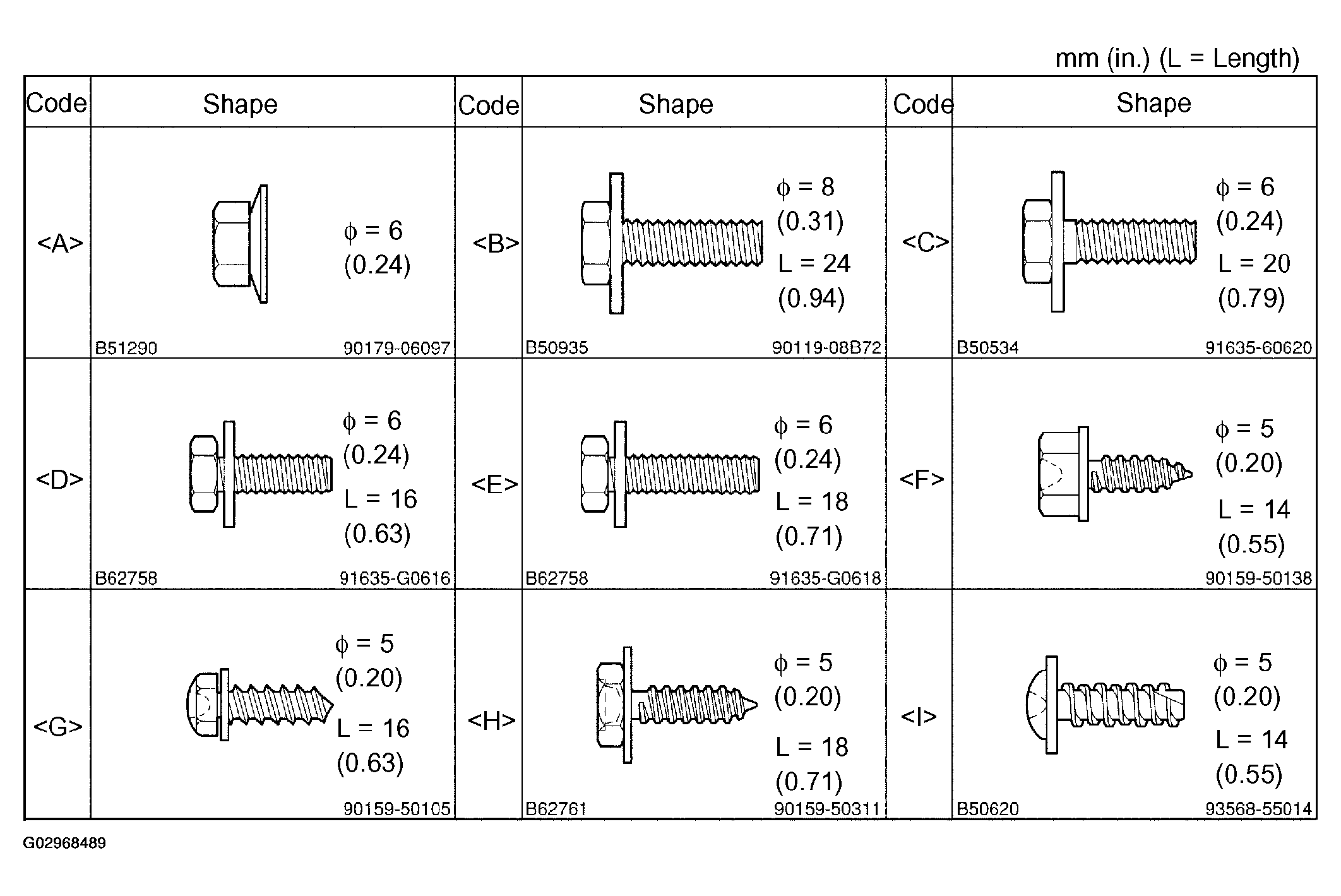

- TABLE OF BOLT, SCREW AND NUT
HINT:
The bolts, screws and nuts, which are necessary for installation and removal of the instrument panel, are shown in Fig 1 with alphabets.
- DISCONNECT BATTERY NEGATIVE TERMINAL (SEE PRECAUTION )
- REMOVE SHIFT LEVER KNOB SUB-ASSY
- REMOVE SHIFT LEVER KNOB SUB-ASSY
- REMOVE CONSOLE UPPER PANEL GARNISH NO. 2

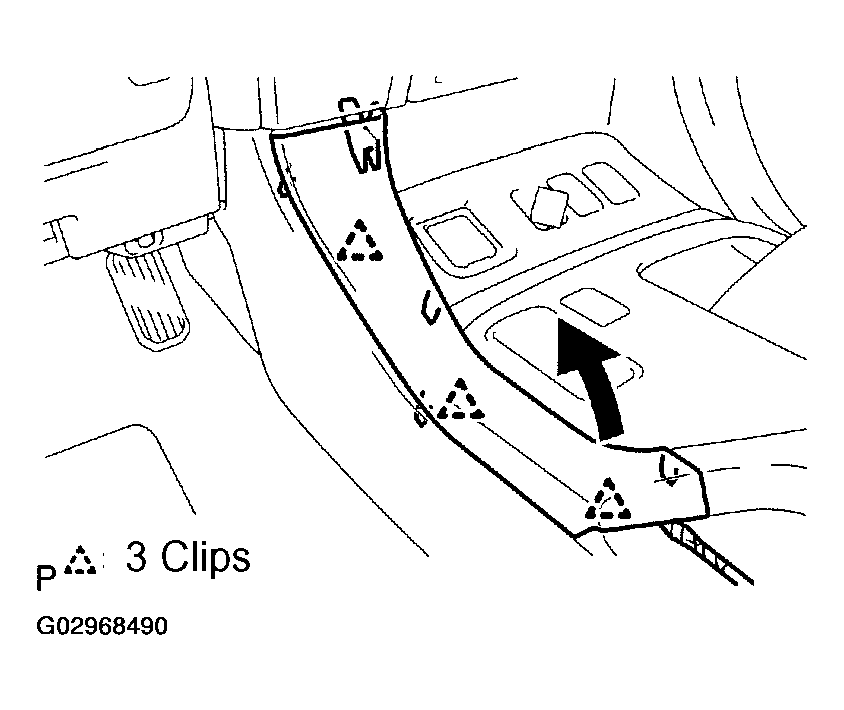

- Disengage the 3 clips and remove the console upper panel garnish No. 2.
- REMOVE CONSOLE UPPER PANEL GARNISH NO. 1

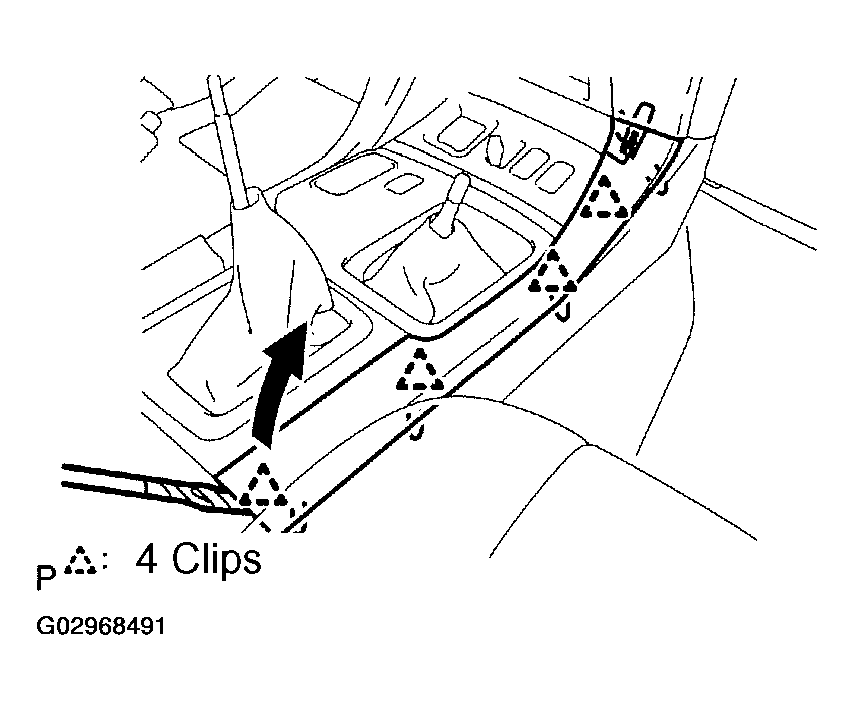

- Disengage the 4 clips and remove the console upper panel garnish No. 1.
- REMOVE CONSOLE PANEL UPPER ASSY

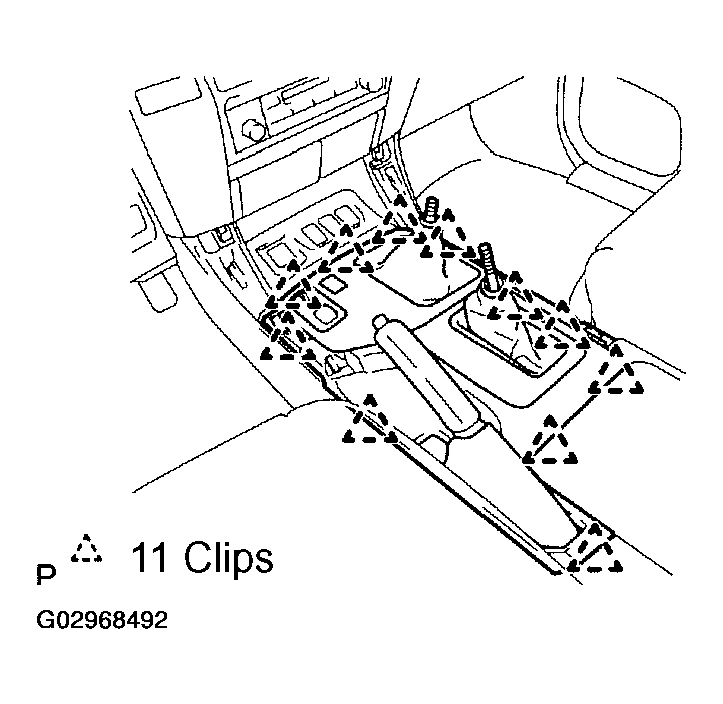

- Disengage the 11 clips and remove the console panel upper assy, then disconnect the connectors.
- REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY LH

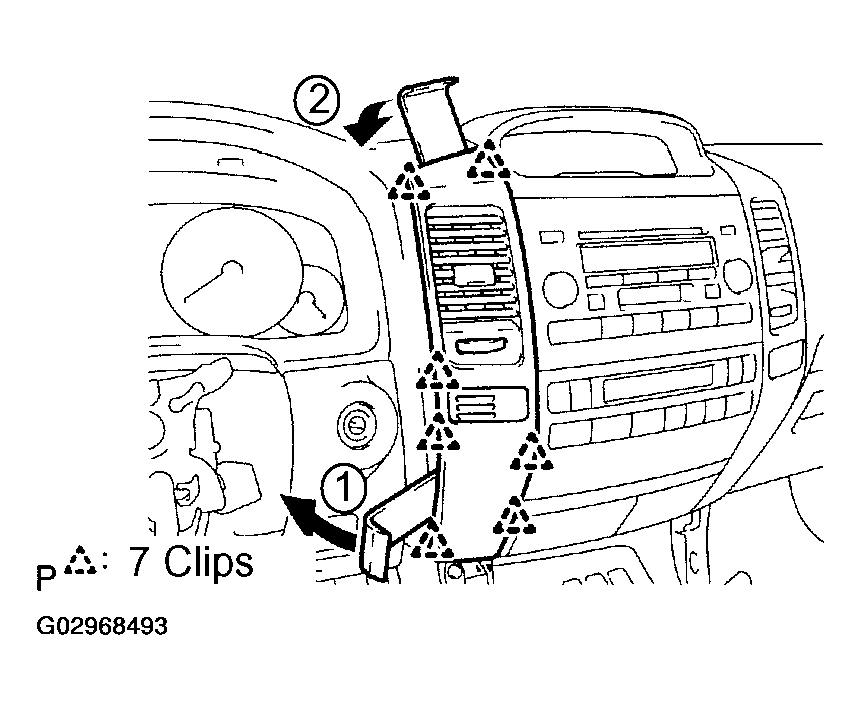

- Using a molding remover, disengage the 7 clips as shown in Fig 5.
- Disconnect the connector and remove the instrument panel garnish sub-assy LH.
- REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY RH
- REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER LOWER

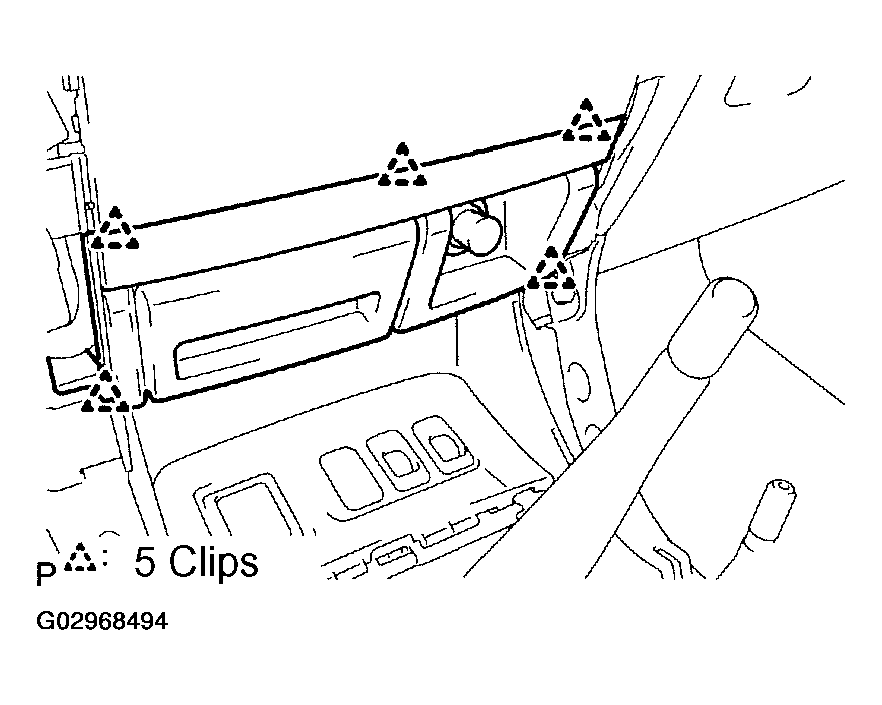

- Disengage the 5 clips and remove the instrument cluster finish panel center lower, then disconnect the connectors.
- REMOVE INTEGRATION CONTROL & PANEL ASSY (SEE OVERHAUL )
- REMOVE CONSOLE REAR END PANEL SUB-ASSY
- Disengage the 2 clips and the 5 claws, and then remove the console rear end panel sub-assy.
- Disconnect the connectors.
- REMOVE RR CONSOLE BOX ASSY

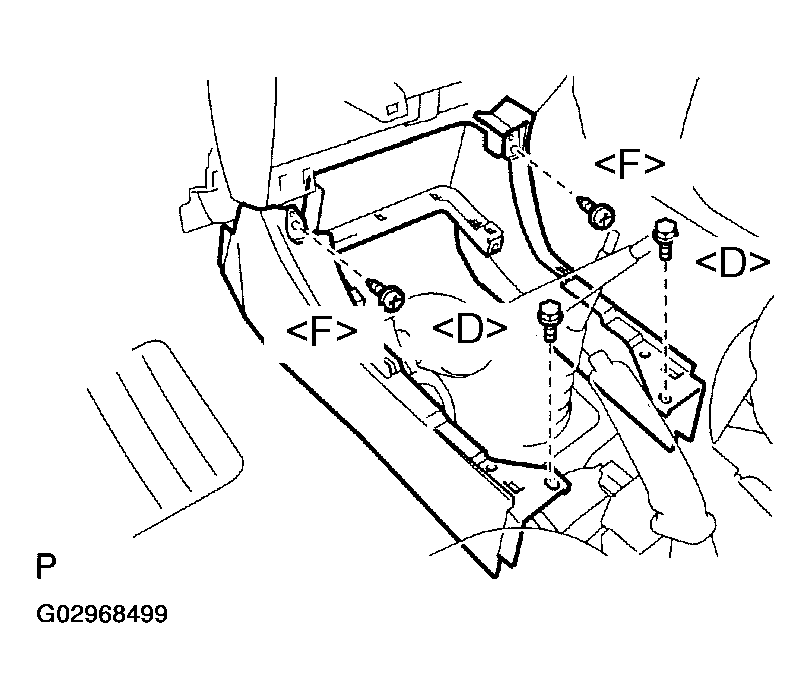

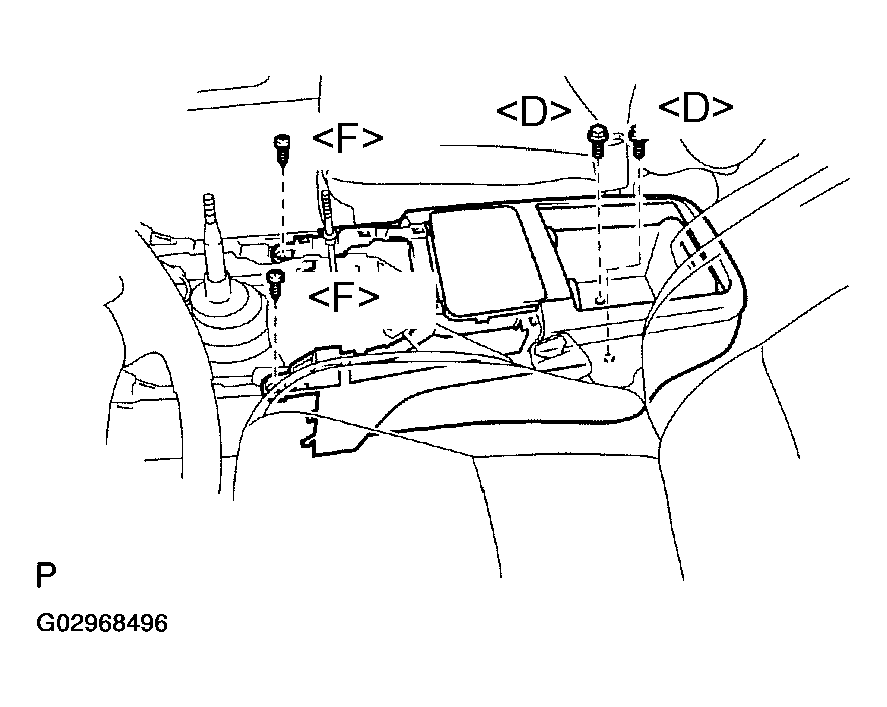

- Remove the 2 bolts < D >, the 2 screws < F > and the RR console box assy.
- REMOVE CONSOLE BOX INSERT FRONT NO. 2
- Disengage the 2 claws.
- Pull the console box insert front No. 2 rearward to remove it.
- REMOVE CONSOLE BOX INSERT
- REMOVE CONSOLE UPPER PANEL GARNISH FRONT

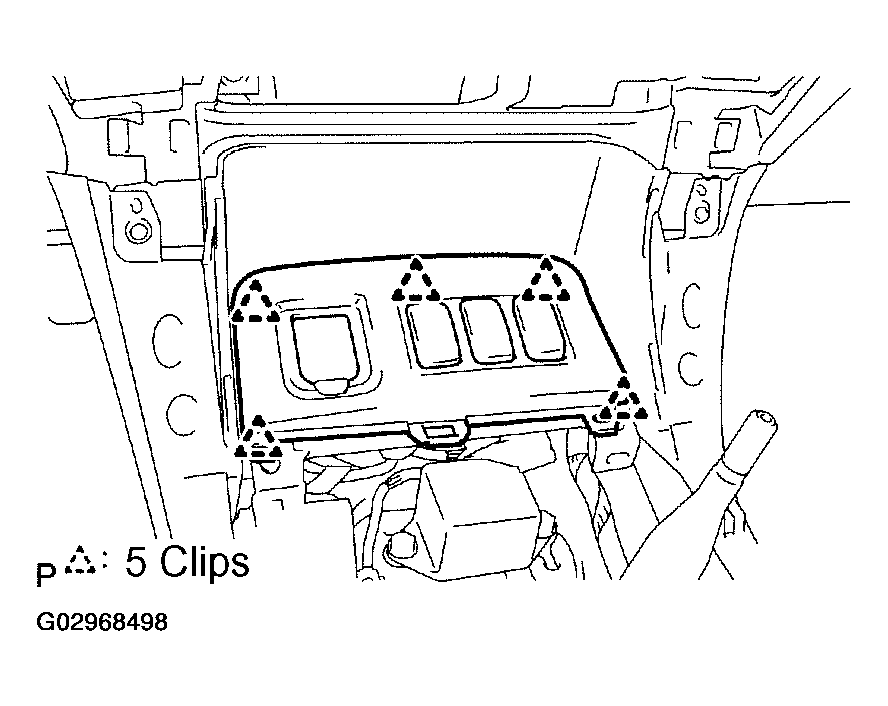

- Disengage the 5 clips and remove the console upper panel garnish front, then disconnect the connectors.
- REMOVE CONSOLE BOX LOWER
- Remove the 2 bolts < D >.
- Remove the 2 screws < F > and the console box lower.
- REMOVE STEERING WHEEL COVER LOWER NO. 2
- REMOVE STEERING WHEEL COVER LOWER NO. 3
- REMOVE HORN BUTTON ASSY (SEE REPLACEMENT )

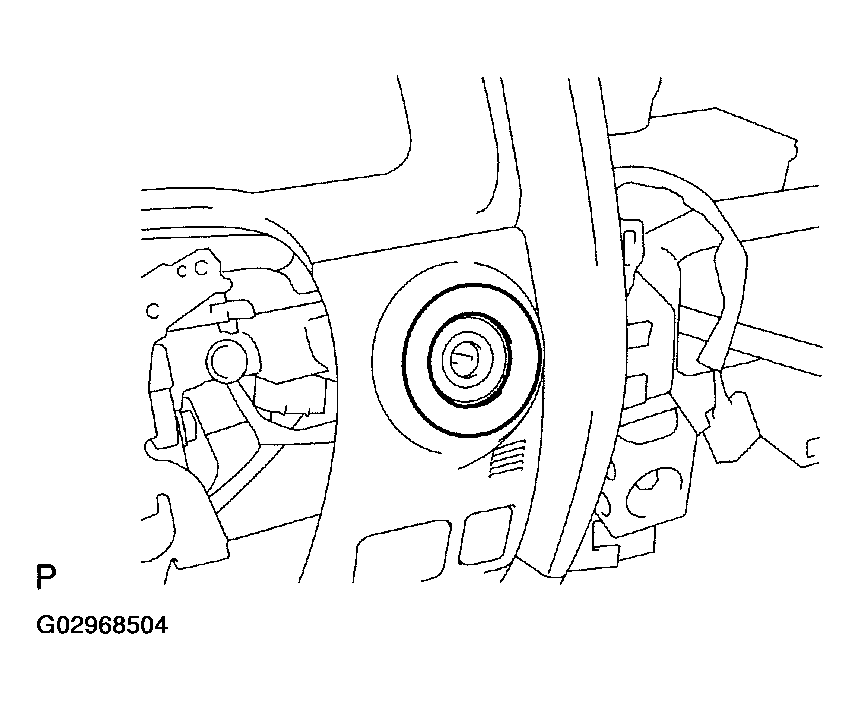

- REMOVE STEERING WHEEL ASSY (SEE OVERHAUL
)
SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)
- REMOVE STEERING COLUMN COVER (SEE OVERHAUL )
- REMOVE TURN SIGNAL SWITCH ASSY W/SPIRAL CABLE SUB-ASSY (SEE OVERHAUL )
- REMOVE FRONT DOOR SCUFF PLATE LH (SEE REPLACEMENT )
- REMOVE FRONT DOOR SCUFF PLATE RH (SEE REPLACEMENT )
- REMOVE FRONT FLOOR FOOTREST

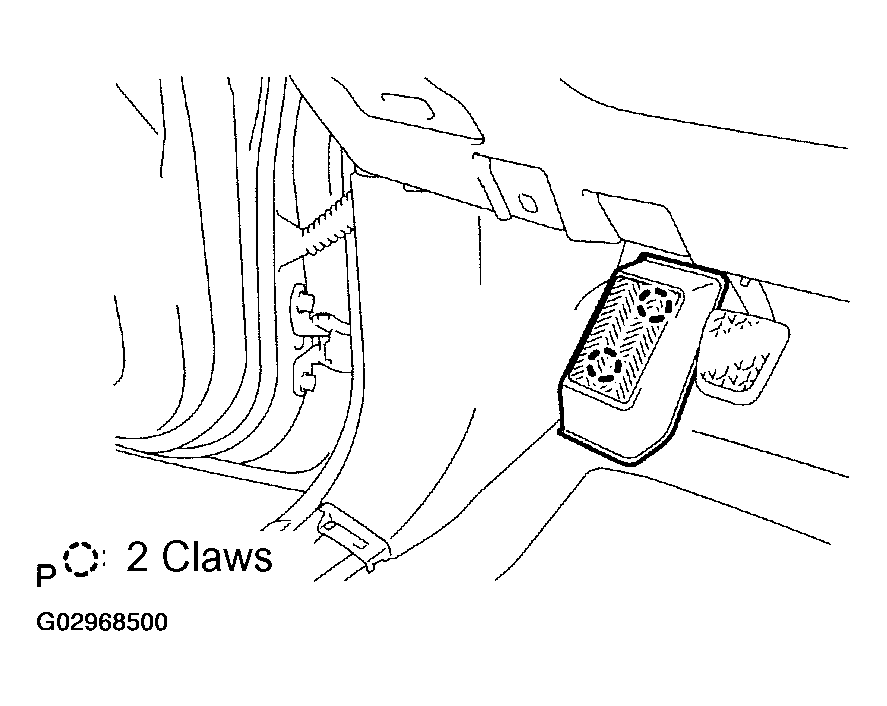

- Disengage the 2 claws and remove the front floor footrest.

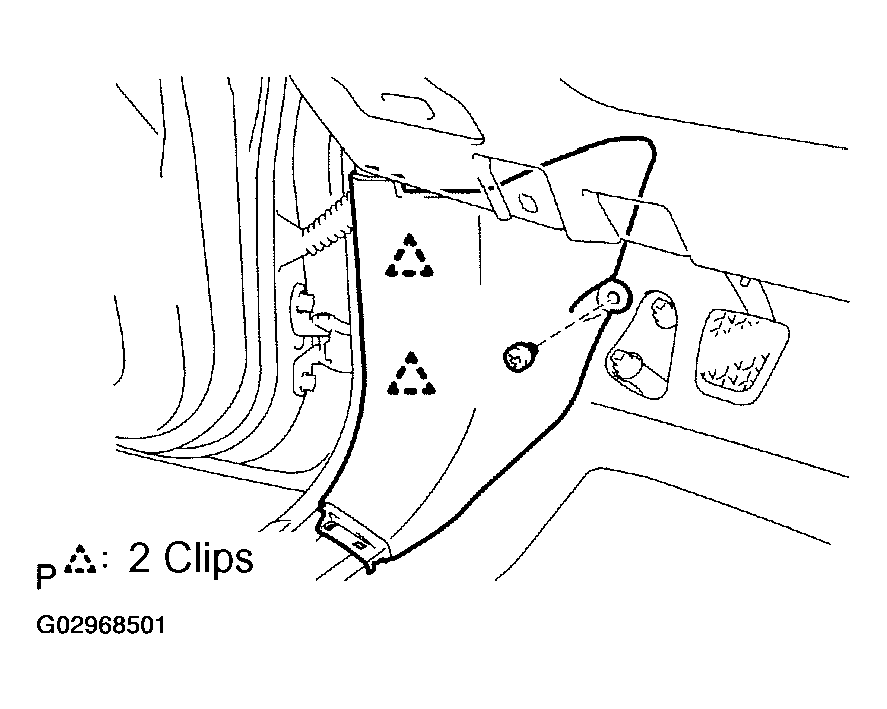

- REMOVE COWL SIDE TRIM BOARD LH
- Remove the clip.
- Disengage the 2 clips and remove the cowl side trim board LH.
- REMOVE COWL SIDE TRIM BOARD RH
- REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 1

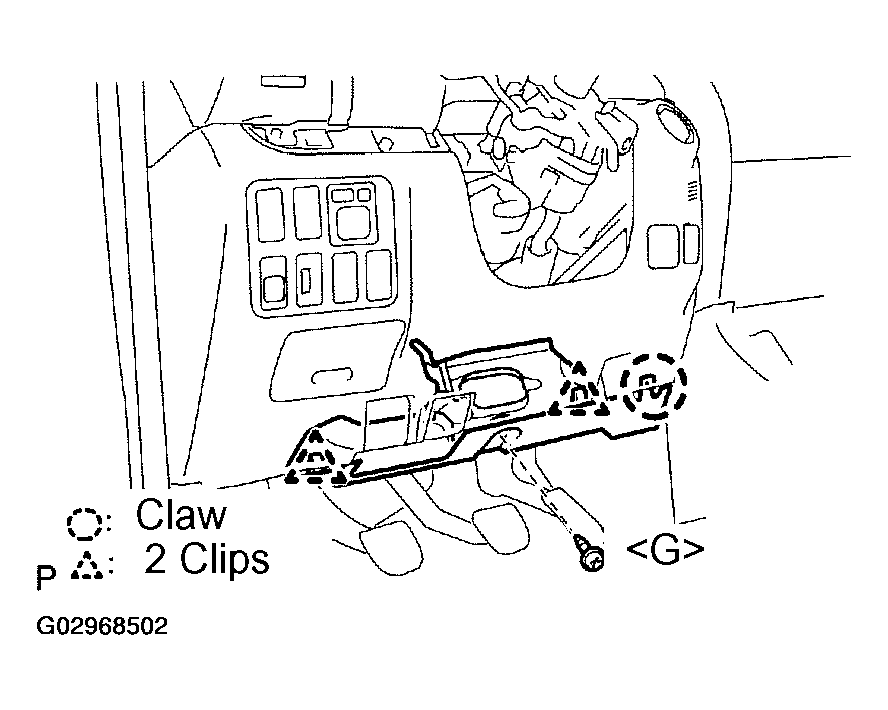

- Remove the screw < G >.
- Disengage the 2 clips and the claw, and then remove the instrument panel under cover sub-assy No. 1.
- REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

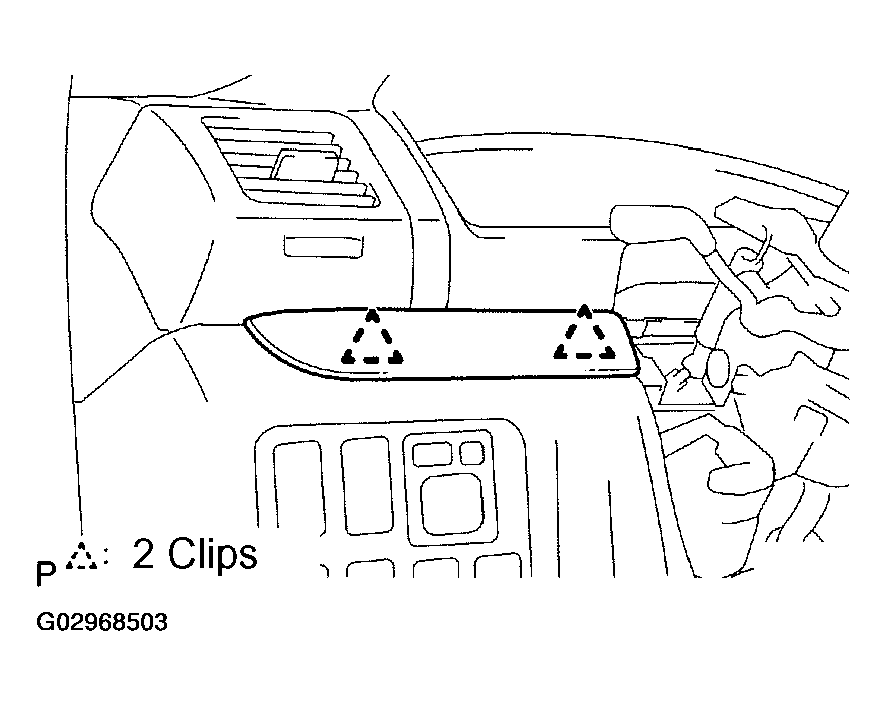

- Disengage the 2 clips and remove the instrument cluster finish panel ornament.
- REMOVE SWITCH HOLE BASE NO. 1
- REMOVE INSTRUMENT PANEL FINISH PLATE
- Remove the instrument panel finish plate.
- REMOVE INSTRUMENT PANEL FINISH LOWER PANEL RH

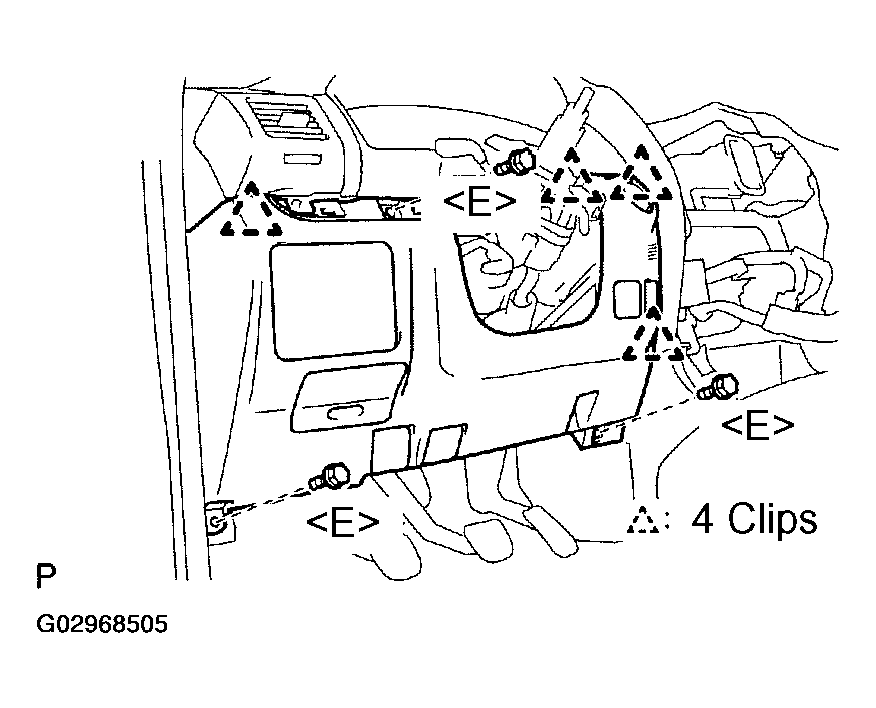

- Remove the 3 bolts < E >.
- Disconnect the hood lock control cable assy and the fuel lid lock control cable sub-assy.
- Disengage the 4 clips.
- Disconnect the connectors and remove the instrument panel finish lower panel RH.
- REMOVE INSTRUMENT PANEL LOWER LH
- Remove the 3 bolts E and instrument panel lower LH.
- REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY

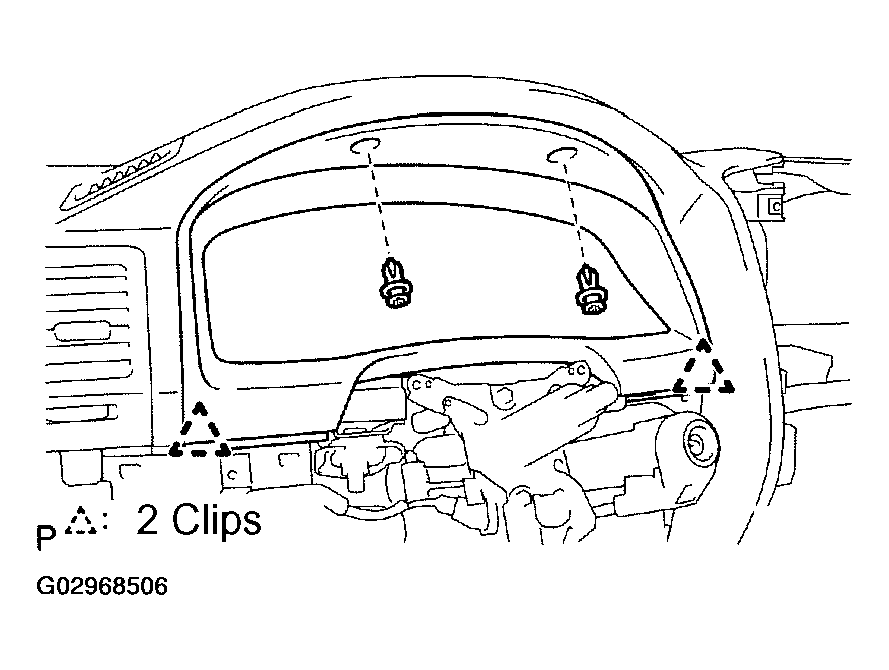

- Remove the 2 clips.
- Disengage the 2 clips and remove the instrument cluster finish panel sub-assy.
- REMOVE COMBINATION METER ASSY

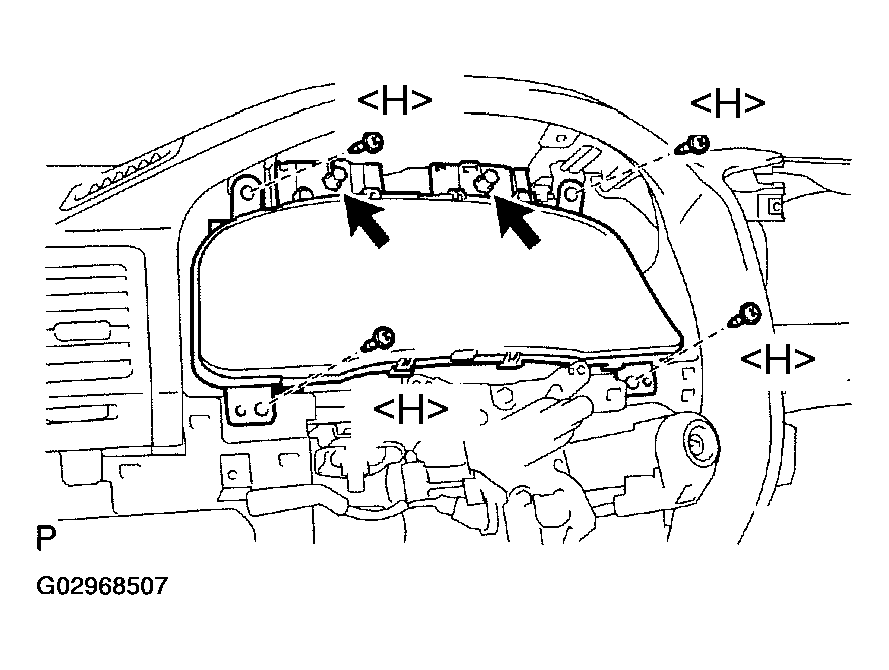

- Remove the 4 screws < H >.
- Loosen the 2 bolts and remove the combination meter assy.
- REMOVE INSTRUMENT PANEL REGISTER ASSY NO. 1

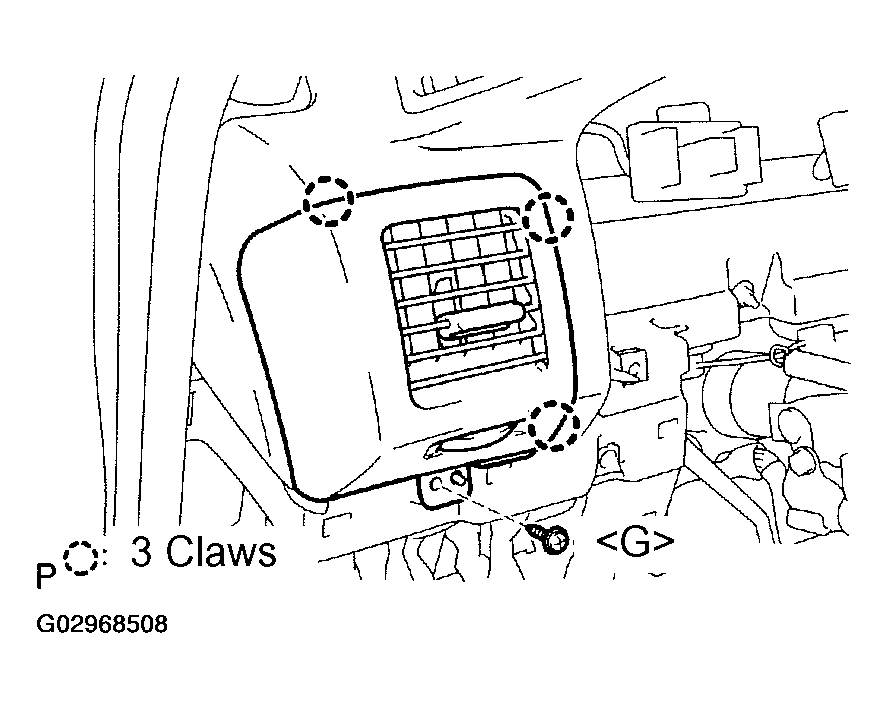

- Remove the screw < G >.
- Disengage the 3 claws and remove the instrument panel register assy No. 1.
- REMOVE INSTRUMENT PANEL UNDER COVER NO. 2
- Remove the screw < G >.
- Disengage the 3 clips and remove the instrument panel under cover No. 2.
- REMOVE INSTRUMENT PANEL ORNAMENT
- Disengage the 4 clips and remove the instrument panel ornament.
- DISCONNECT PASSENGER AIRBAG CONNECTOR (SEE REPLACEMENT )
- REMOVE GLOVE COMPARTMENT DOOR ASSY

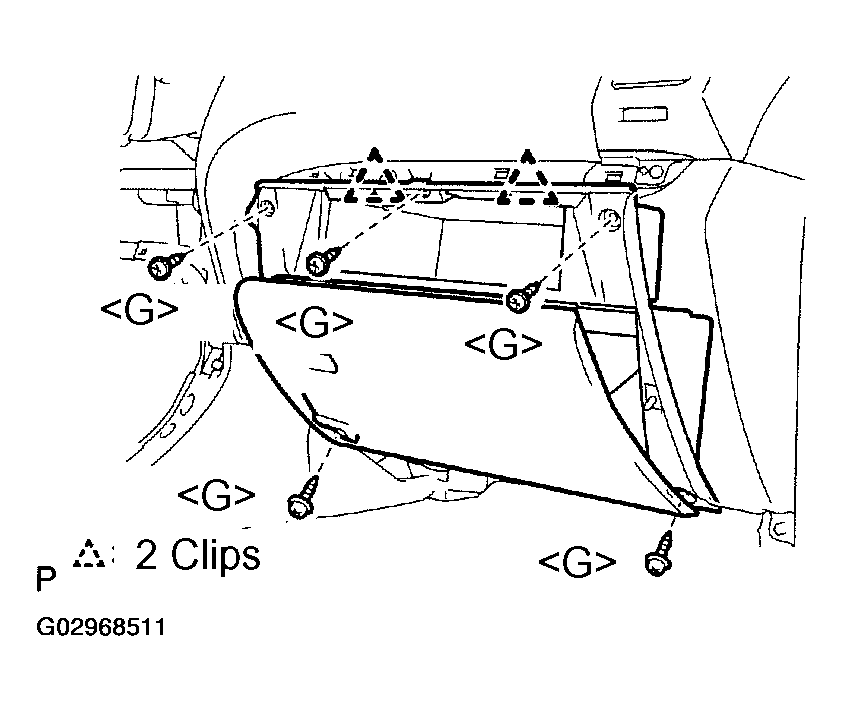

- Remove the 5 screws < G >.
- Disengage the 2 clips and remove the glove compartment door assy, then disconnect the connectors.
- REMOVE INSTRUMENT PANEL REGISTER ASSY NO. 2
- REMOVE DISC PLAYER CHANGER W/ BRACKET (W/ DISC PLAYER CHANGER) (SEE DISC PLAYER CONTROLLER )
- REMOVE ASSIST GRIP ASSY (SEE REPLACEMENT )
- REMOVE FRONT PILLAR GARNISH LH (SEE REPLACEMENT )
- REMOVE FRONT PILLAR GARNISH RH (SEE REPLACEMENT )
- REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/DEFROSTER NOZZLE DUCT

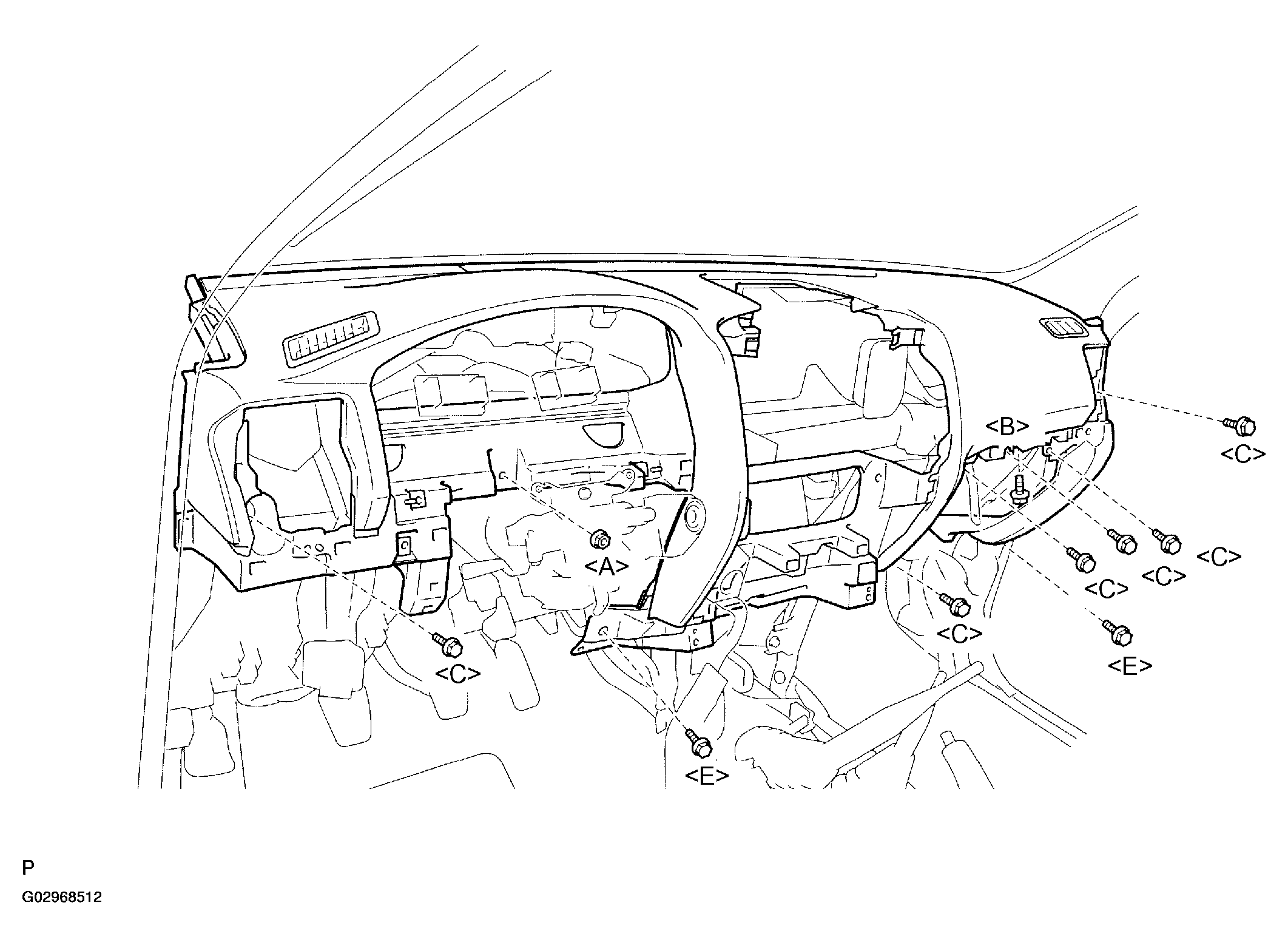

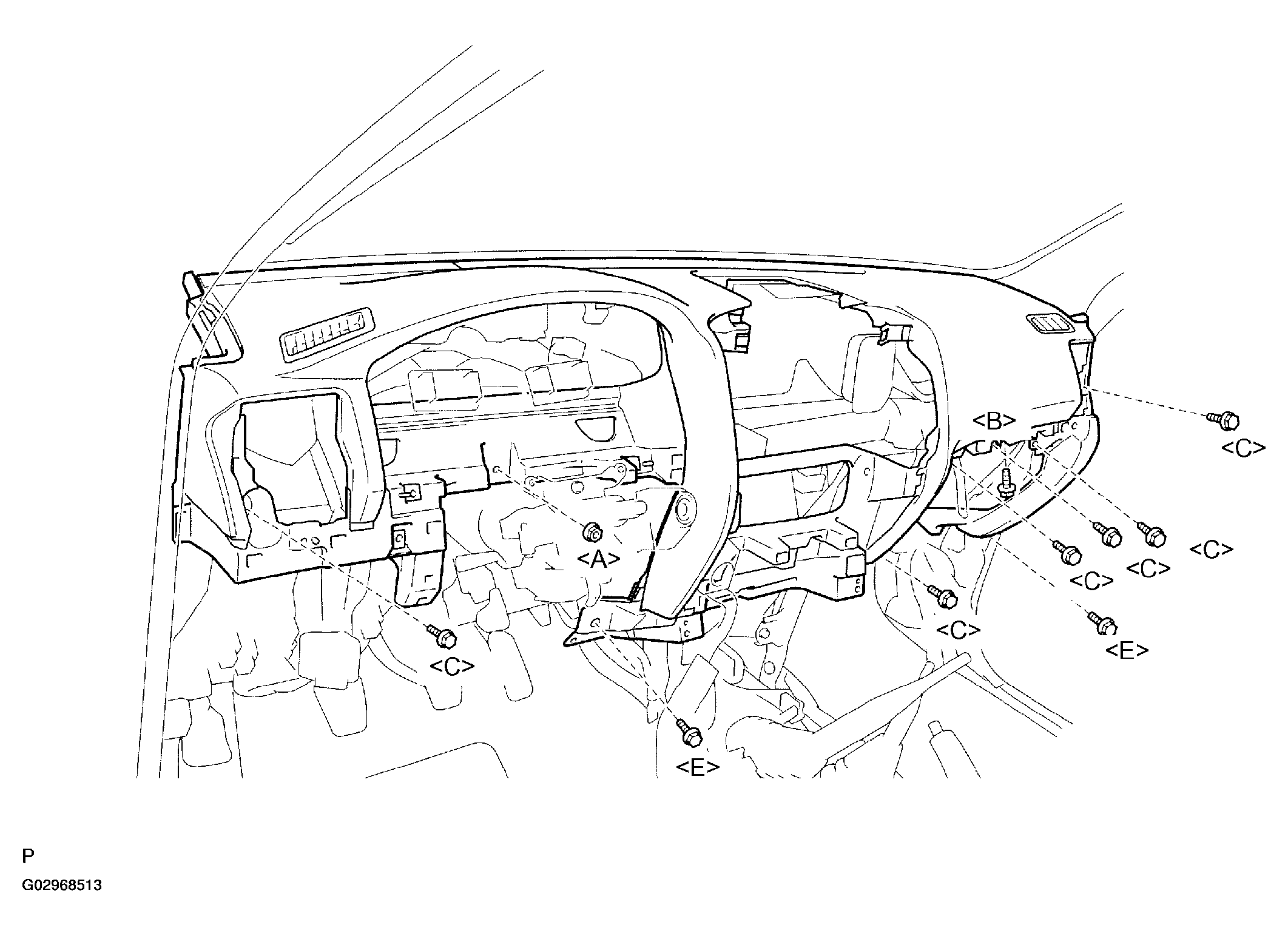

- Remove the 9 bolts < C > < E > and nut < A >.
- Disconnect the connectors.
- Remove the instrument panel safety pad sub-assy w/ defroster nozzle duct.
- REMOVE DEFROSTER NOZZLE ASSY
- Remove the 5 screws < I > and defroster nozzle assy.
- REMOVE HEATER TO REGISTER DUCT NO. 3
- Remove the 2 screws < I > and heater to register duct No. 3.
- REMOVE SIDE DEFROSTER NOZZLE DUCT NO. 1
- REMOVE SIDE DEFROSTER NOZZLE DUCT NO. 2
- REMOVE AUTOMATIC LIGHT CONTROL SENSOR
- REMOVE INSTRUMENT PANEL WIRE NO. 3
- REMOVE CONNECTOR NO. 2 HOLDER
- REMOVE INSTRUMENT PANEL SPEAKER PANEL SUB-ASSY NO. 1 (W/ 12 SPEAKER)
- REMOVE STEREO COMPONENT SPEAKER ASSY FRONT (W/ 12 SPEAKER) (SEE STEREO COMPONENT SPEAKER ASSY FRONT )
- REMOVE ANTENNA CORD SUB-ASSY (SEE ANTENNA CORD SUB-ASSY )
- REMOVE NAVIGATION ANTENNA ASSY (W/ NAVIGATION SYSTEM) (SEE NAVIGATION ANTENNA ASSY )
- REMOVE INSTR PNL PASS L/DOOR AIR BAG ASSY (SEE REPLACEMENT )
- REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY
- INSTALL INSTR PNL PASS L/DOOR AIR BAG ASSY (SEE REPLACEMENT )
- INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/DEFROSTER NOZZLE DUCT
- Using a torque wrench, install the bolt.
Torque: 20 N.m (204 kgf.cm, 14 ft.lbf)
- Using a torque wrench, install the bolt.
- INSTALL COMBINATION METER ASSY

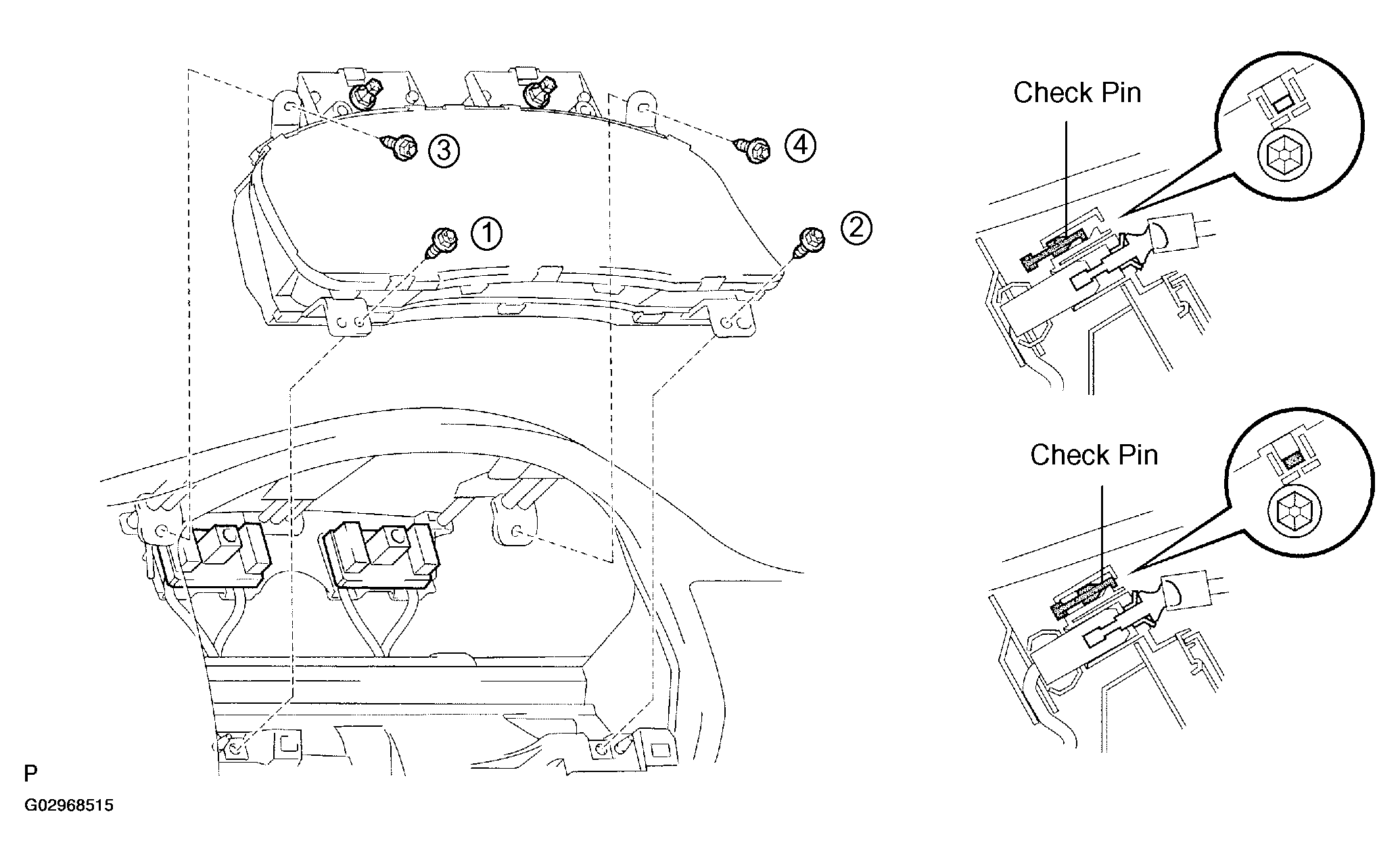

- Pull the check pin backward while pressing the check pin with a flat-head screwdriver as shown in Fig 26.
- Check that the wire harness connector is engaged in the instrument panel safety pad installation position.
- Install the 4 screws in order as shown in Fig 27.
- Tighten the 2 connector fitting bolts until a clicking sound can be heard.
- After tightening, check that the check pin protrudes.
- ADJUST SPIRAL CABLE SUB-ASSY (SEE SPIRAL CABLE SUB-ASSY )
- INSTALL STEERING WHEEL ASSY (SEE OVERHAUL )
- INSTALL HORN BUTTON ASSY (SEE REPLACEMENT )
- INSPECT HORN BUTTON ASSY (SEE ON-VEHICLE INSPECTION )
- INCLINATION SENSOR ZERO DEGREE CORRECTION (See OVERHAUL )
- INSPECT SRS WARNING LIGHT (SEE HOW TO PROCEED WITH TROUBLESHOOTING )
