Fuel Pump ASSY (2UZ-FE): Components

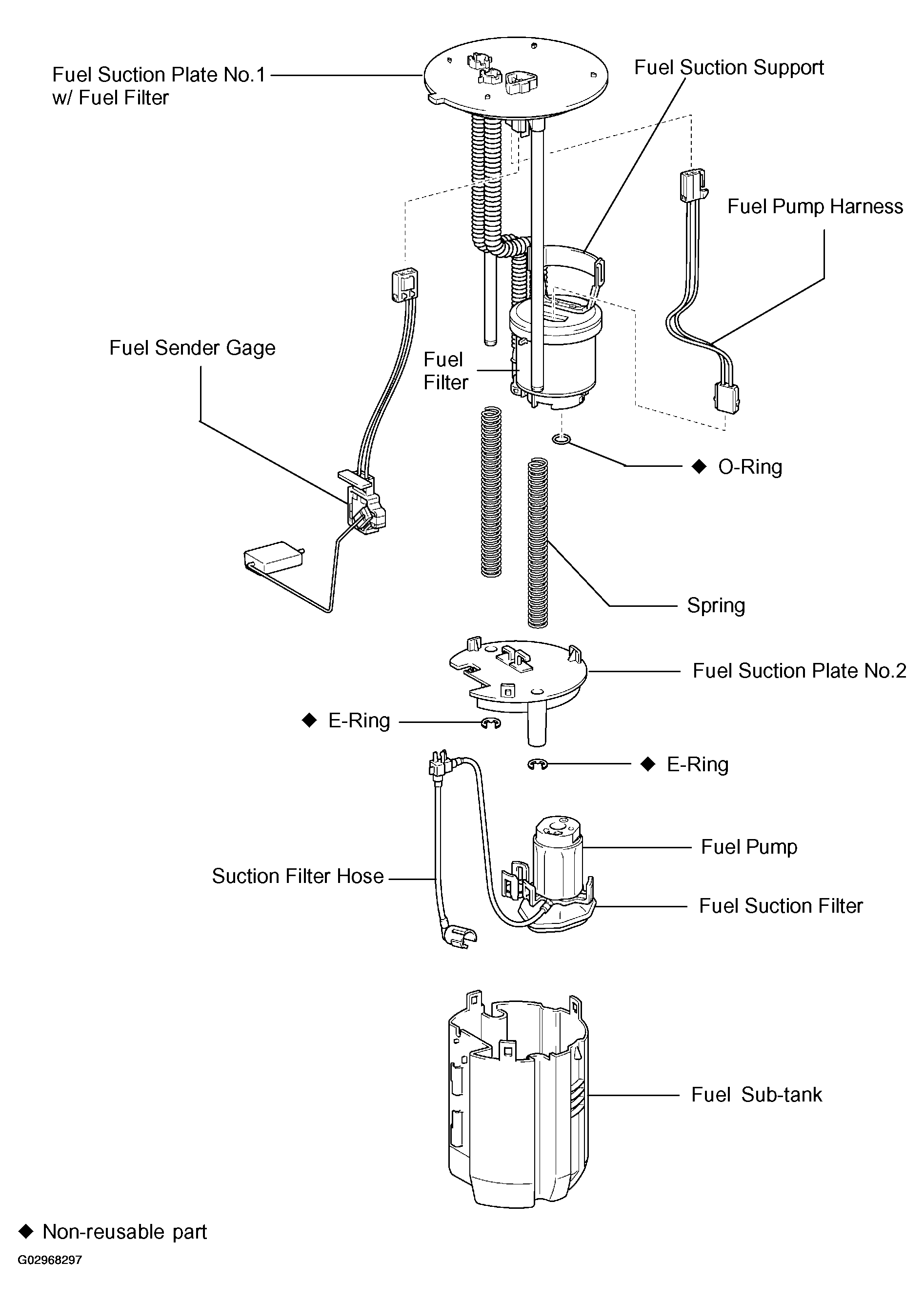

Fig 1: Identifying Fuel Pump Assy Components & Replacements (2UZ-FE)
G02968297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
