Fuel Tank ASSY (2UZ-FE): Components

Fig 1: Identifying Fuel Tank Assy Components & Replacements (2UZ-FE - 1 Of 2)
G02968272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

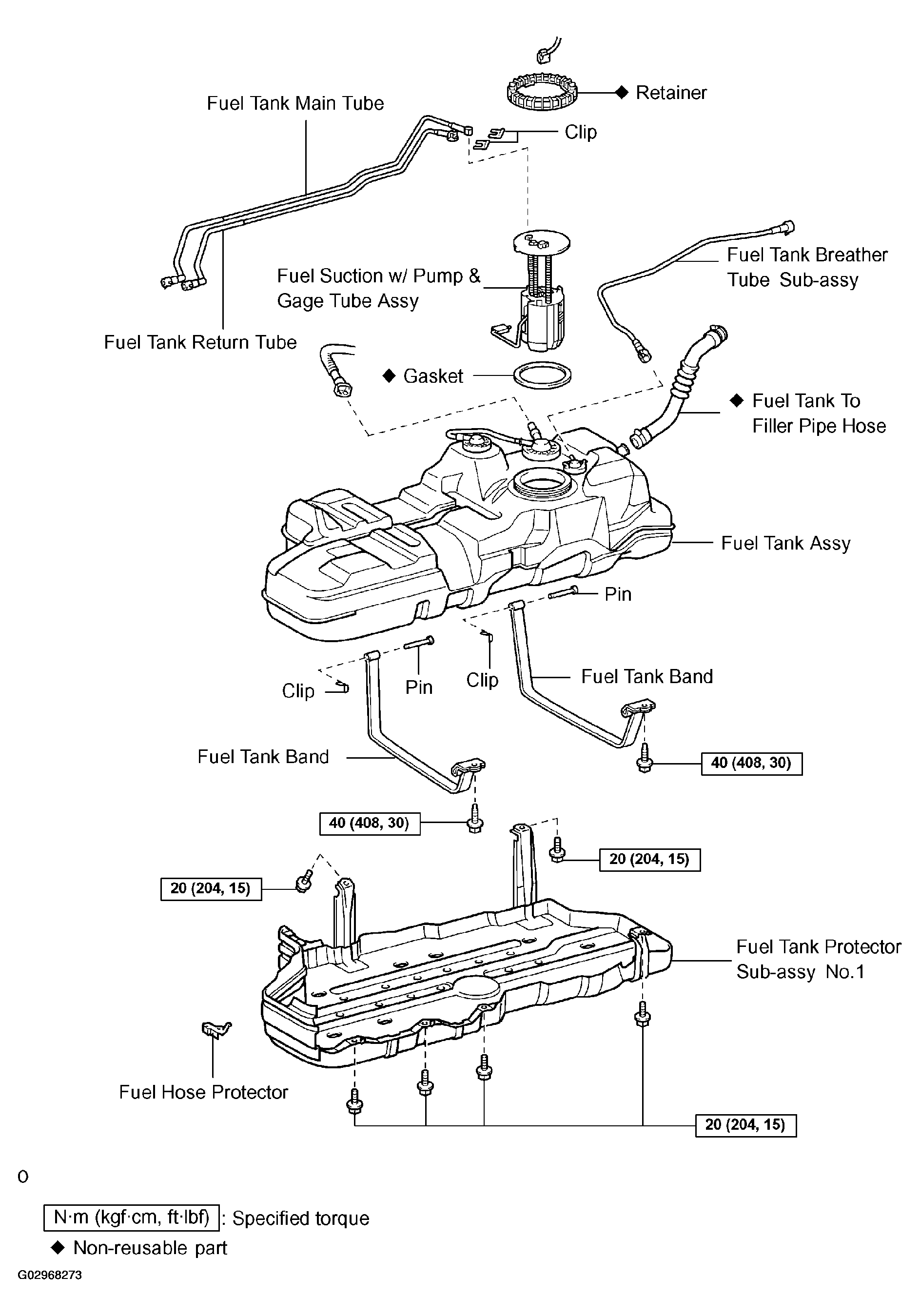

Fig 2: Identifying Fuel Tank Assy Components & Replacements (2UZ-FE - 2 Of 2)
G02968273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
