Power Steering Link ASSY: Components

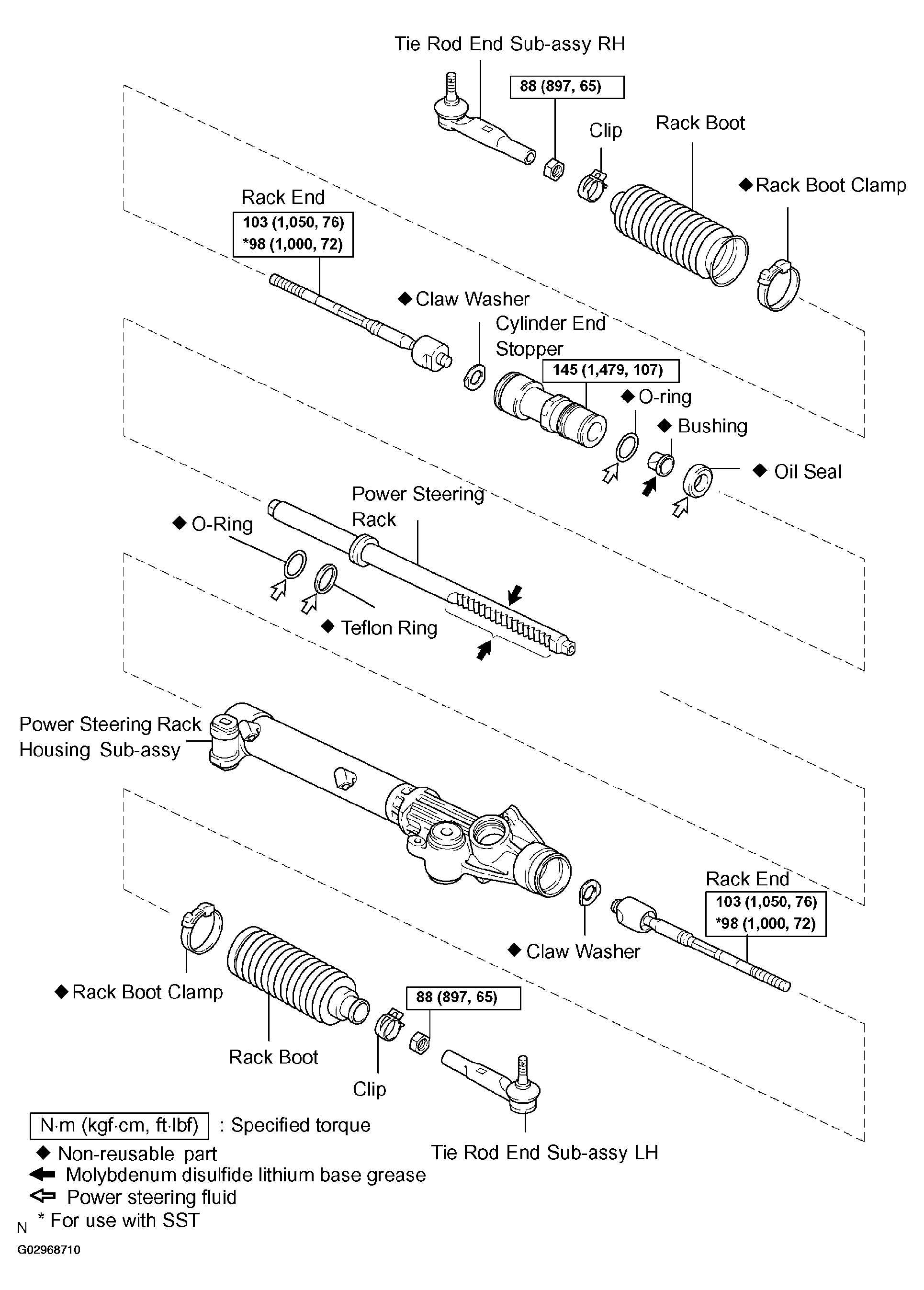

Fig 1: Identifying Power Steering Link Assy Components & Replacements (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

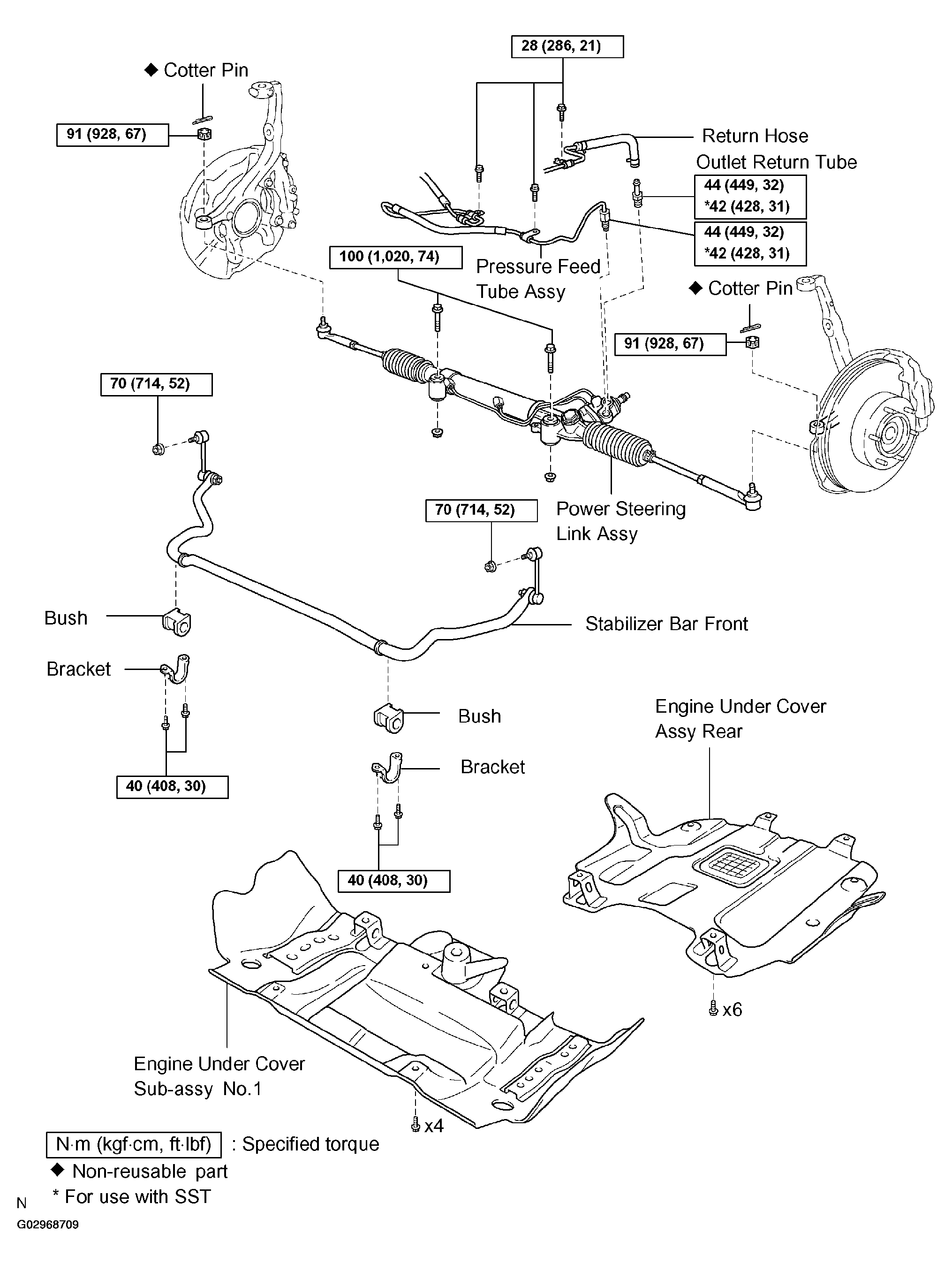

Fig 2: Identifying Power Steering Link Assy Components & Replacements (2 Of 3)

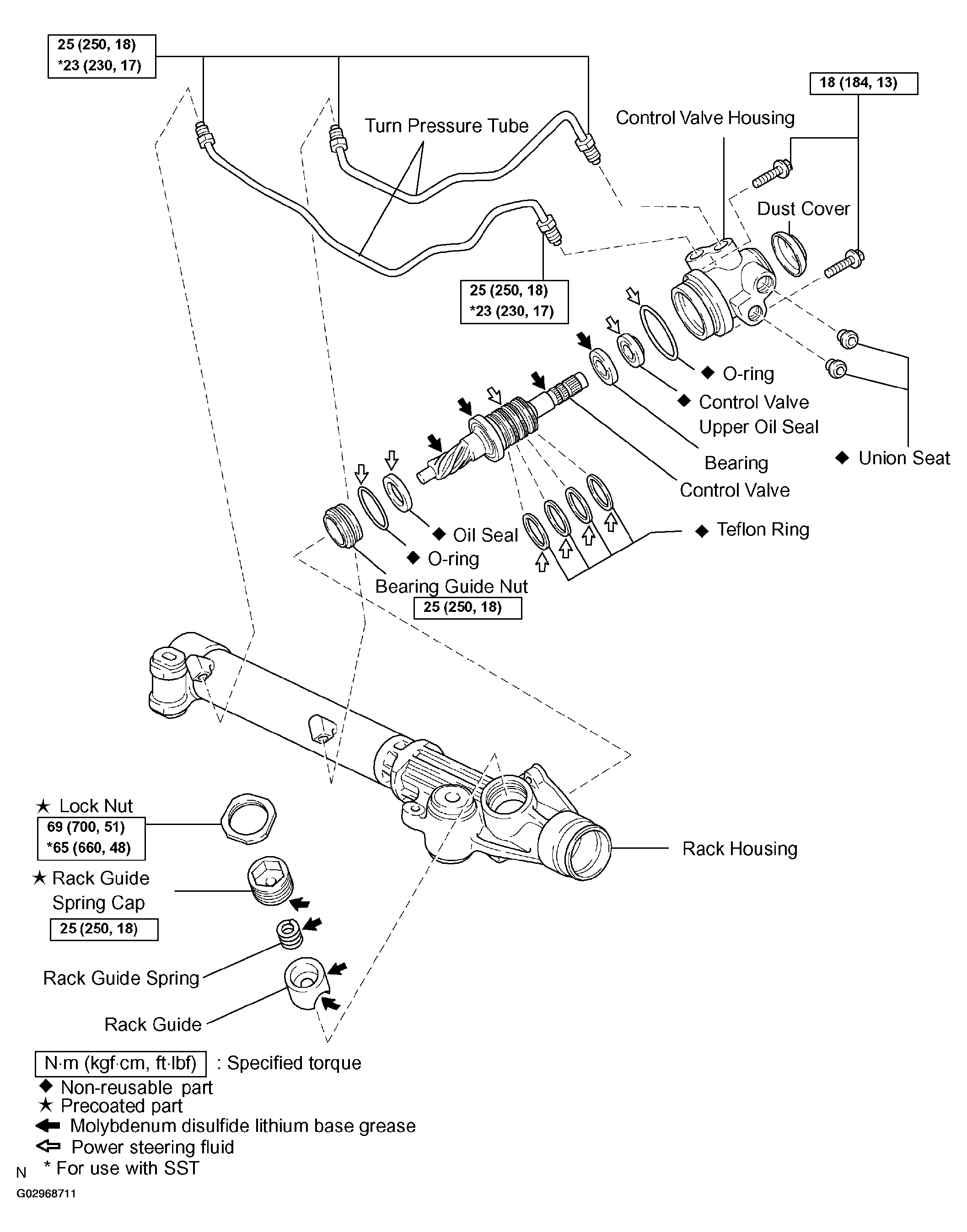

Fig 3: Identifying Power Steering Link Assy Components & Replacements (3 Of 3)
