Front Stabilizer (KDSS)
›
Components
Front Stabilizer (KDSS): Components

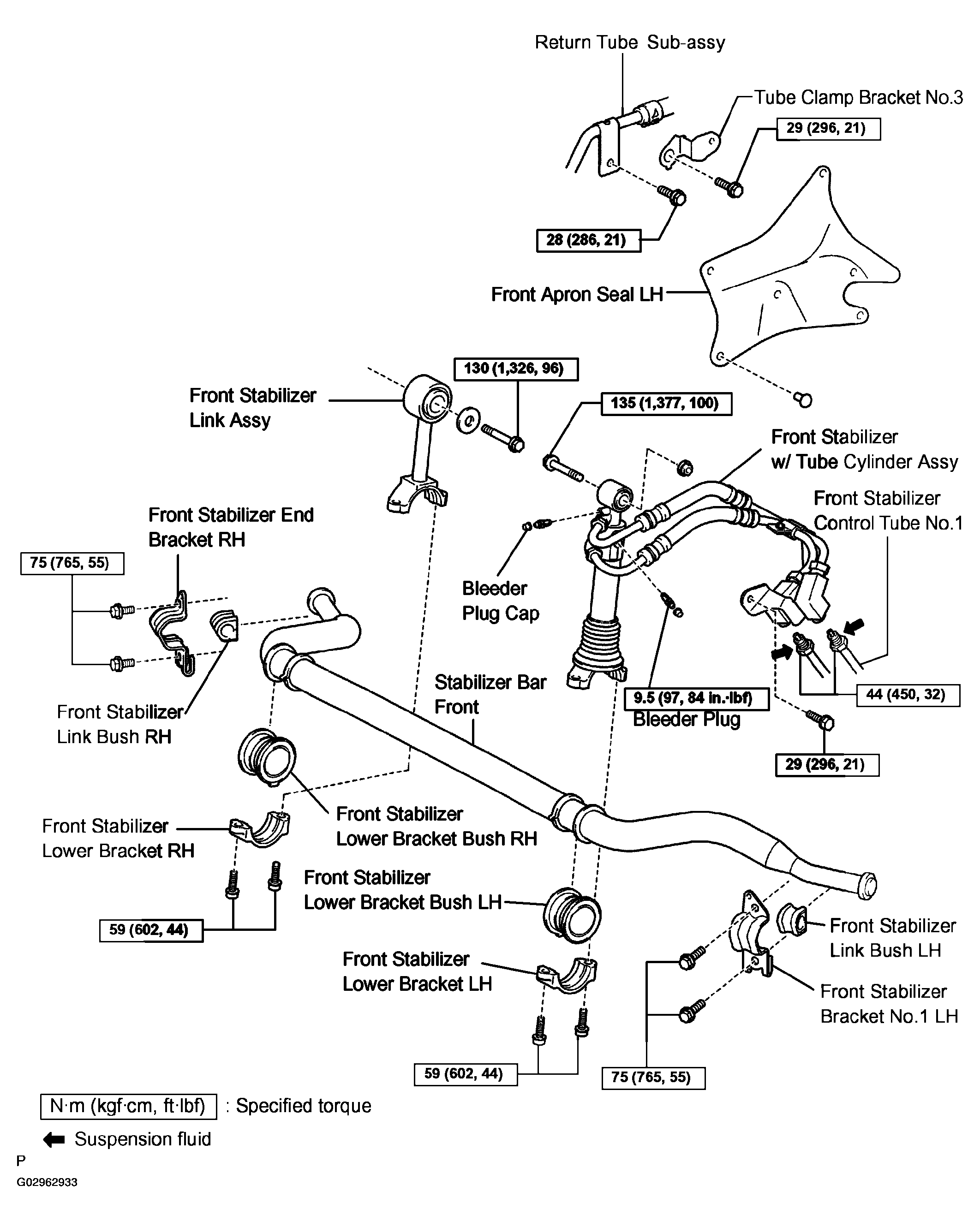

Fig 1: Identifying Front Stabilizer Components & Replacements (KDSS)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
