Rear Stabilizer (KDSS): Components

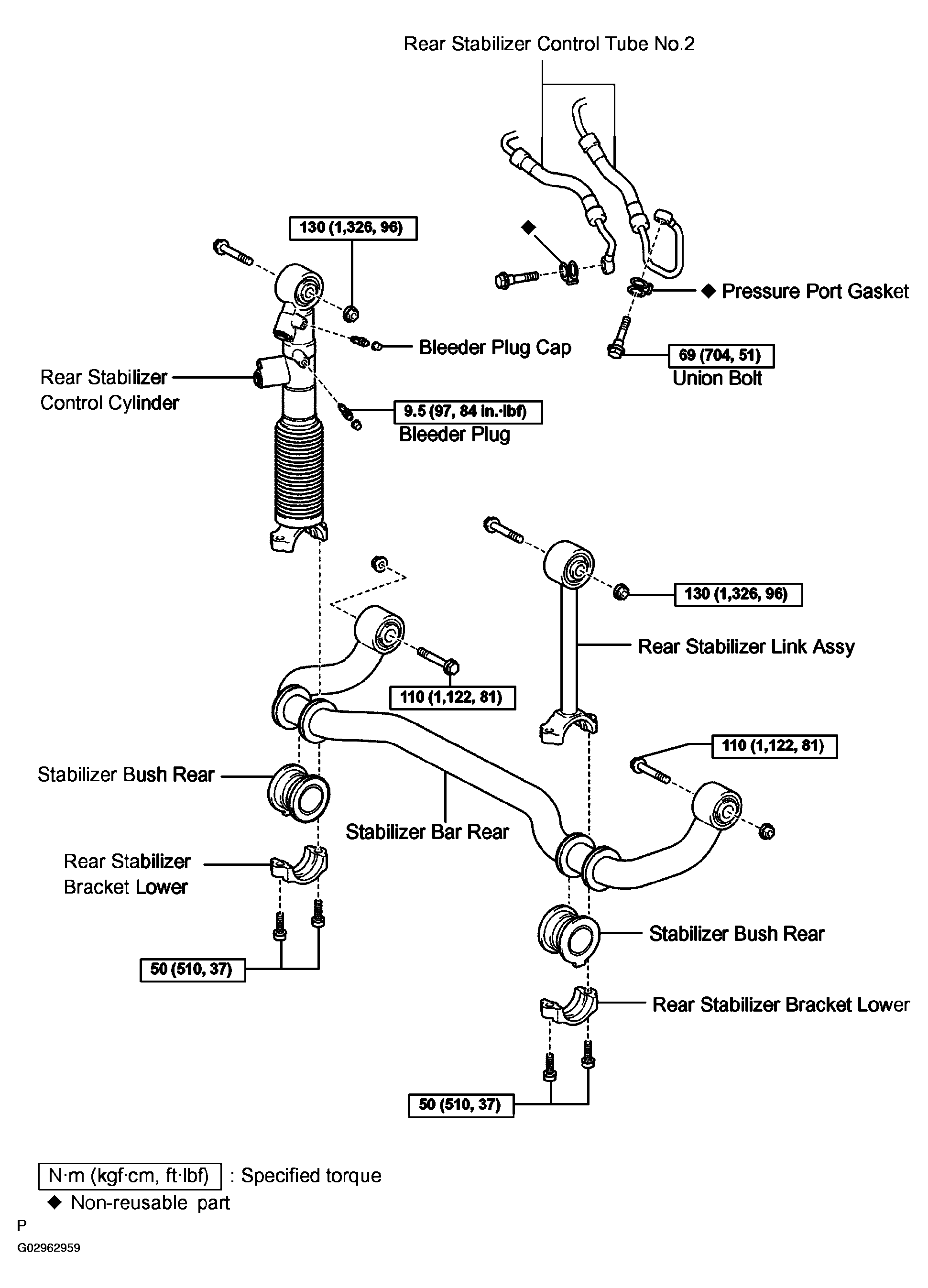

Fig 1: Identifying Rear Stabilizer Components & Replacements (KDSS)
G02962959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
