Stabilizer Control W/Bracket Valve ASSY (KDSS): Components

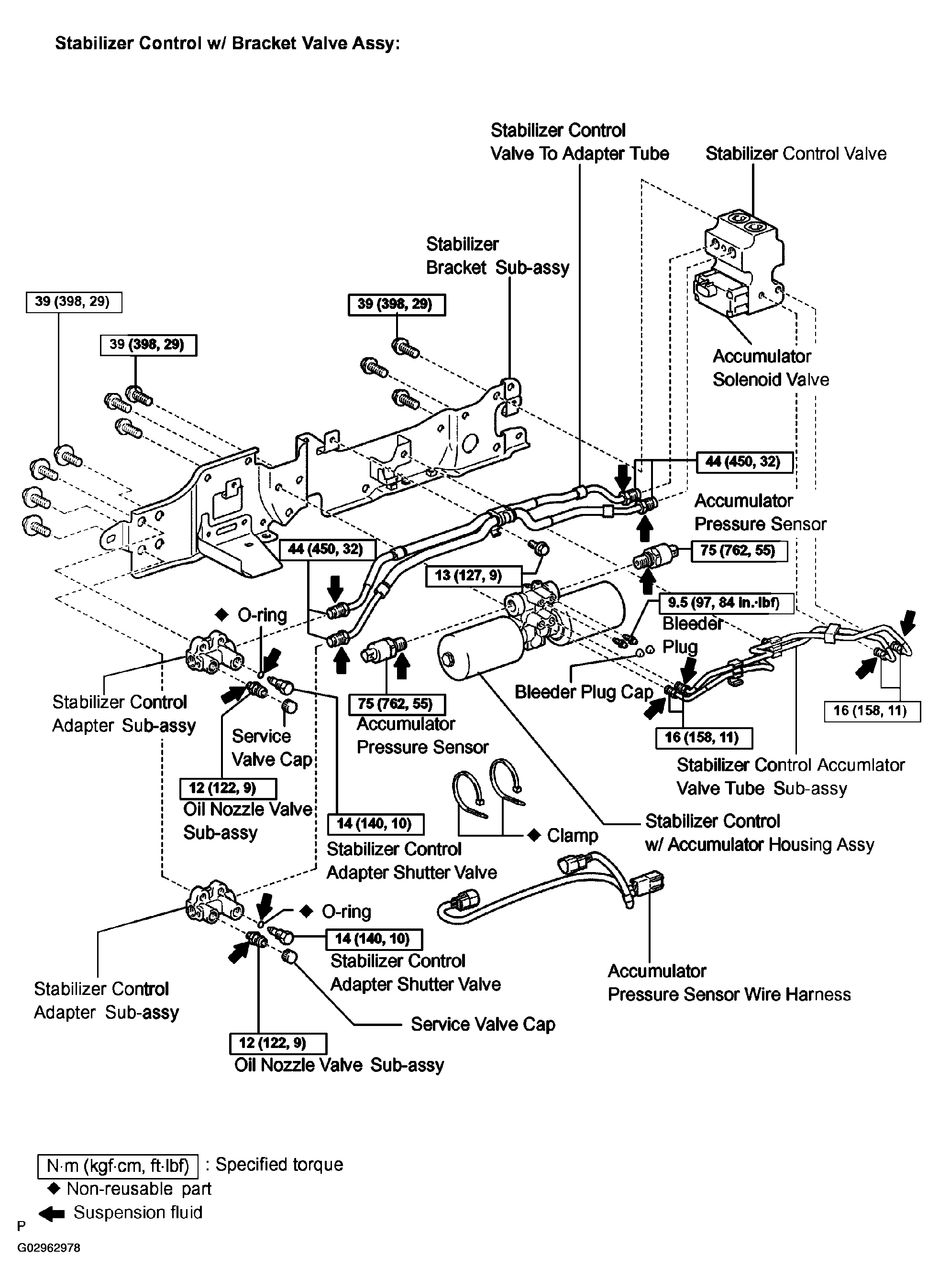

Fig 1: Identifying Stabilizer Control With Bracket Valve Assy Components & Replacements (KDSS) (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

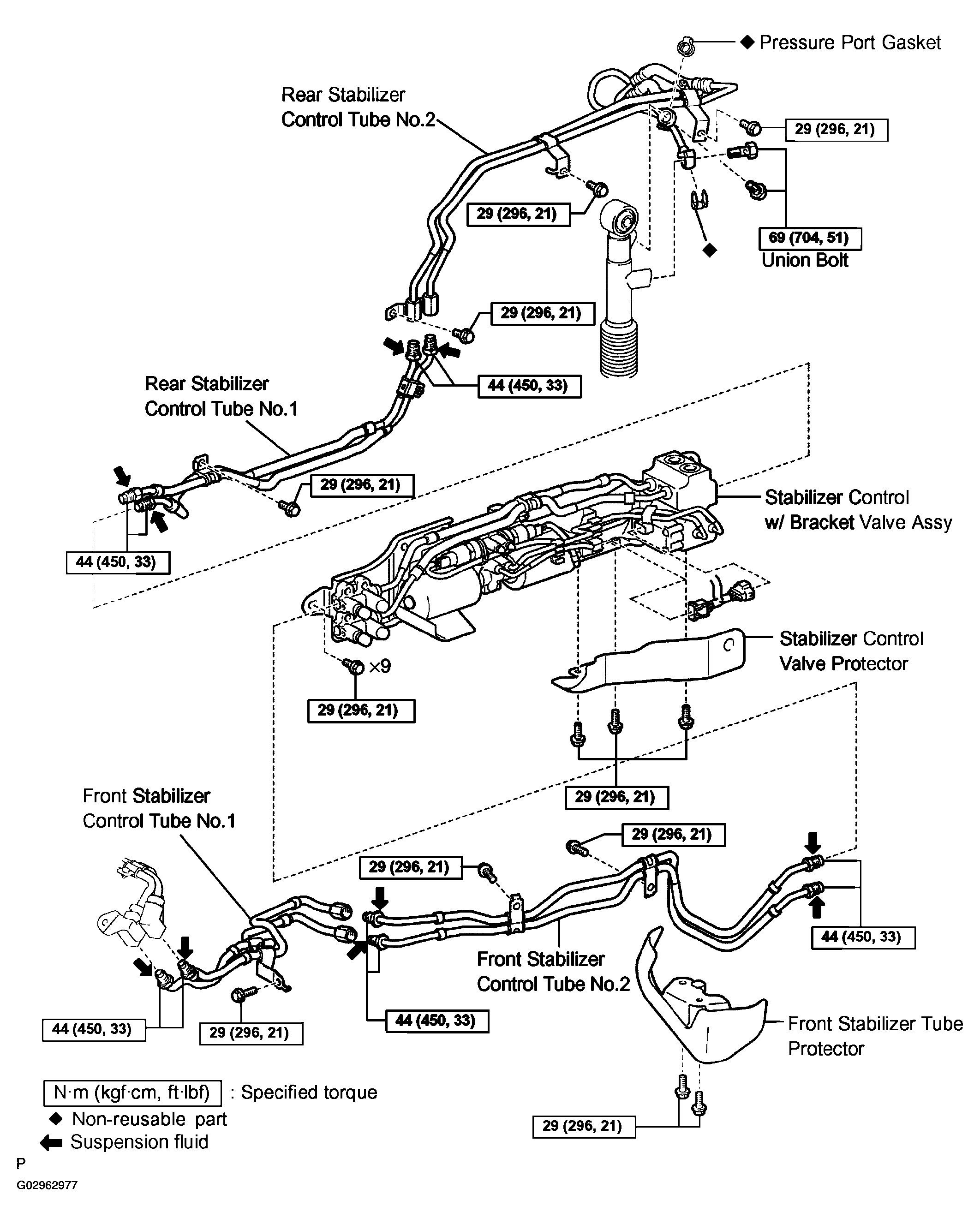

Fig 2: Identifying Stabilizer Control With Bracket Valve Assy Components & Replacements (KDSS) (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
