Data List/Active Test

DATA LIST
HINT:

According to the DATA LIST displayed by the hand-held tester, you can read the value of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as the first step of troubleshooting is one method to shorten labor time.

NOTE: In Fig 1 and Fig 2, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.
1. Warm up the engine.
2. Turn the ignition switch off.
3. Connect the hand-held tester together with the CAN VIM (controller area network vehicle interface module) to the DLC3.
4. Turn the ignition switch to the ON position.
5. Turn on the tester.
6. Select the item "DIAGNOSIS / ENHANCED OBD II / DATA LIST".
7. According to the display on the tester, read the "DATA LIST".

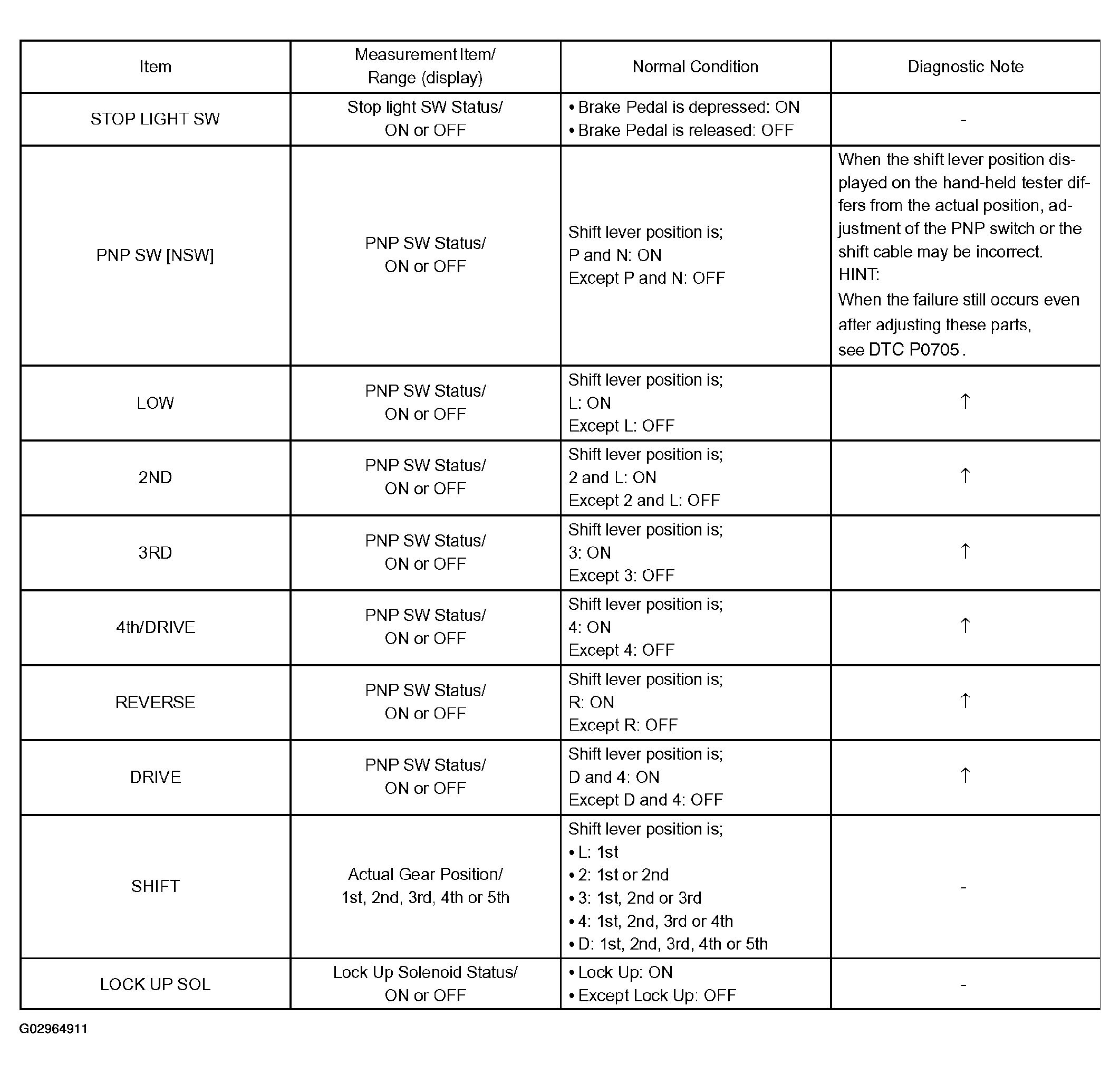

  Fig 1: Data List Table (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

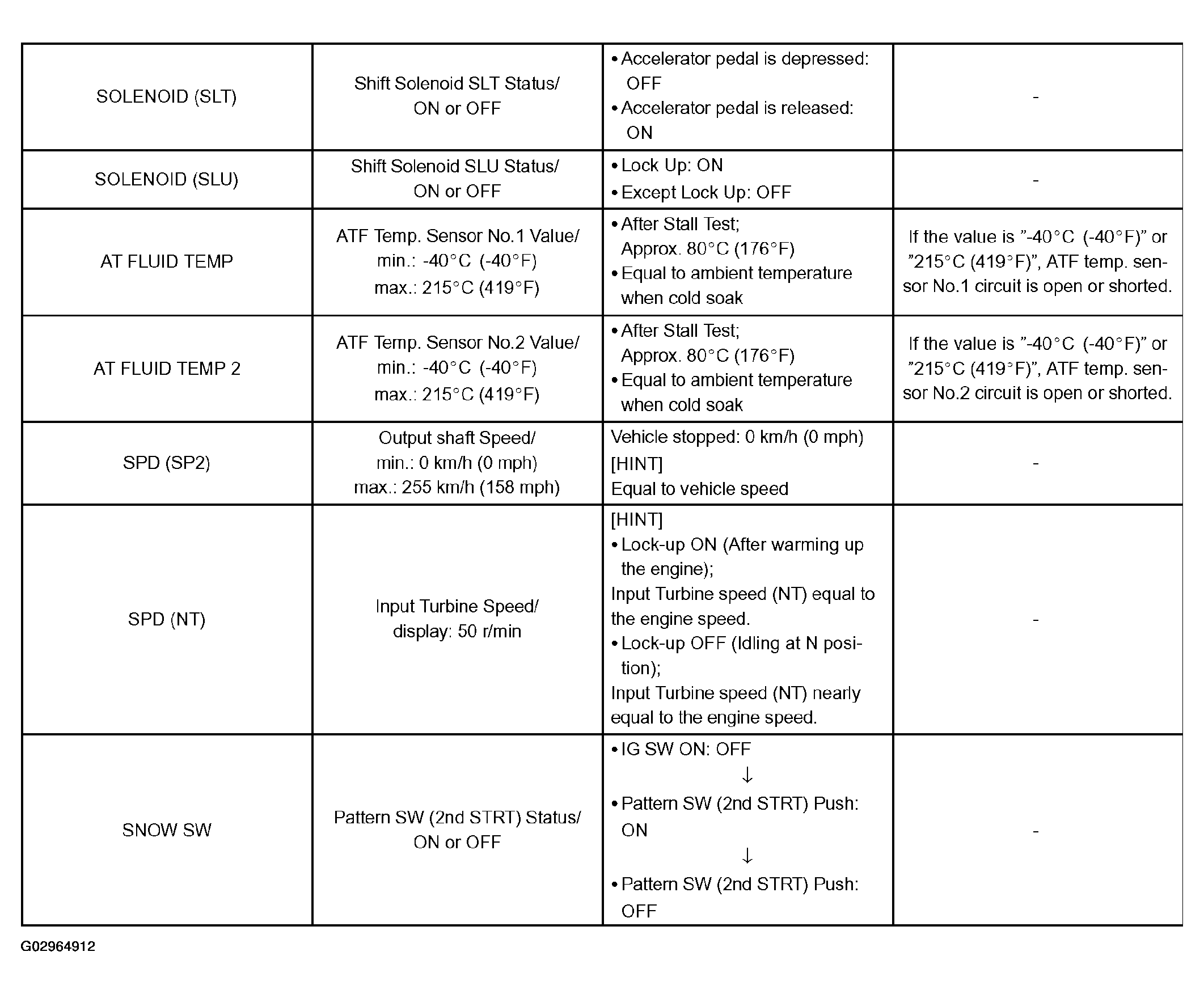

  Fig 2: Data List Table (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ACTIVE TEST
HINT:

Performing the ACTIVE TEST using the hand-held tester allows the relay, VSV, actuator and so on to operate without parts removal. Performing the ACTIVE TEST as the first step of troubleshooting is one method to shorten labor time.

It is possible to display the DATA LIST during the ACTIVE TEST.
1. Warm up the engine.
2. Turn the ignition switch off.
3. Connect the hand-held tester together with the CAN VIM (controller area network vehicle interface module) to the DLC3.
4. Turn the ignition switch to the ON position.
5. Turn on the tester.
6. Select the item "DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST".
7. According to the display on the tester, perform the "ACTIVE TEST".

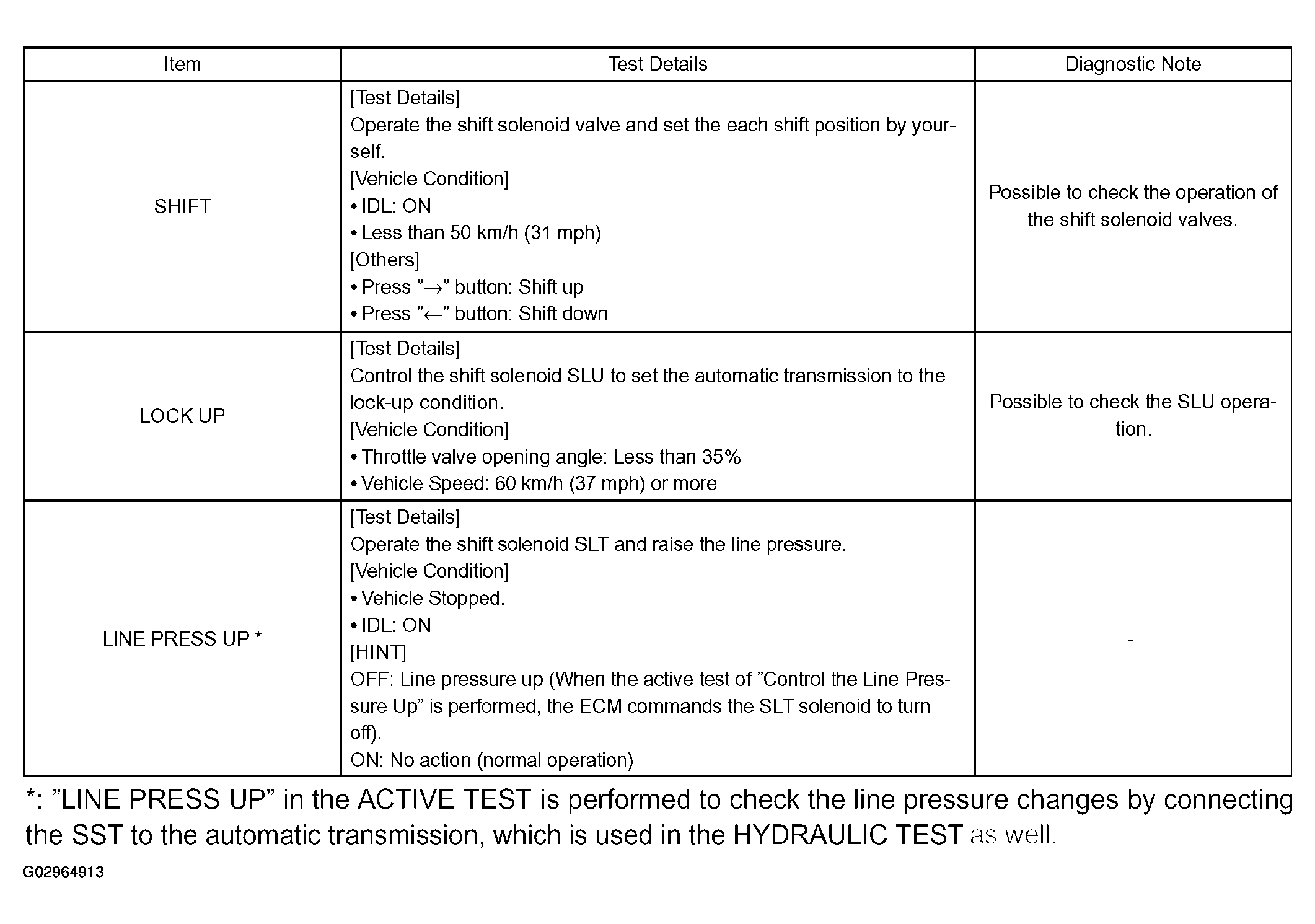

  Fig 3: ACTIVE TEST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  The pressure values in ACTIVE TEST and HYDRAULIC TEST are different from each other.
