System Diagram

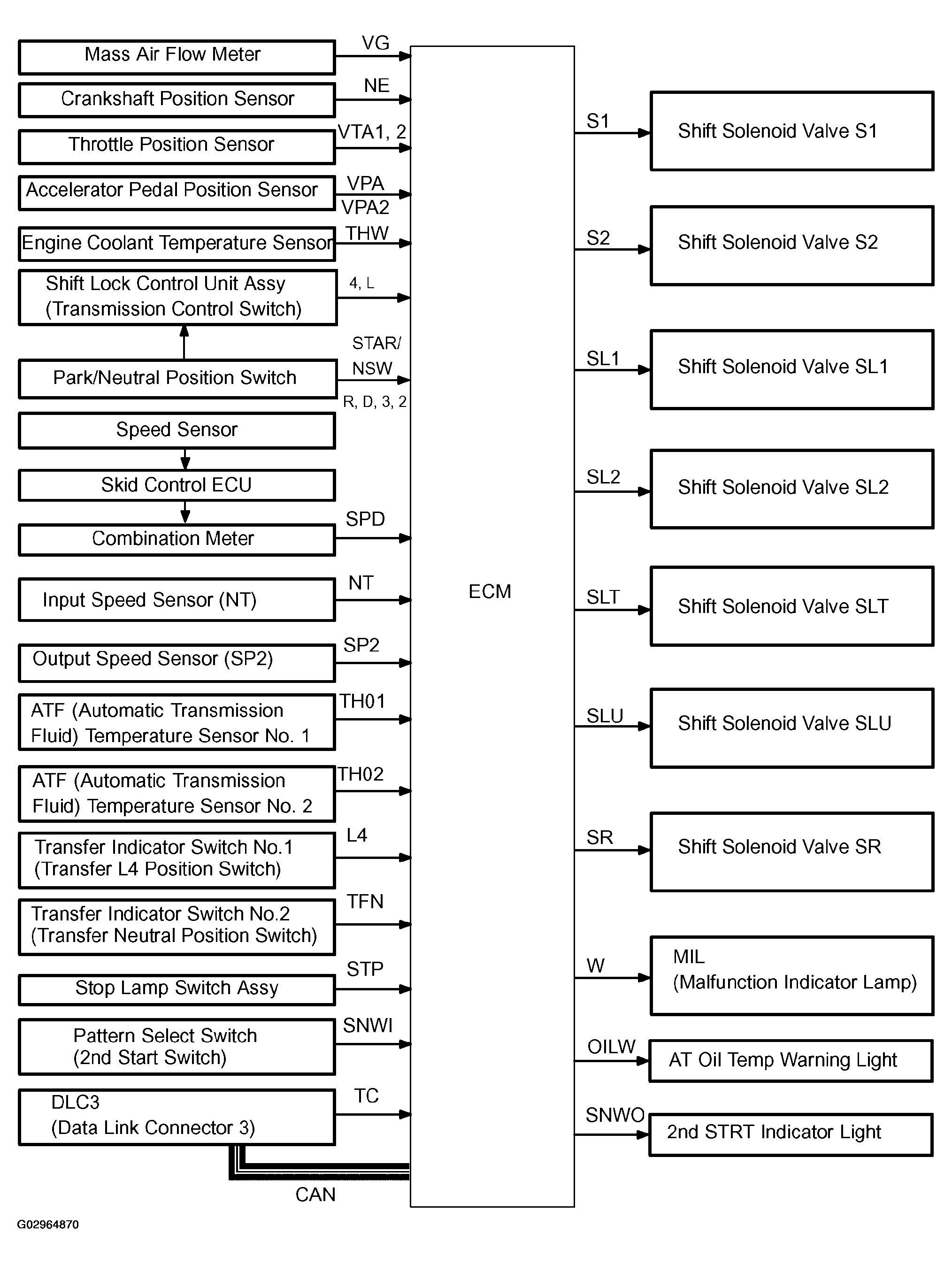

The configuration of the electronic control system in the A750F automatic transmission is as shown in Fig 1.

Fig 1: Electronic Controlled Automatic Transmission [ECT] System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
