Hood Lock Control: Components

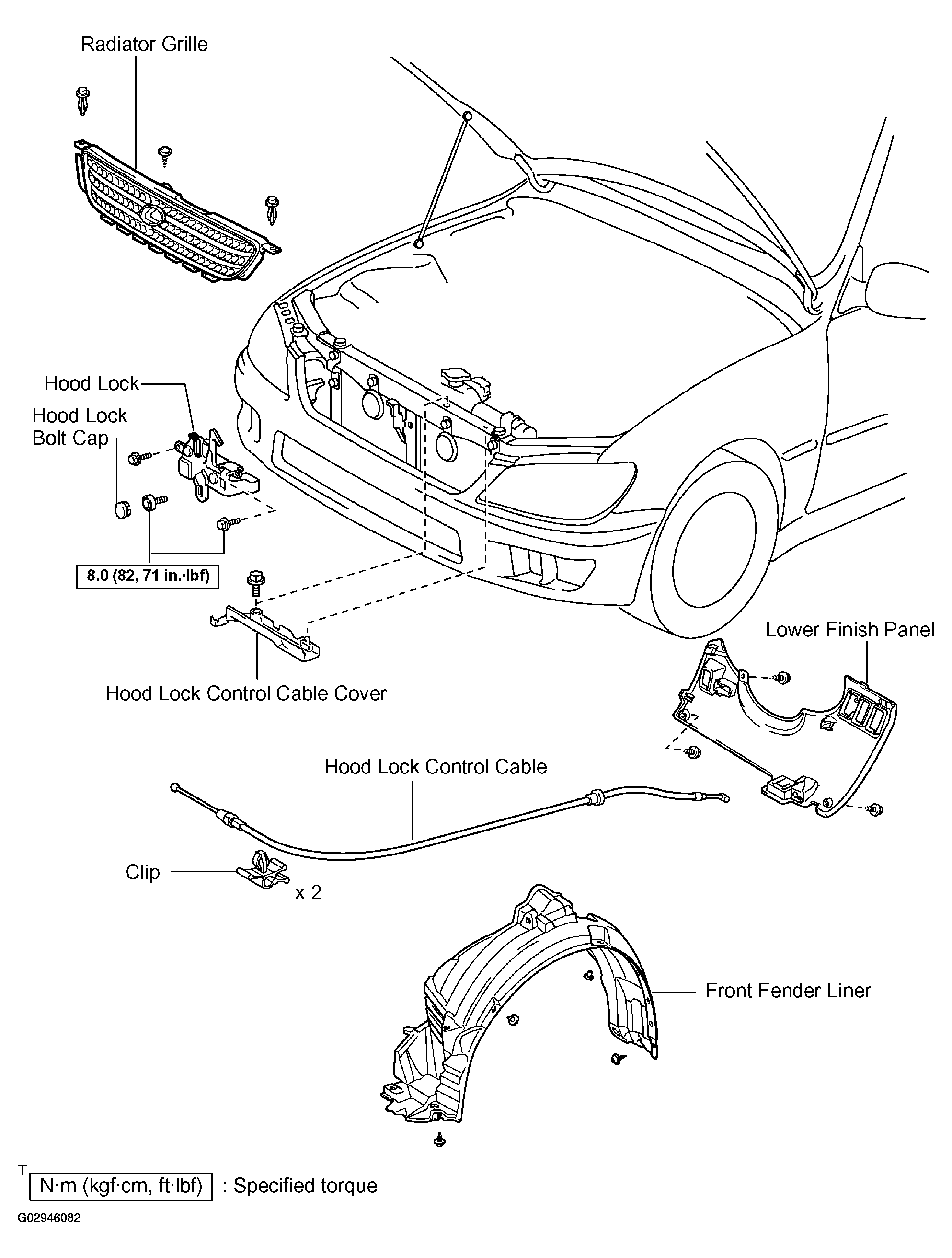

Fig 1: Identifying Hood Lock Control Components

G02946082

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
