Back Door Glass: Components

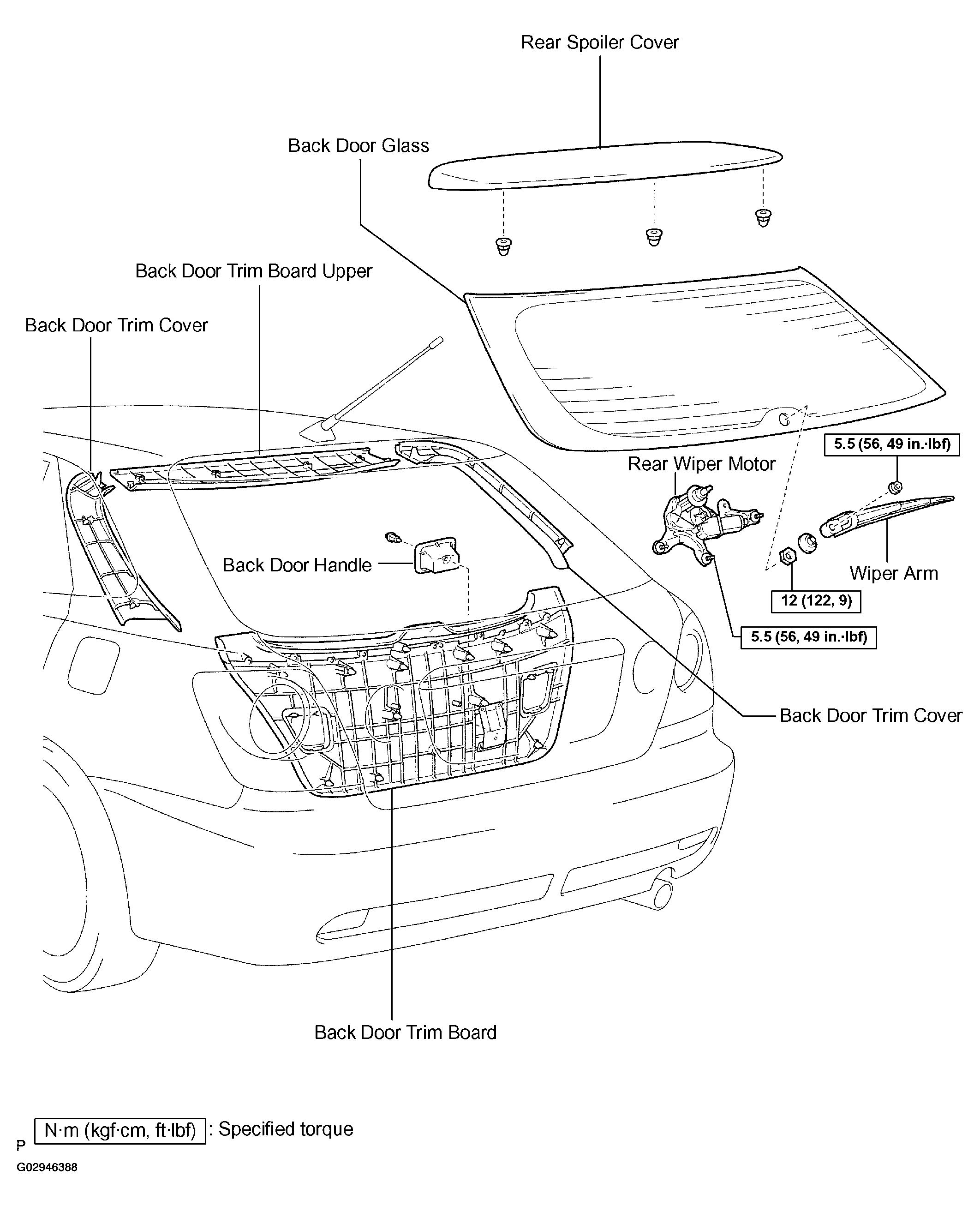

Fig 1: Back Door Glass Components With Torque Specifications

G02946388

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
