Terminals Of Ecu
Terminals Of Ecu
Fig 1: Identifying ECU Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

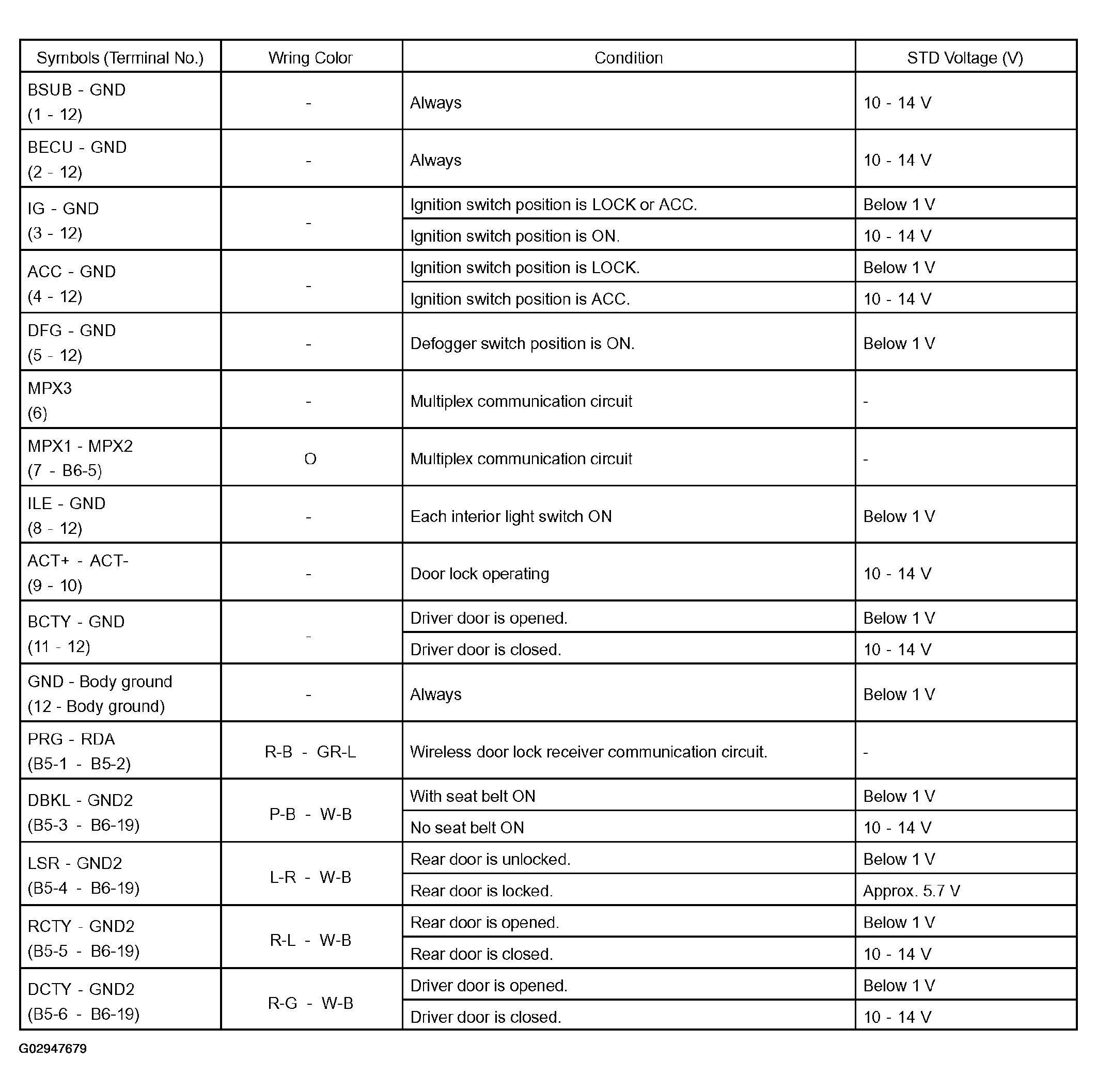

Fig 2: ECU Connector Terminals Voltage Specification (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

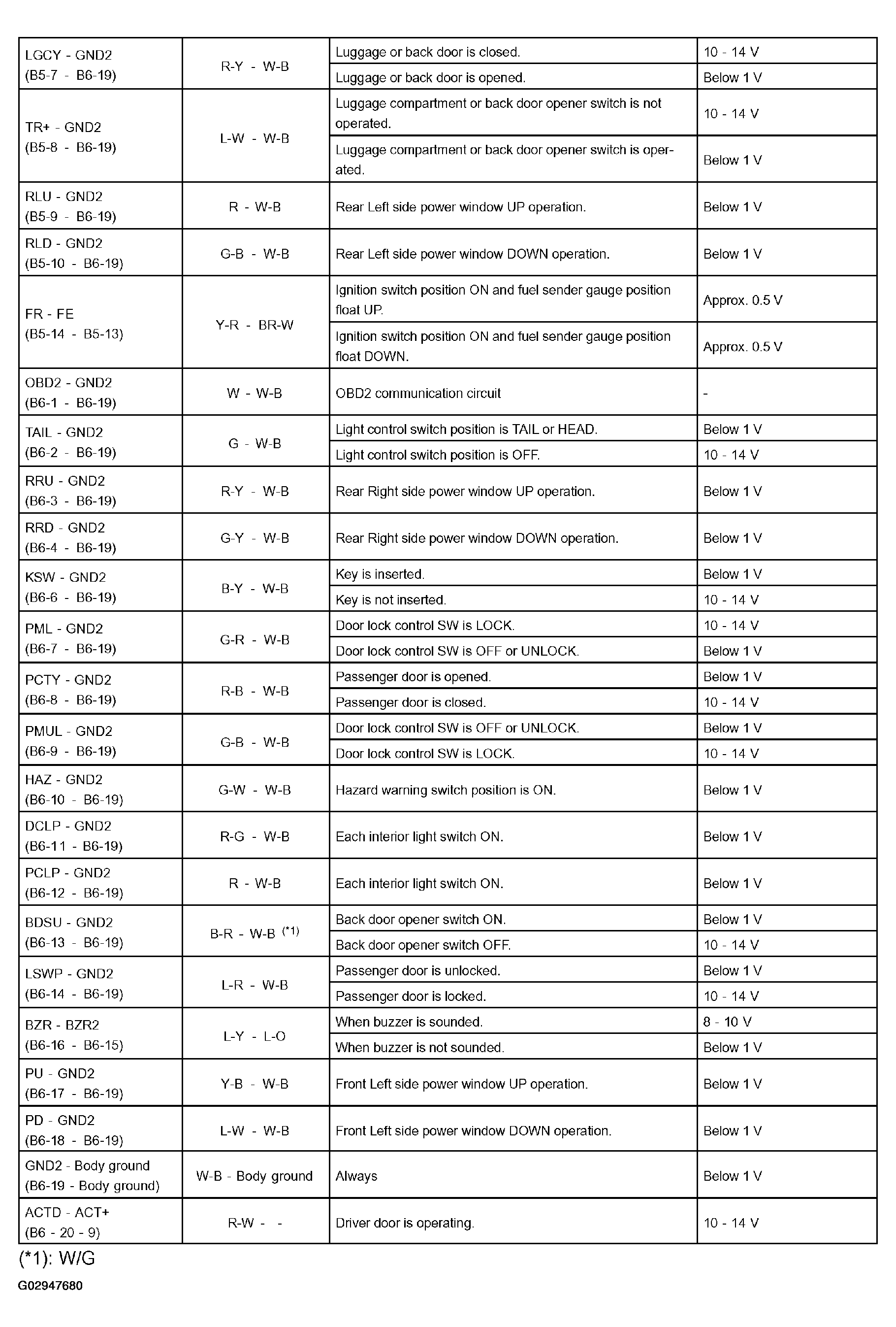

Fig 3: ECU Connector Terminals Voltage Specification (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
