Outside Rear View Mirror: Installation

INSTALL OUTSIDE REAR VIEW MIRROR
1. Install the outside rear view mirror with the bolt.
  1. Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
2. Connect the connector.

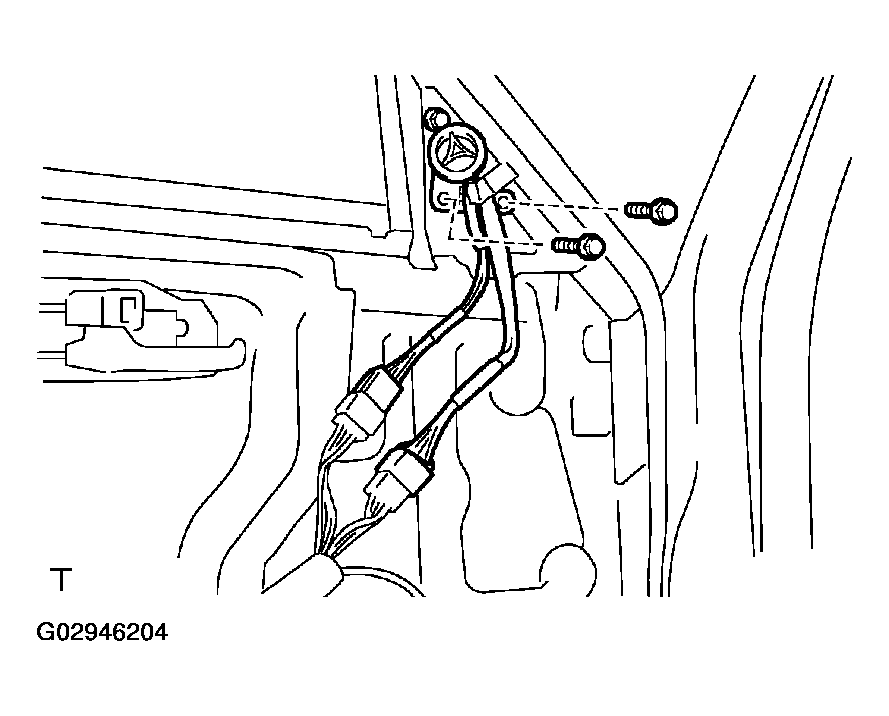

INSTALL FRONT NO.2 SPEAKER
1. Install the front No.2 speaker with the 2 bolts.
  1. Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
2. Connect the connector.

  Fig 1: Installing Front No.2 Speaker With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

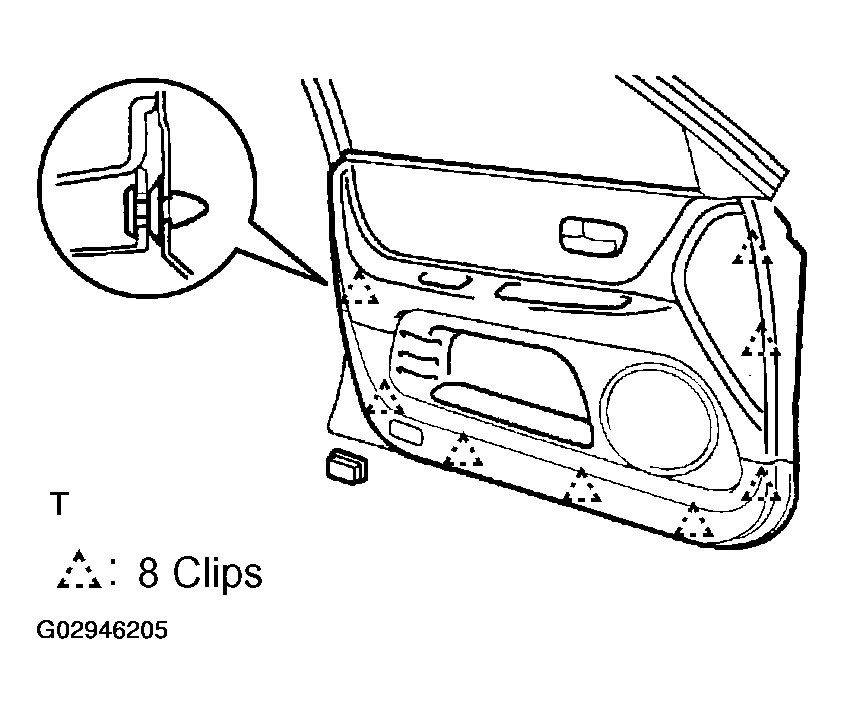

INSTALL DOOR TRIM
1. Install the door trim to the door panel.
2. Connect the connector, then install the courtesy light.

  Fig 2: Installing Door Trim To Door Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

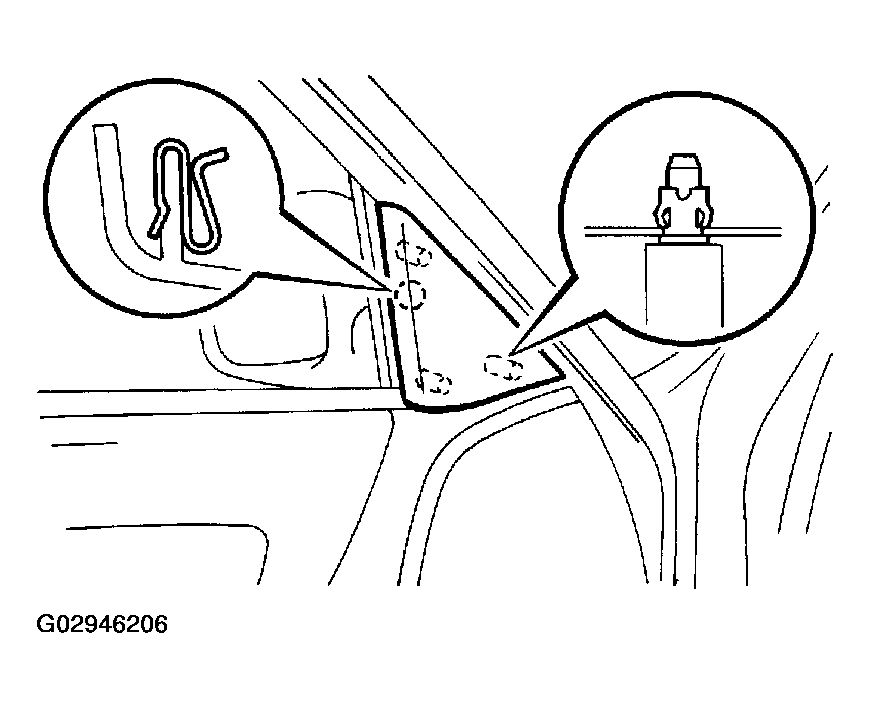

INSTALL LOWER FRAME BRACKET GARNISH
Install the lower frame bracket garnish to the door panel.

Fig 3: Installing Lower Frame Bracket Garnish To Door Panel
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT ARMREST
Install the front armrest with the screw.

Fig 4: Installing Front Armrest With Screw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

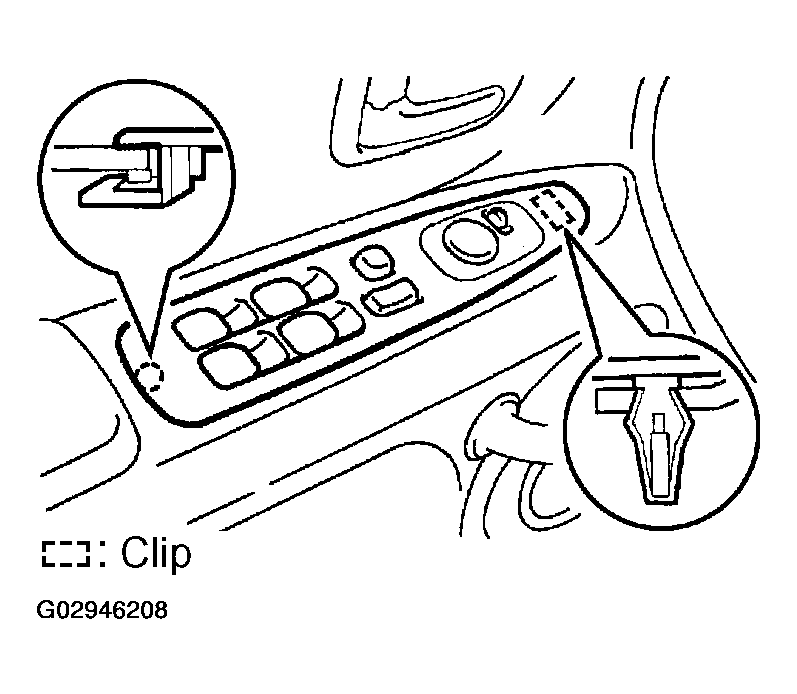

INSTALL POWER WINDOW SWITCH
1. Connect the connectors.
2. Install the power window switch.
INSTALL INSIDE HANDLE BEZEL
1. Install the inside handle bezel with the screws.
2. Close the screw cap.

  Fig 5: Installing Inside Handle Bezel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
