Sliding Roof System: Troubleshooting

Sliding Roof does not stop at correct position.

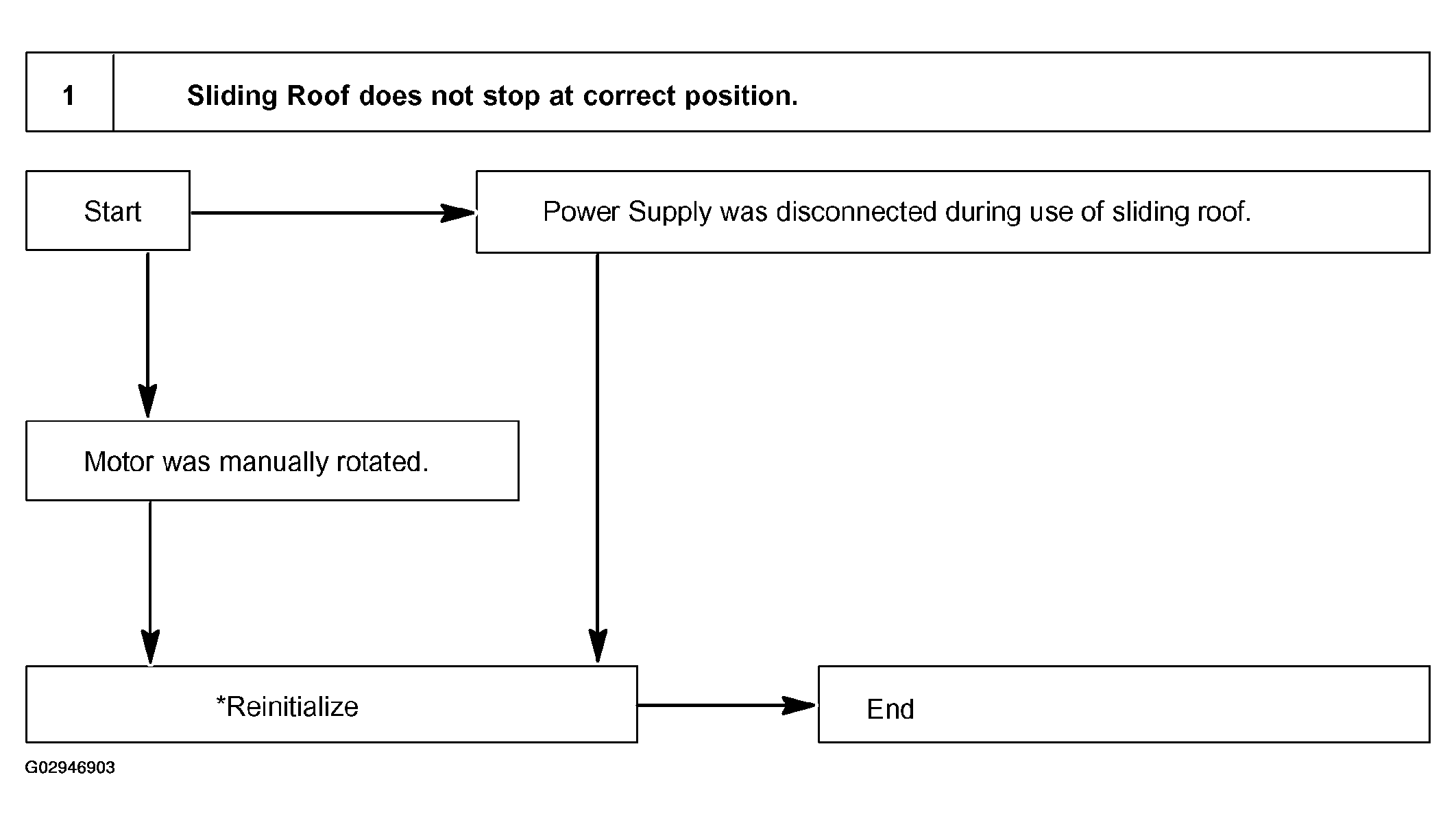

Fig 1: Troubleshooting Flow Chart - Sliding Roof Does Not Stop At Correct Position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Sliding Roof always reopens (anti trap function).

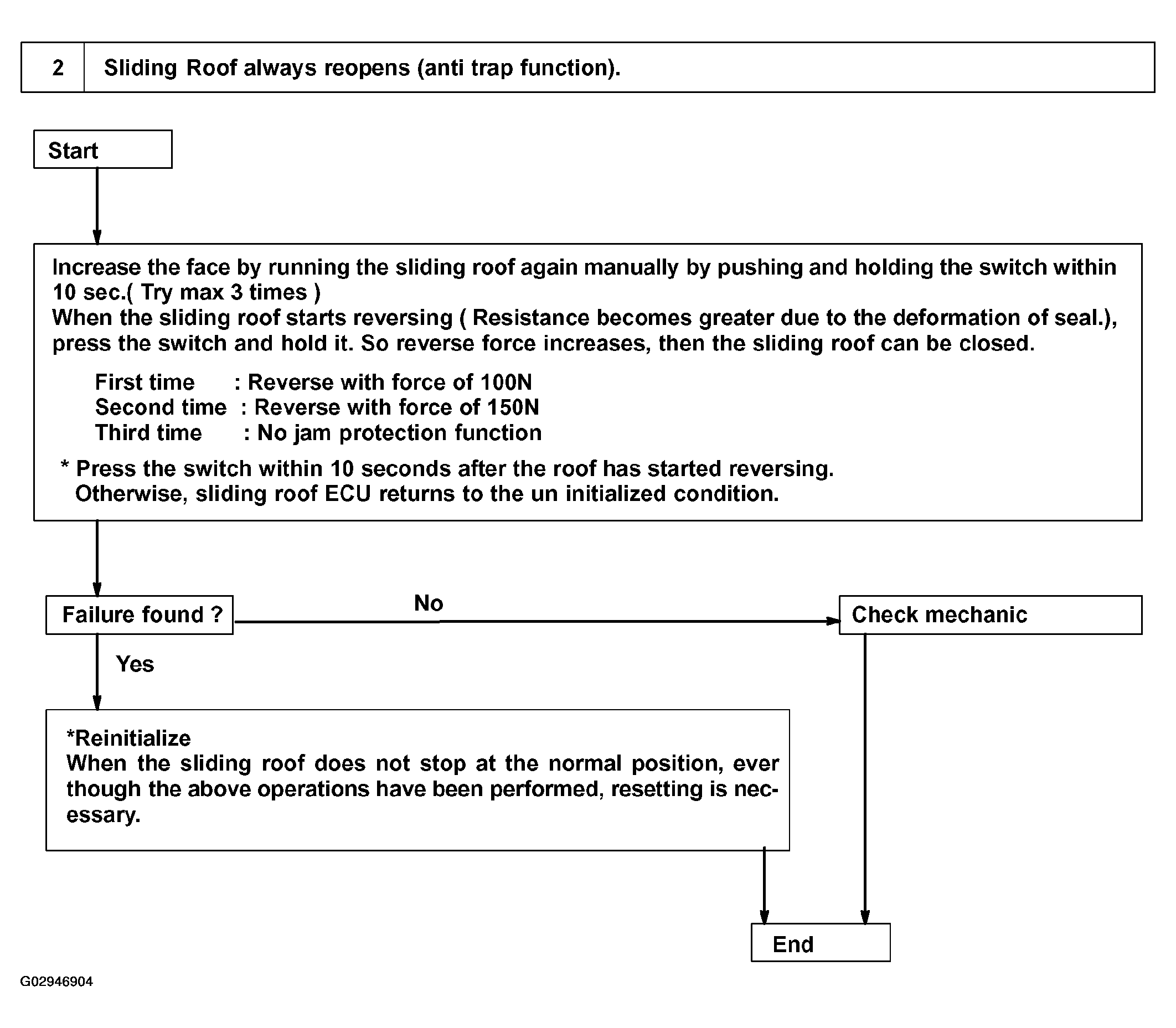

Fig 2: Troubleshooting Flow Chart - Sliding Roof Always Reopens (Anti Trap Function)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*Reinitializing method
1. Move the sliding roof to the maximum tilted position.
2. Release the switch, press the switch again and hold it for secs.
3. The sliding roof operates in a cycle of TILT DOWN -> SLIDE OPEN -> SLIDE CLOSE -> TILT UP.
  This completes reinitializing.
