Back-Up Light System
Back-Up Light System

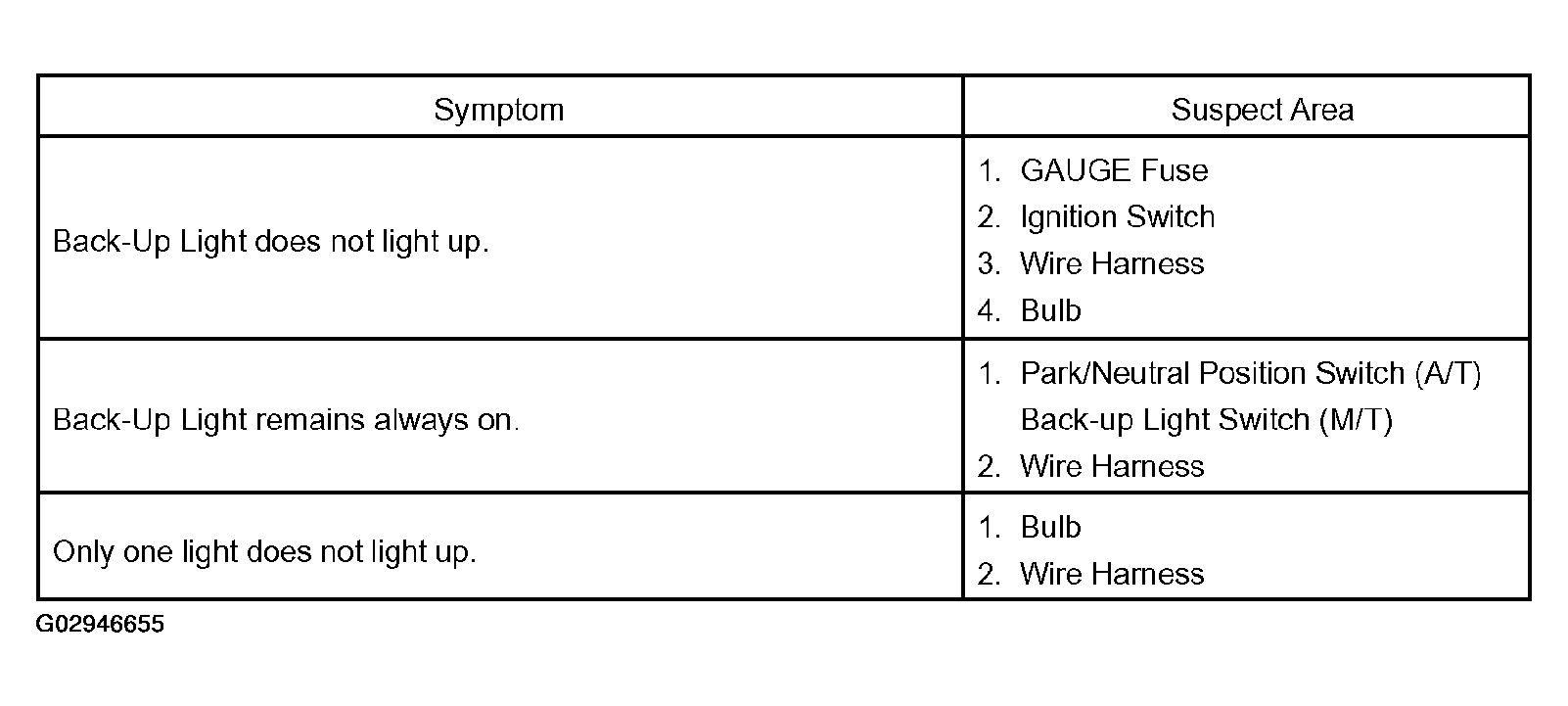

Fig 1: Problem Symptoms Chart - Back-Up Light System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
