Headlight Beam Level Control System
Headlight Beam Level Control System

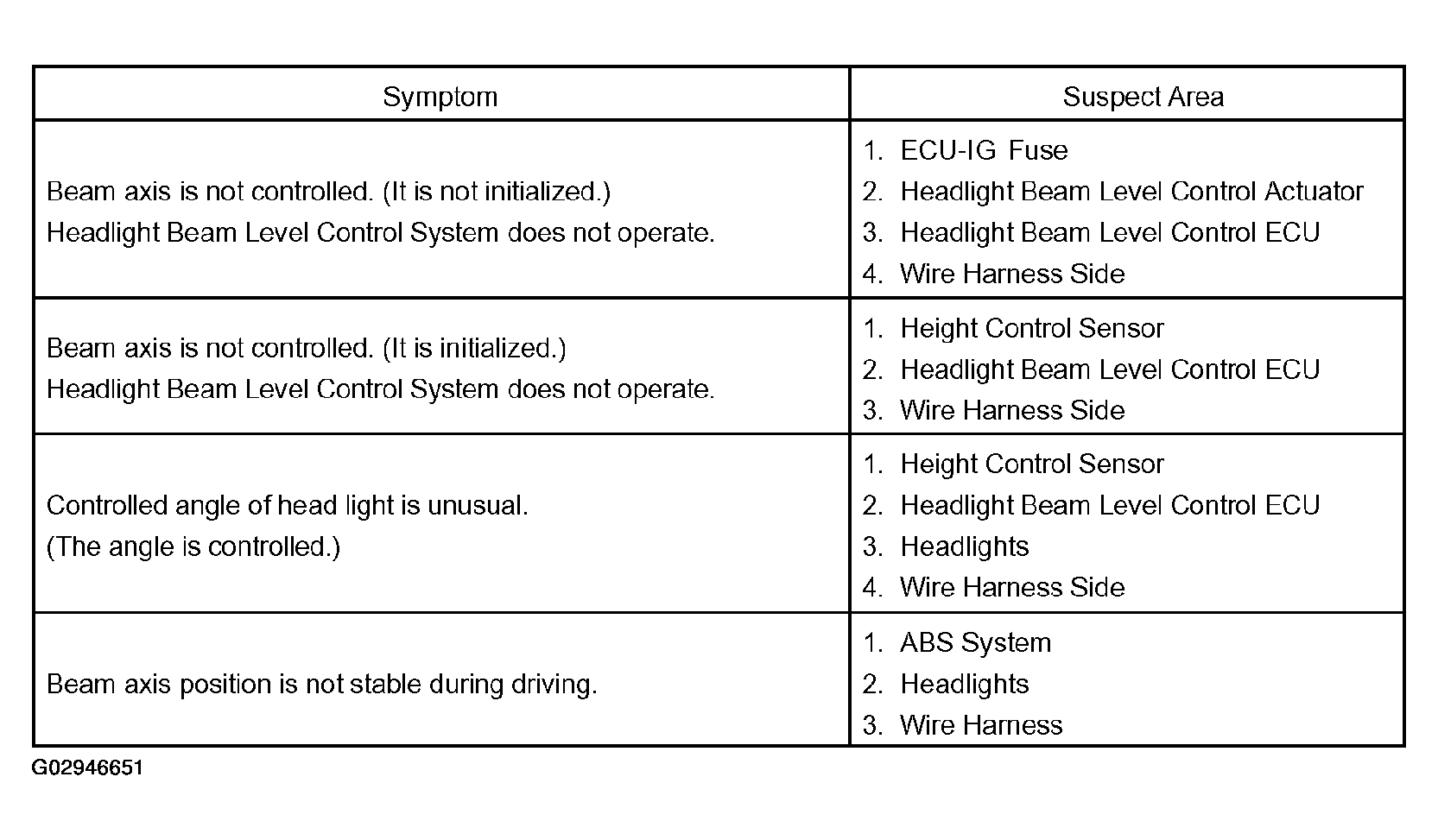

Fig 1: Problem Symptoms Chart - Headlight Beam Level Control System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
