Problem Symptoms Table
›
Power Seat Control System
Power Seat Control System

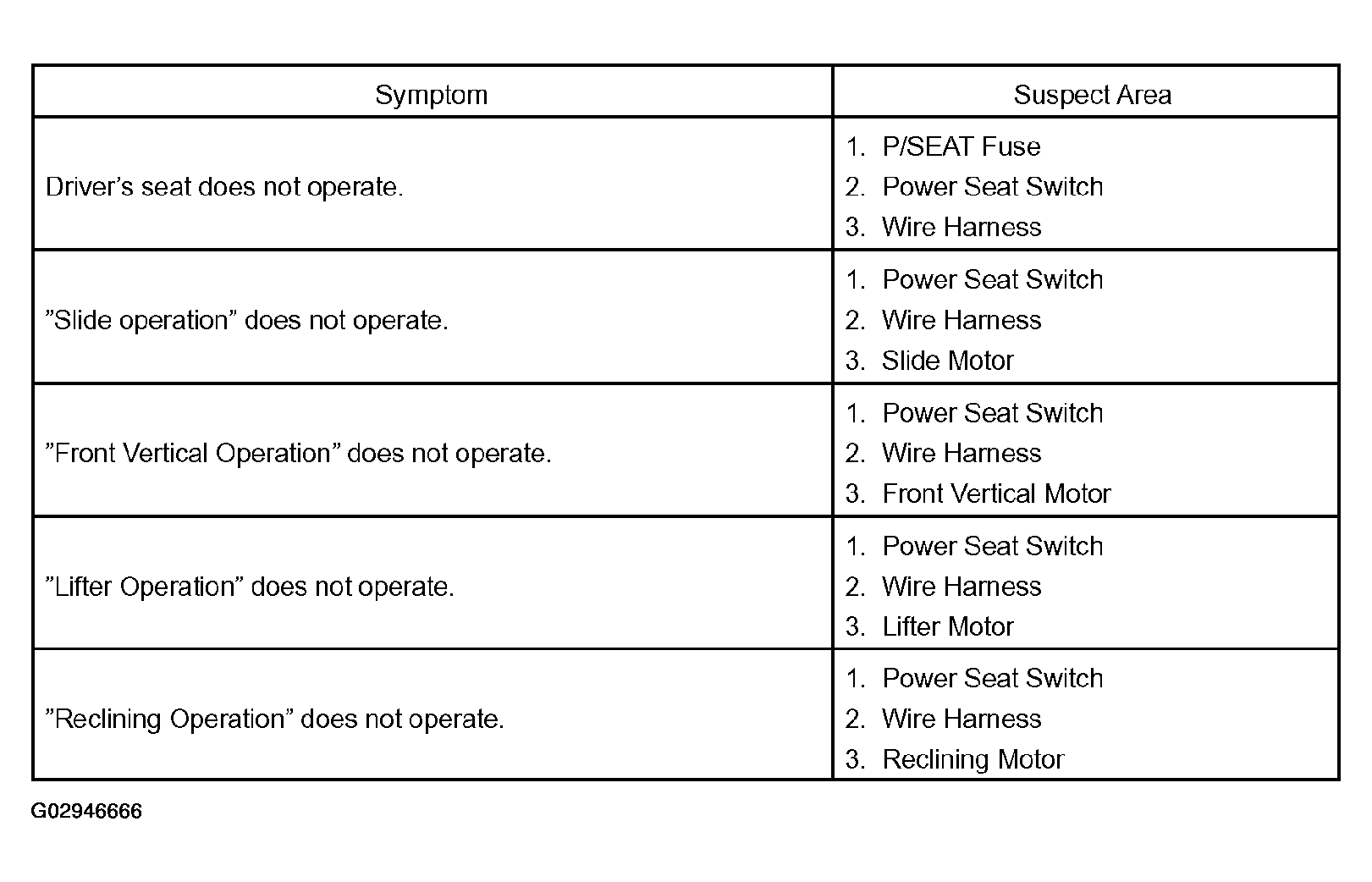

Fig 1: Problem Symptoms Chart - Power Seat Control System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
(D): Driver's Seat
(P): Passenger's Seat
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
