Problem Symptoms Table: Gauge:

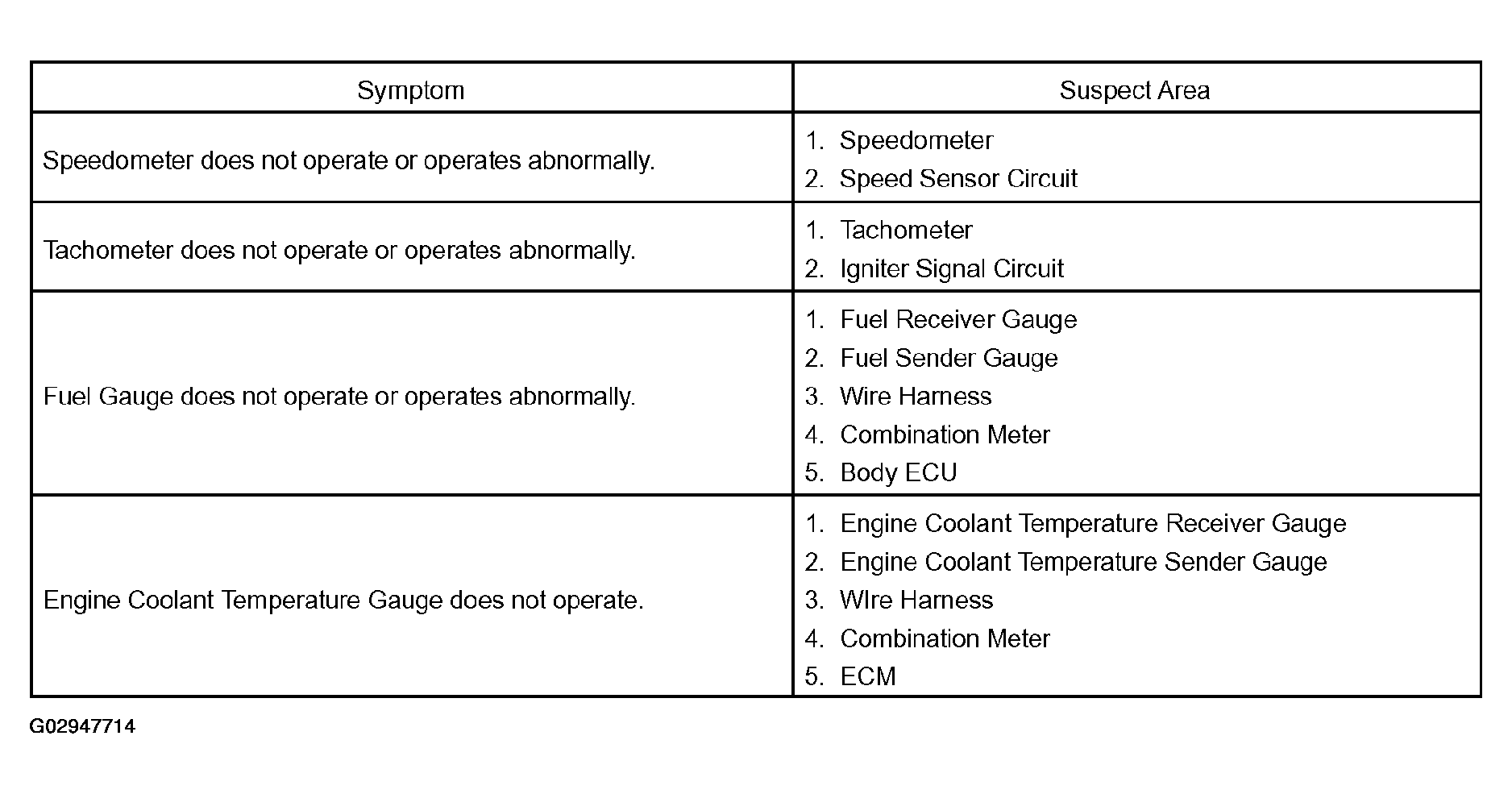

Fig 1: Troubleshooting Symptoms Chart
G02947714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
