Combination Meter: Circuit

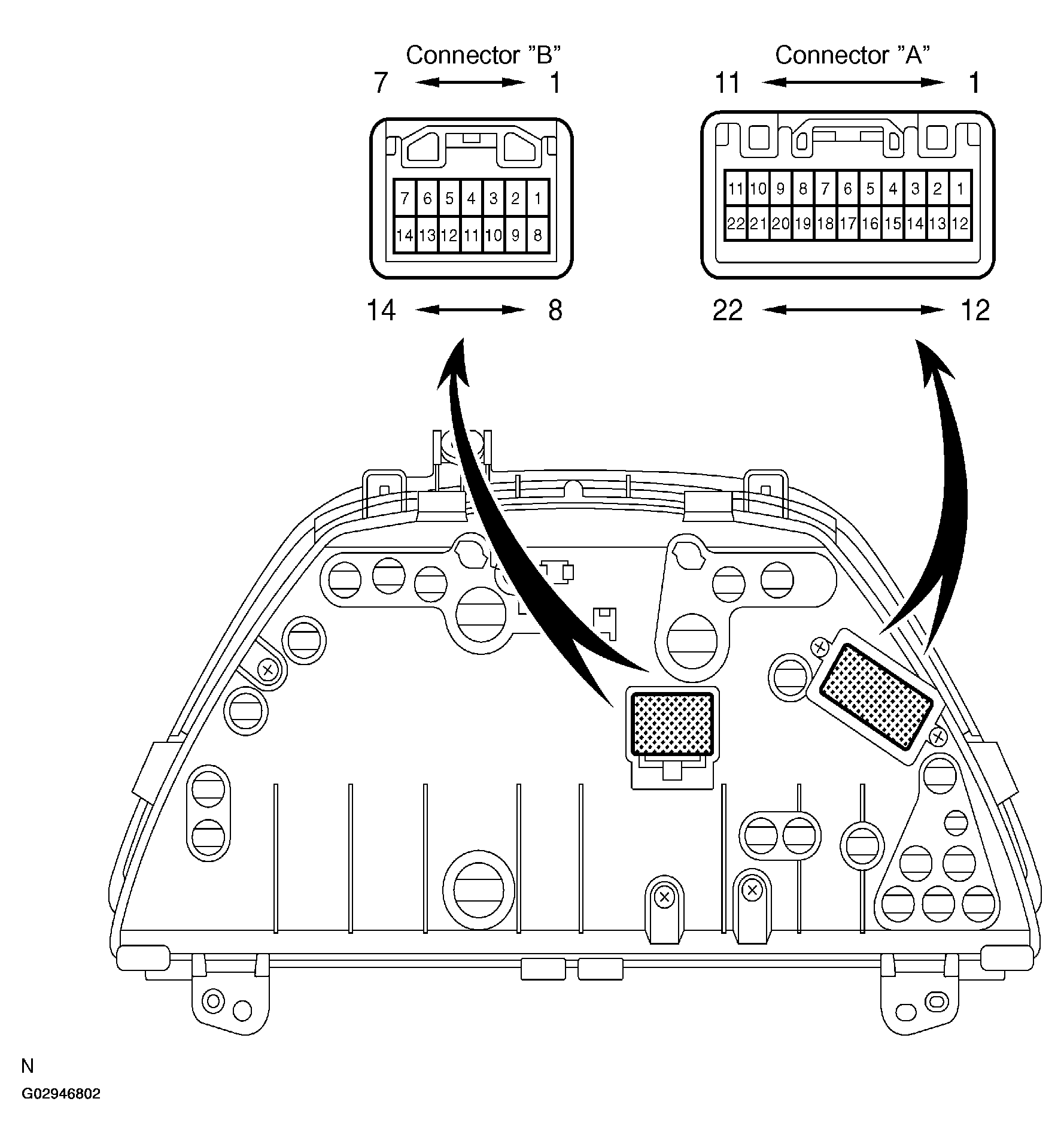

Fig 1: Identifying Combination Meter Connector Terminals
G02946802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

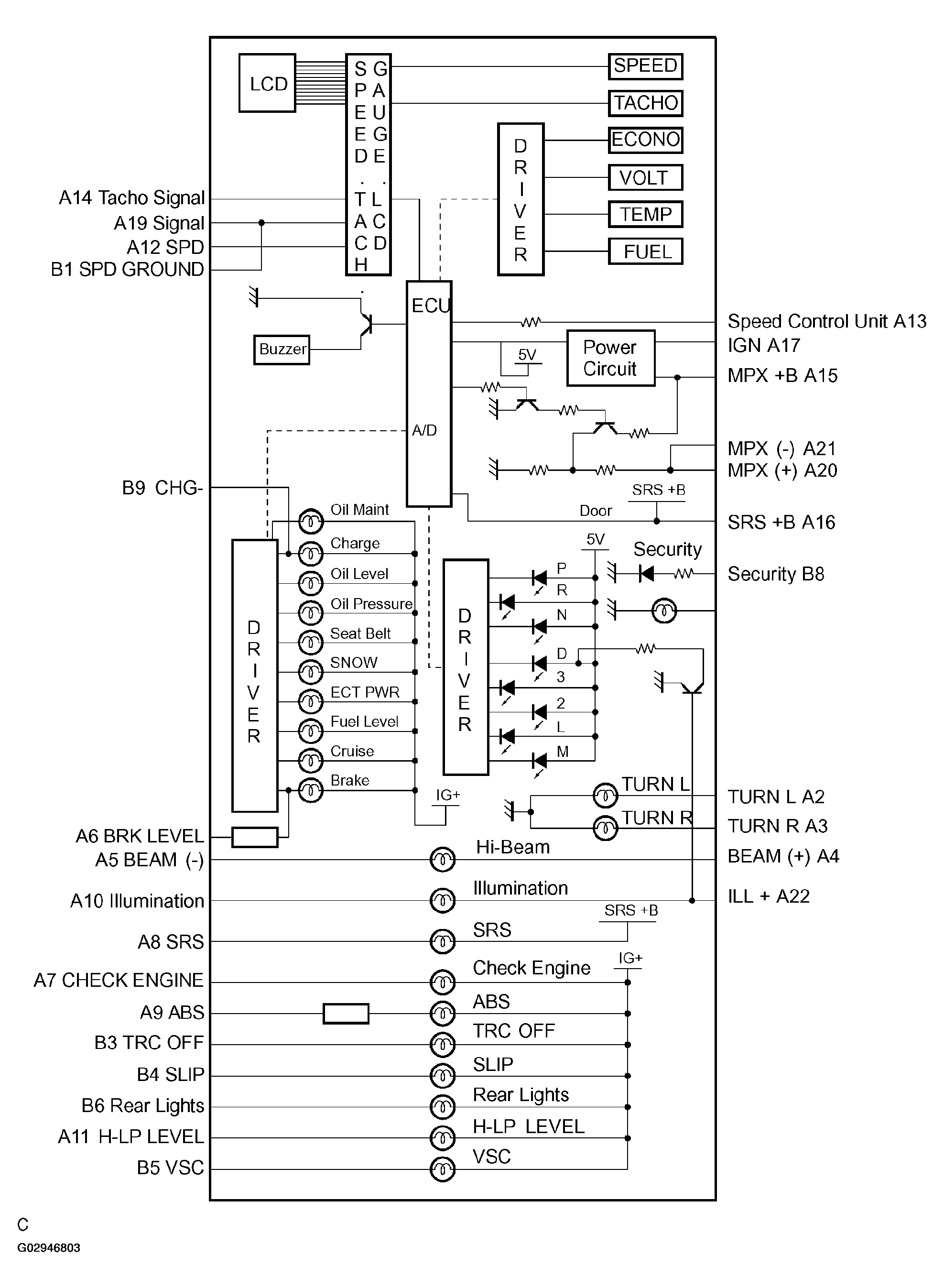

Fig 2: Combination Meter Circuit Diagram
G02946803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

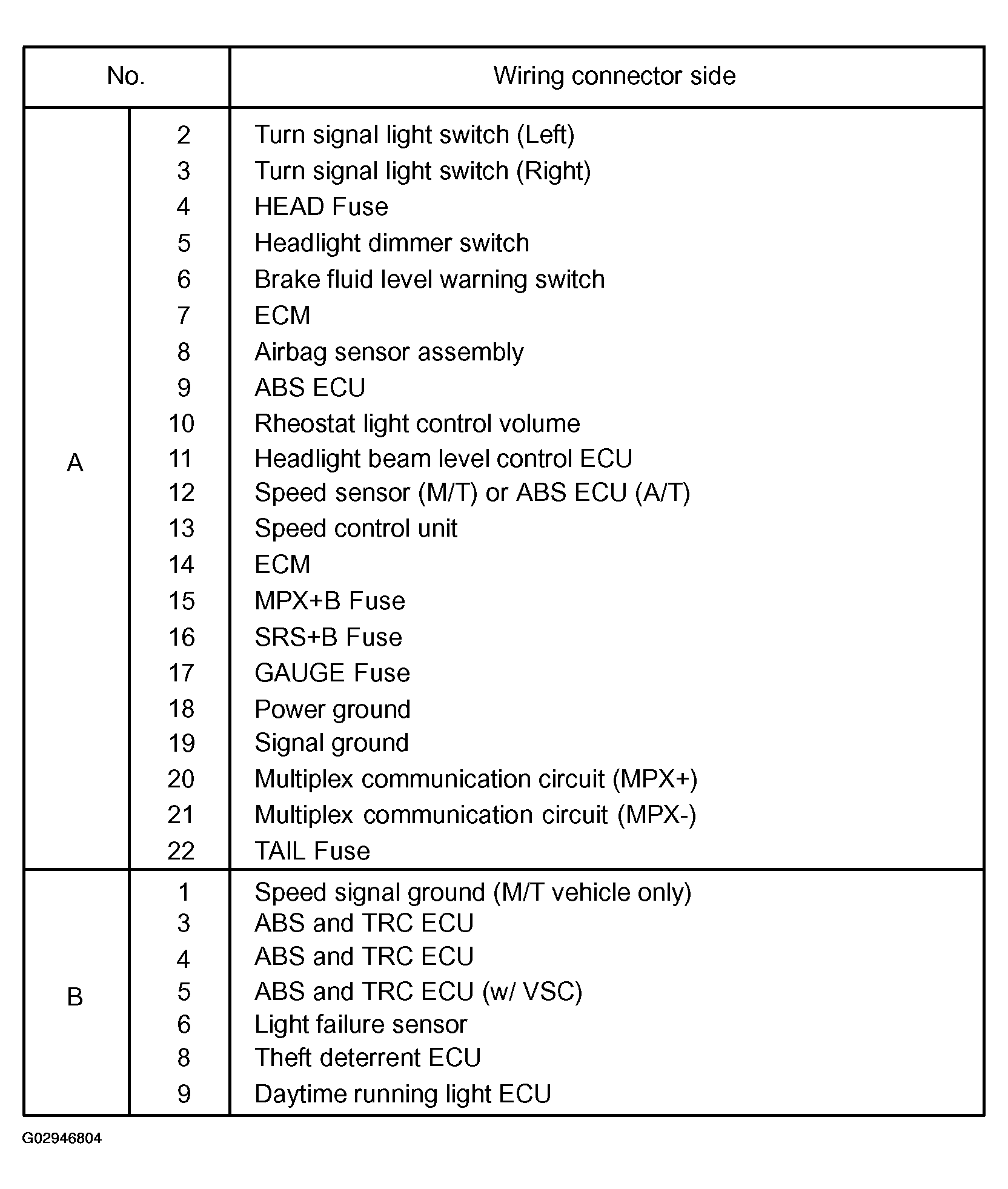

Fig 3: Combination Meter Connector Terminals Reference Chart
G02946804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
