FixVault
Home
›
Lexus
›
2005
›
IS 300 Base, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Fuel Delivery
›
SFI
›
Knock Sensor
›
Components
Knock Sensor: Components

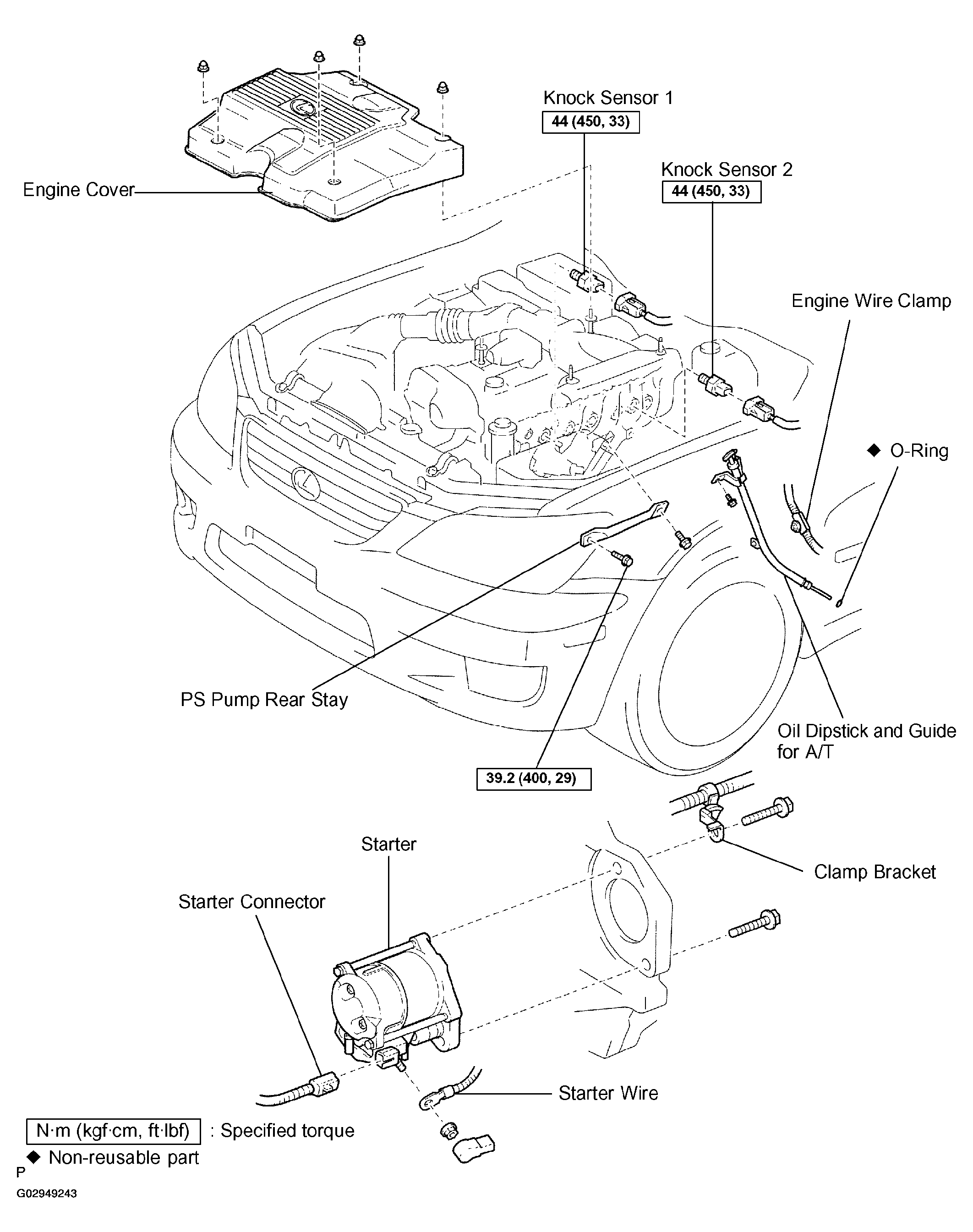

Fig 1: Exploded View Of Knock Sensor Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
