Engine - Diagnostics
›
DTC P0505: Idle Air Control System
›
Typical Malfunction Thresholds
Typical Malfunction Thresholds

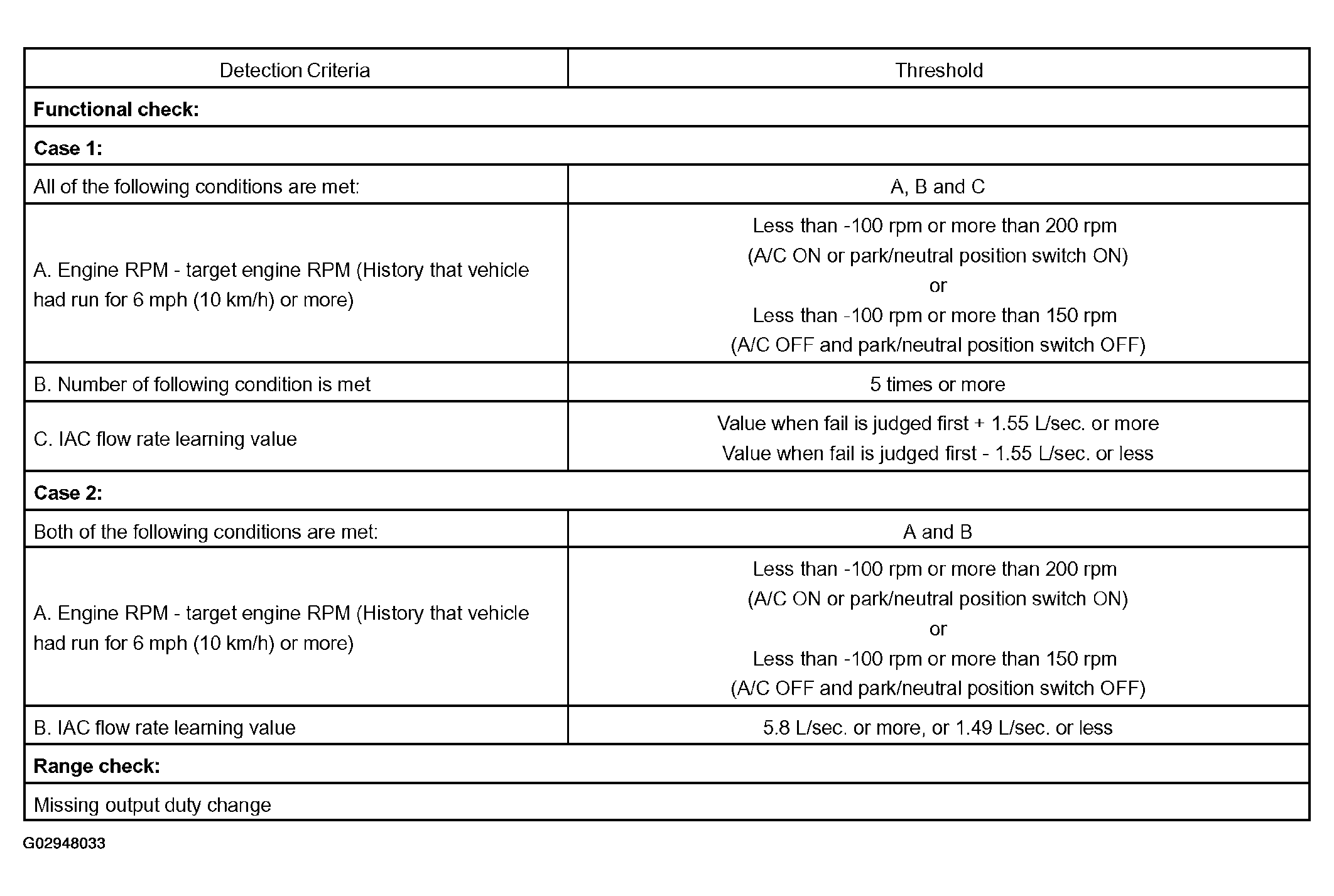

Fig 1: DTC P0505 Typical Malfunction Thresholds
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
