DTC P2102, P2103: Throttle Actuator Control Motor Circuit Low/High
›
Typical Enabling Conditions
Typical Enabling Conditions

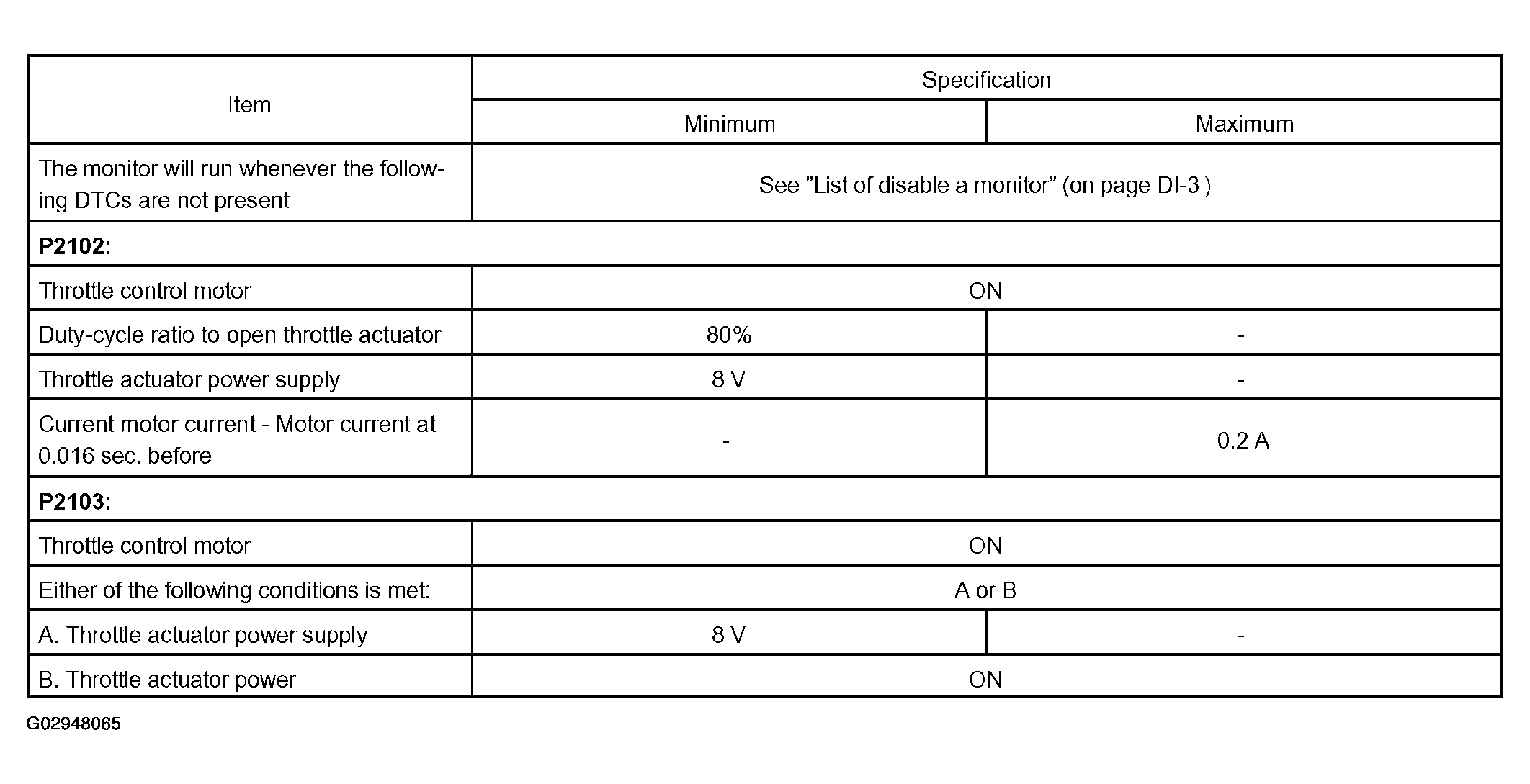

Fig 1: DTC P2102, P2103 Typical Enabling Conditions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
