Engine - Diagnostics
›
IACV Control Circuit
›
Wiring Diagram
IACV Control Circuit: Wiring Diagram

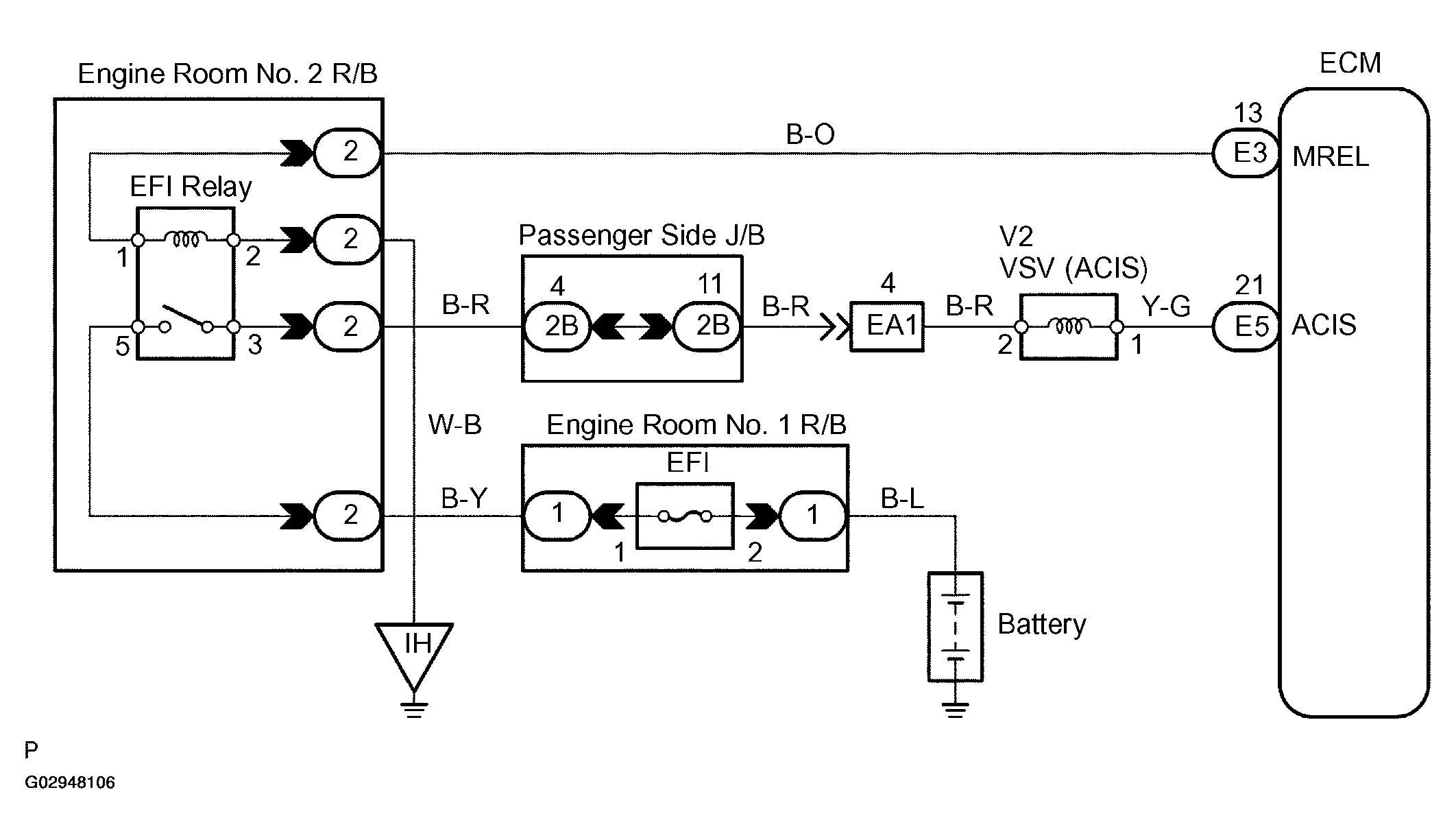

Fig 1: Wiring Diagram - IACV Control Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
