Mil Circuit Malfunction: Wiring Diagram

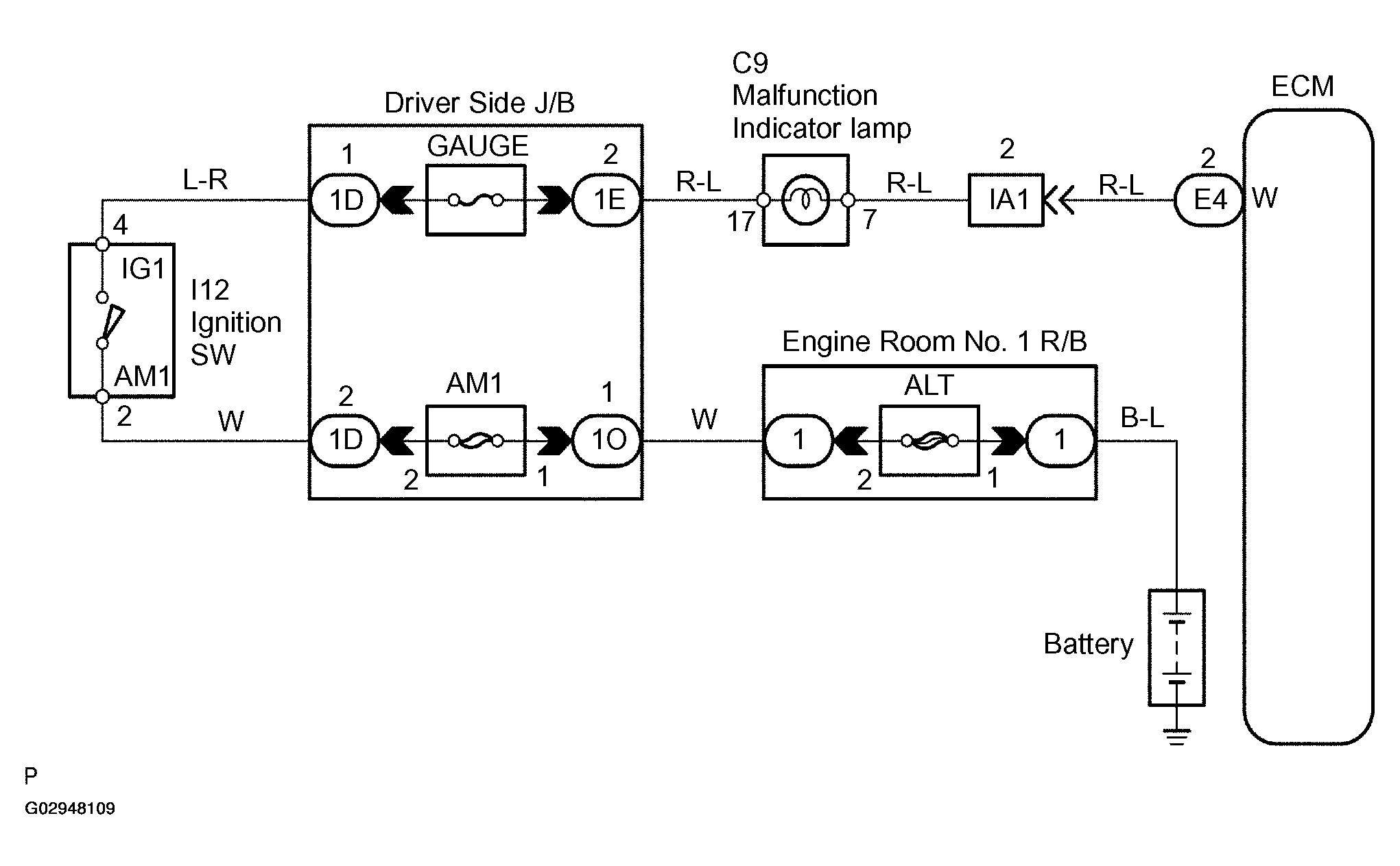

Fig 1: Wiring Diagram - MIL Circuit
G02948109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
