Parts Location
Parts Location

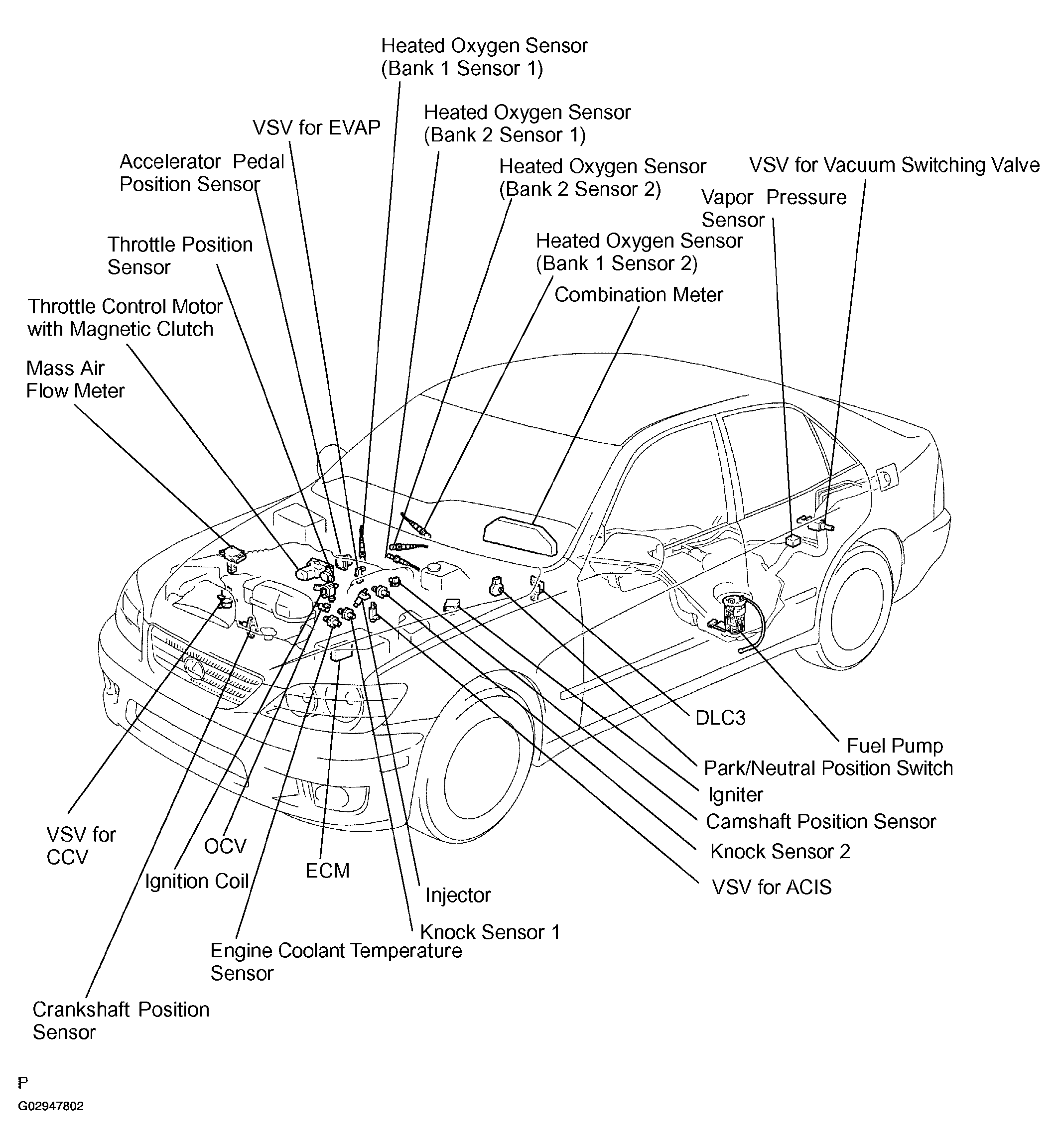

Fig 1: Identifying Electrical Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
