Extension Housing: Components

WARNING: This page is about a different variant/trim than selected.

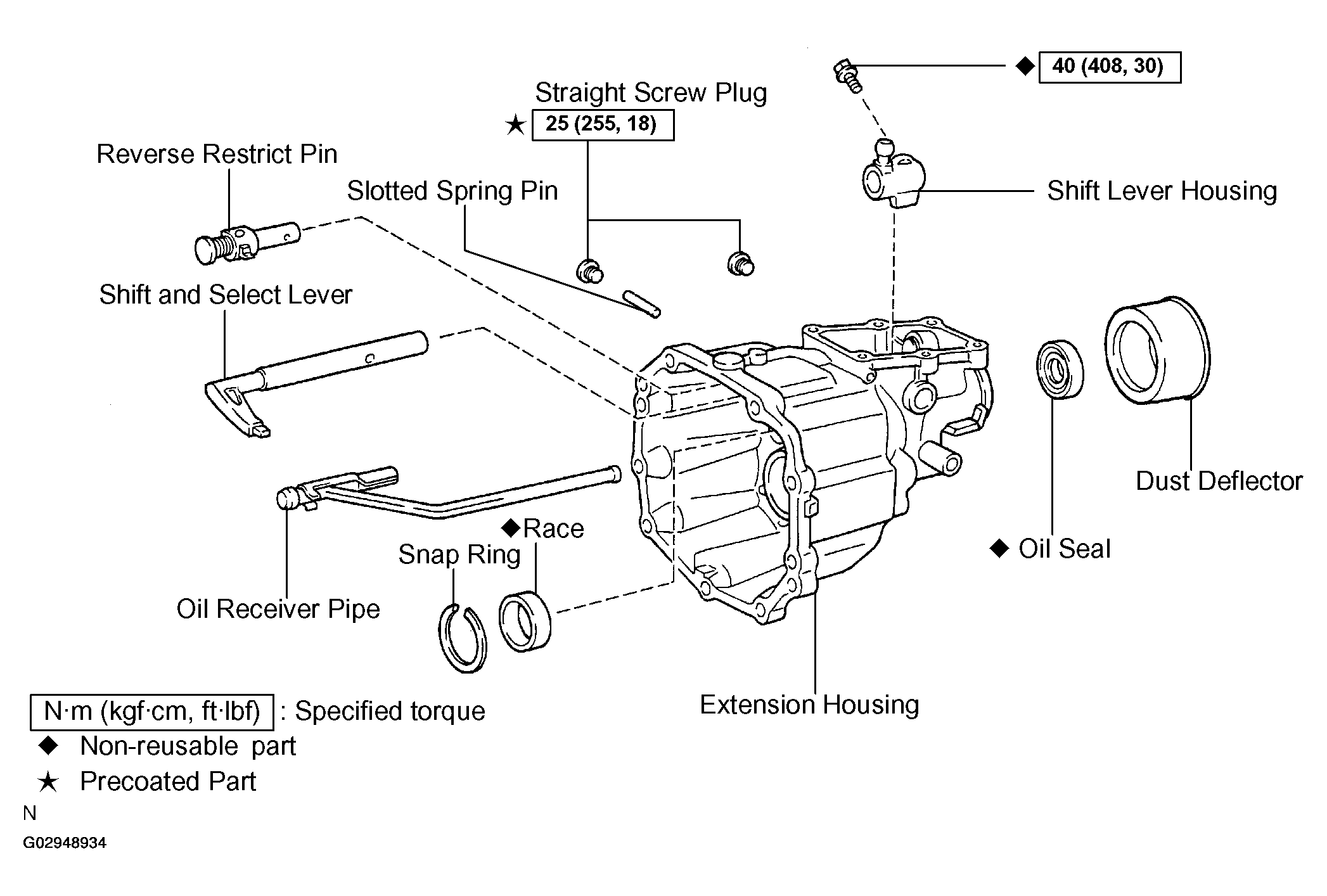

Fig 1: Exploded View Of Extension Housing With Torque Specifications
G02948934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
