Manual Transmission Unit: Components

WARNING: This page is about a different variant/trim than selected.

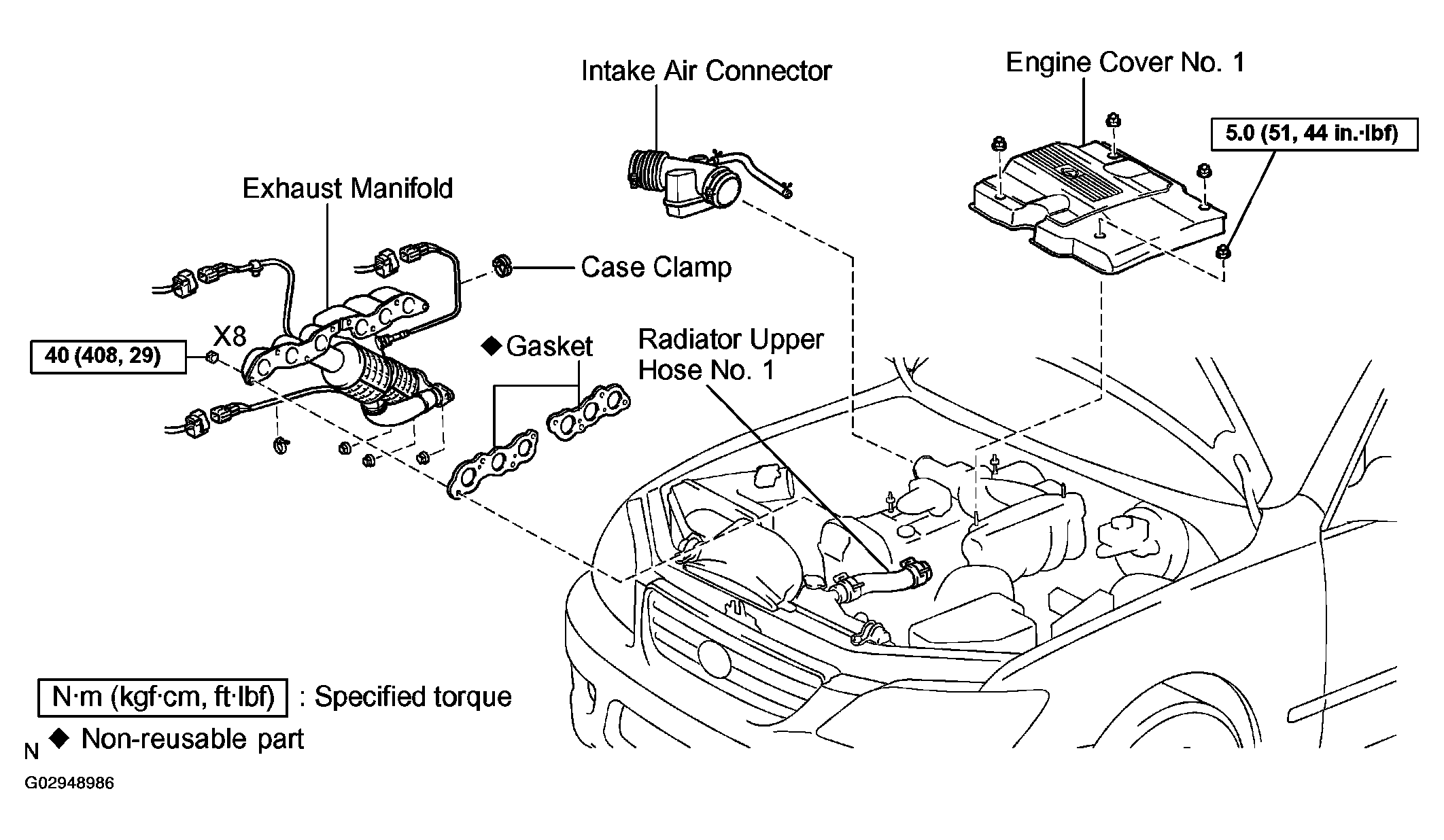

Fig 1: Exploded View Of Manual Transmission Unit With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

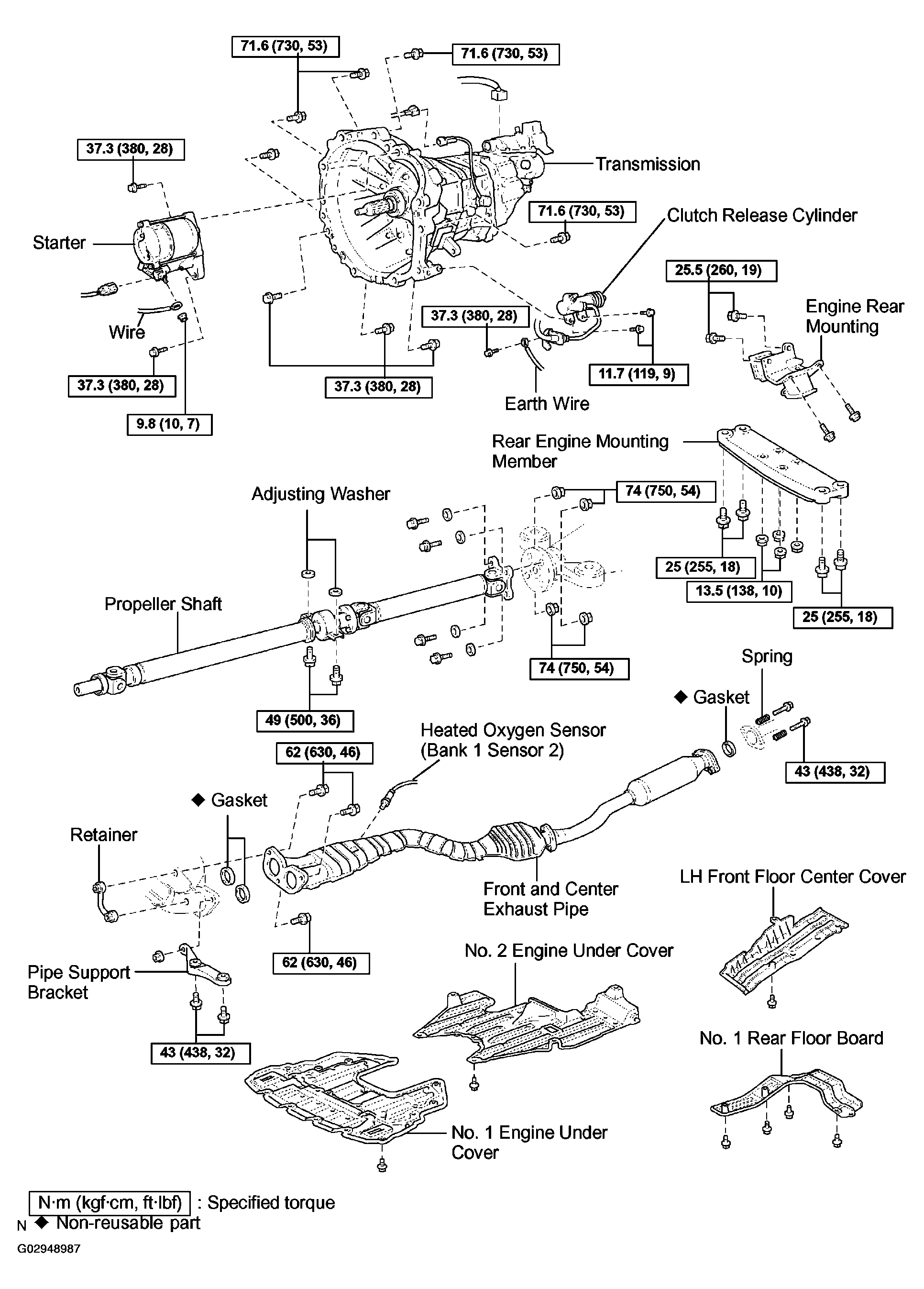

Fig 2: Exploded View Of Manual Transmission Unit With Torque Specifications (2 Of 3)

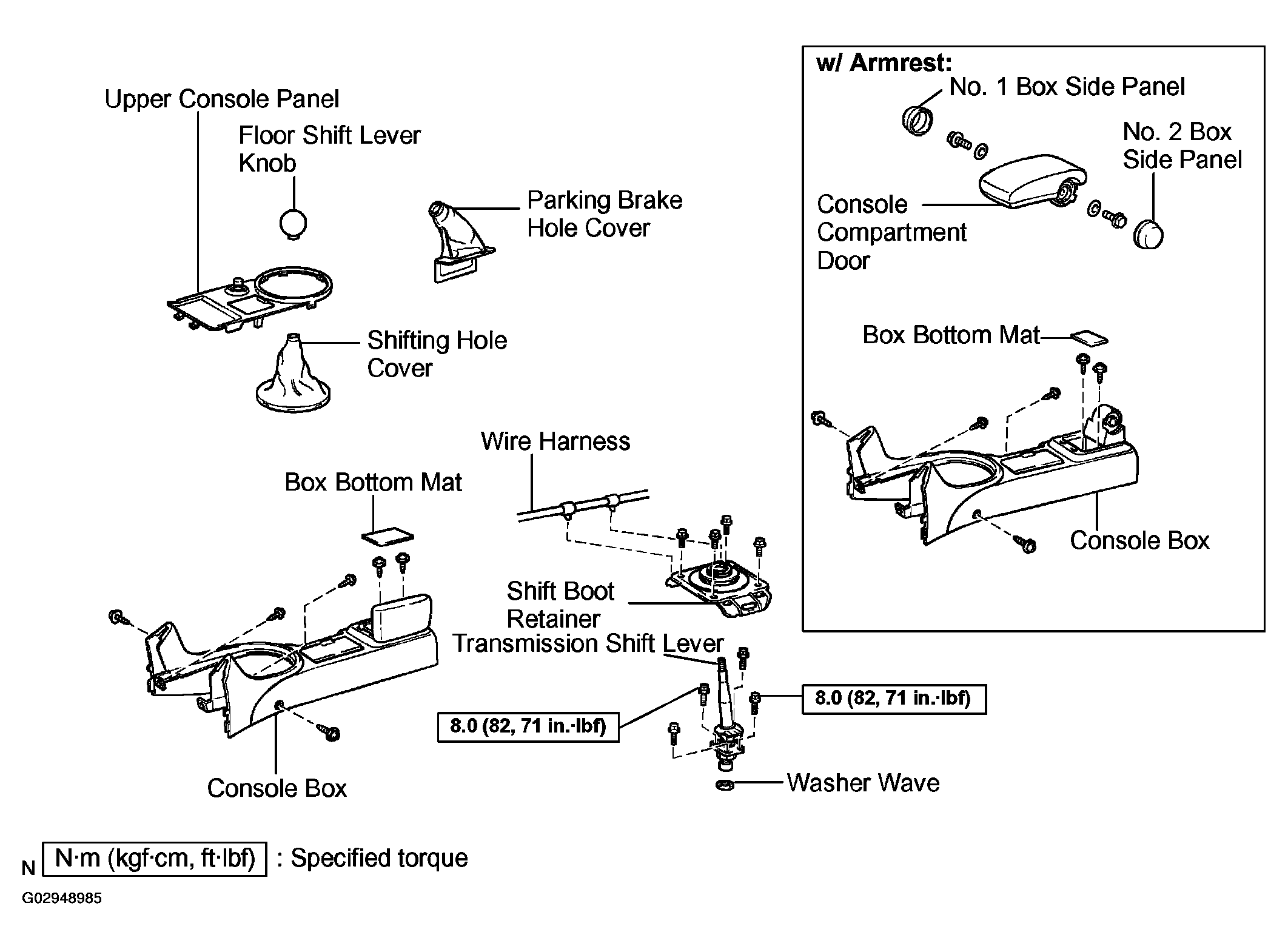

Fig 3: Exploded View Of Manual Transmission Unit With Torque Specifications (3 Of 3)
