Output Shaft: Components

WARNING: This page is about a different variant/trim than selected.

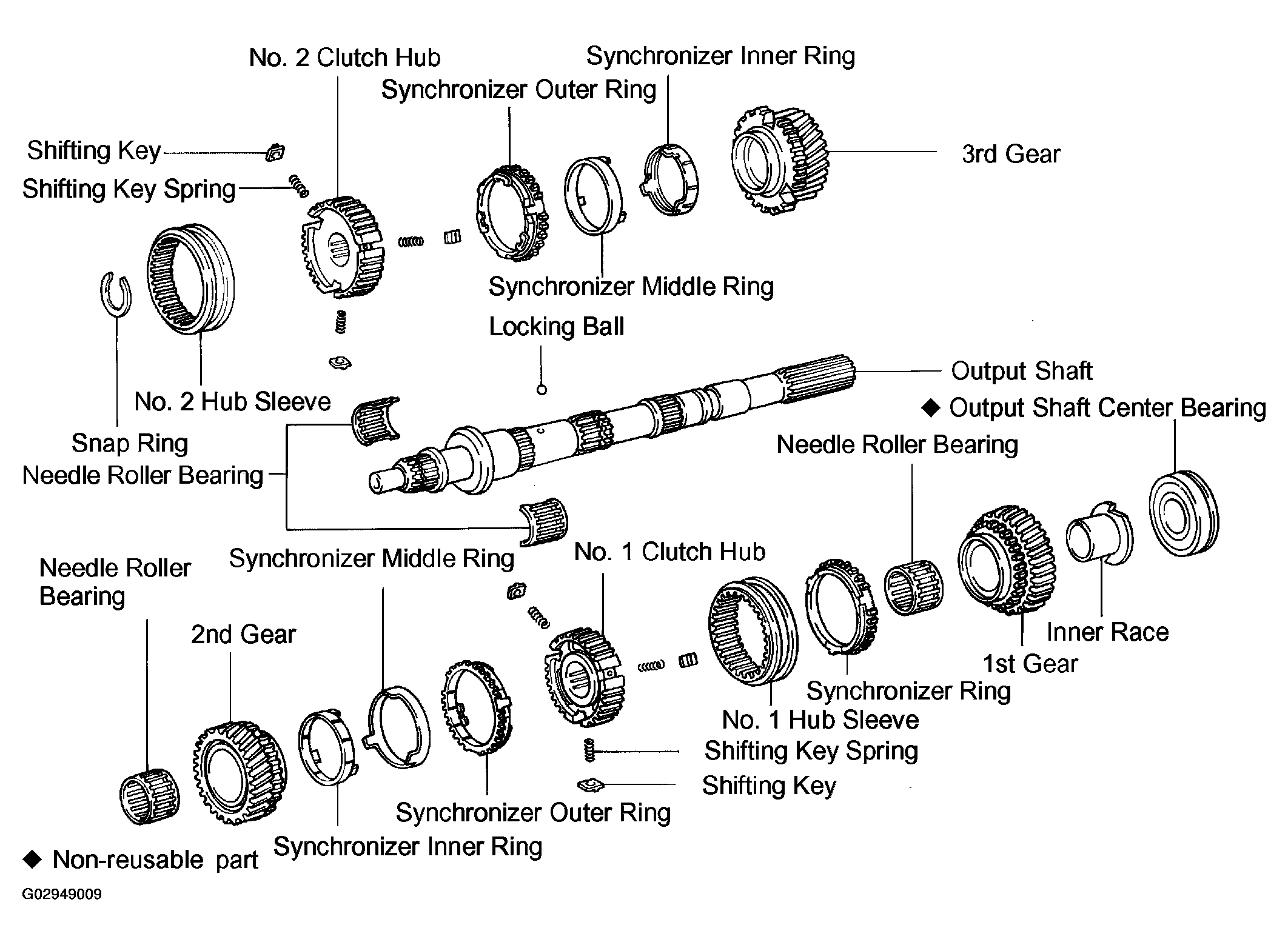

Fig 1: Exploded View Of Output Shaft
G02949009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
