Air Conditioning Control Assembly: Removal

  1. REMOVE CENTER CLUSTER FINISH PANEL (See  REMOVAL  )
  2. REMOVE LOWER CENTER CLUSTER FINISH PANEL (See  REMOVAL  )
  3. REMOVE A/C CONTROL ASSEMBLY
    1. Remove the 4 bolts and pull out the A/C control assembly with radio assembly, then disconnect the connectors.

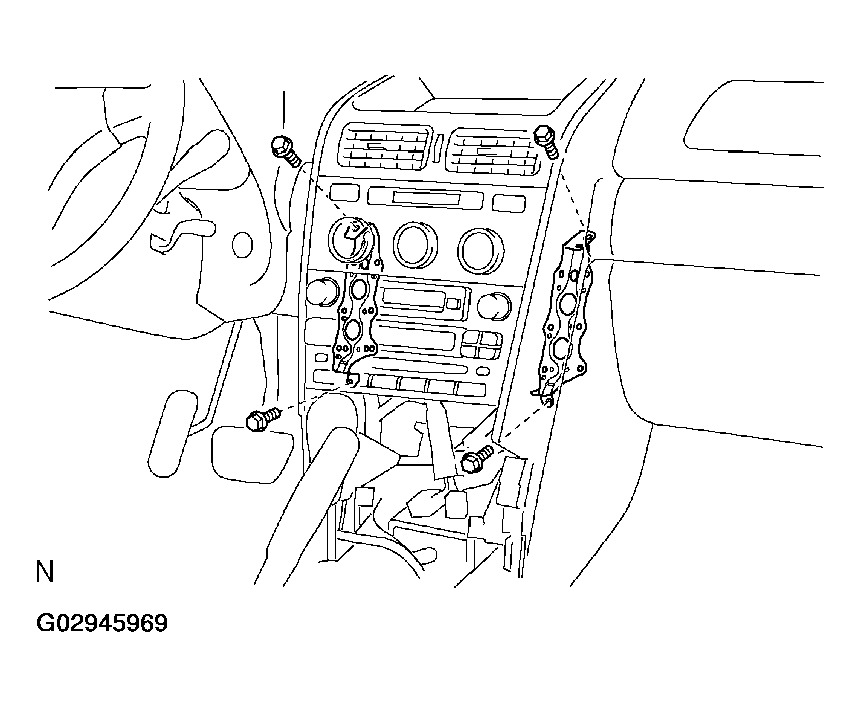

      Fig 1: Removing Bolts And Pulling Out A/C Control Assembly With Radio Assembly
      G02945969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 12 screws and 2 brackets.

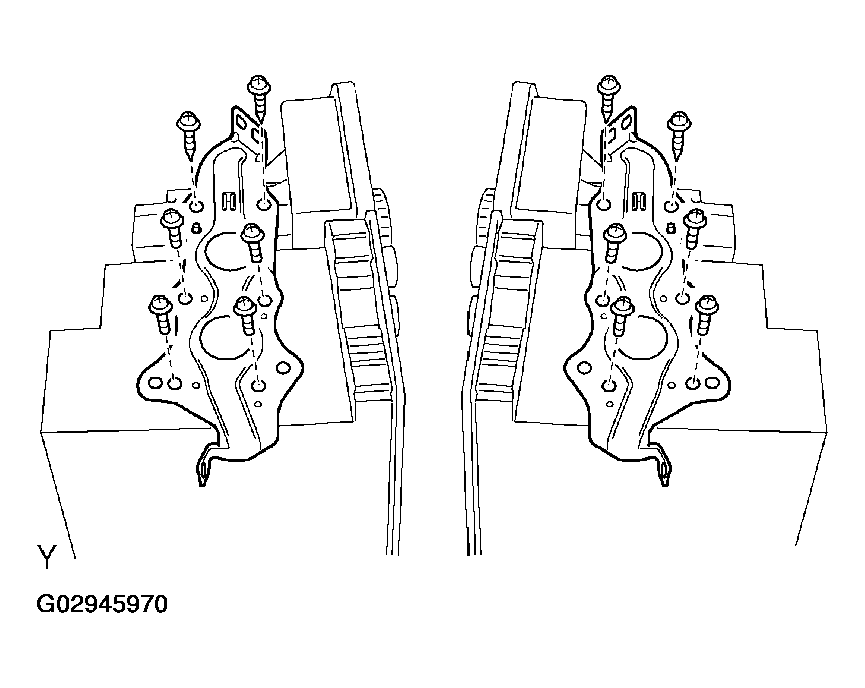

      3. Fig 2: Removing Screws And Brackets
      G02945970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Separate the A/C control assembly and radio assembly.
