Seat Belt (Sedan): Components

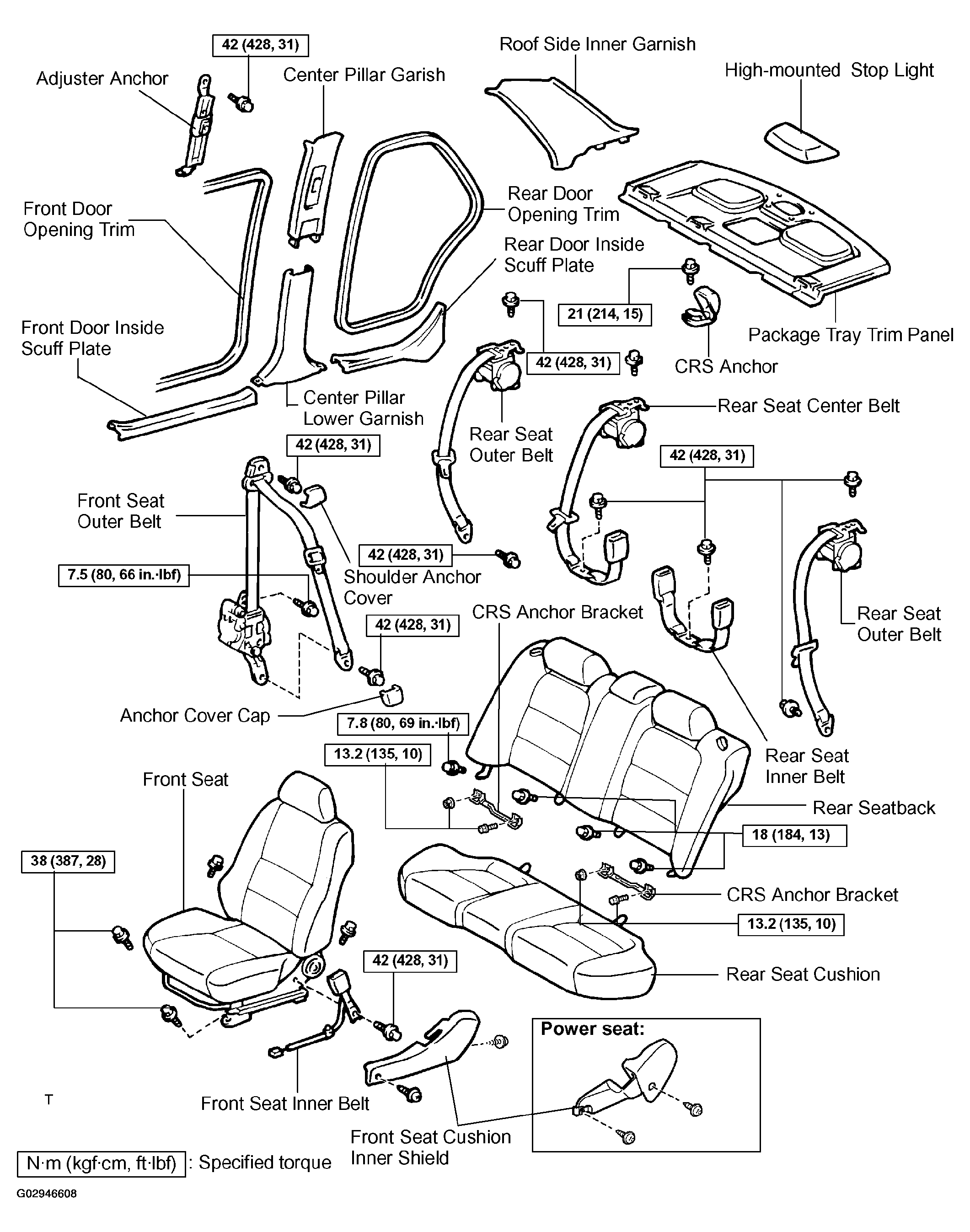

Fig 1: Identifying Component Location Of Seat Belt (Sedan)

G02946608

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
