Differential Mounting Cushion: Components

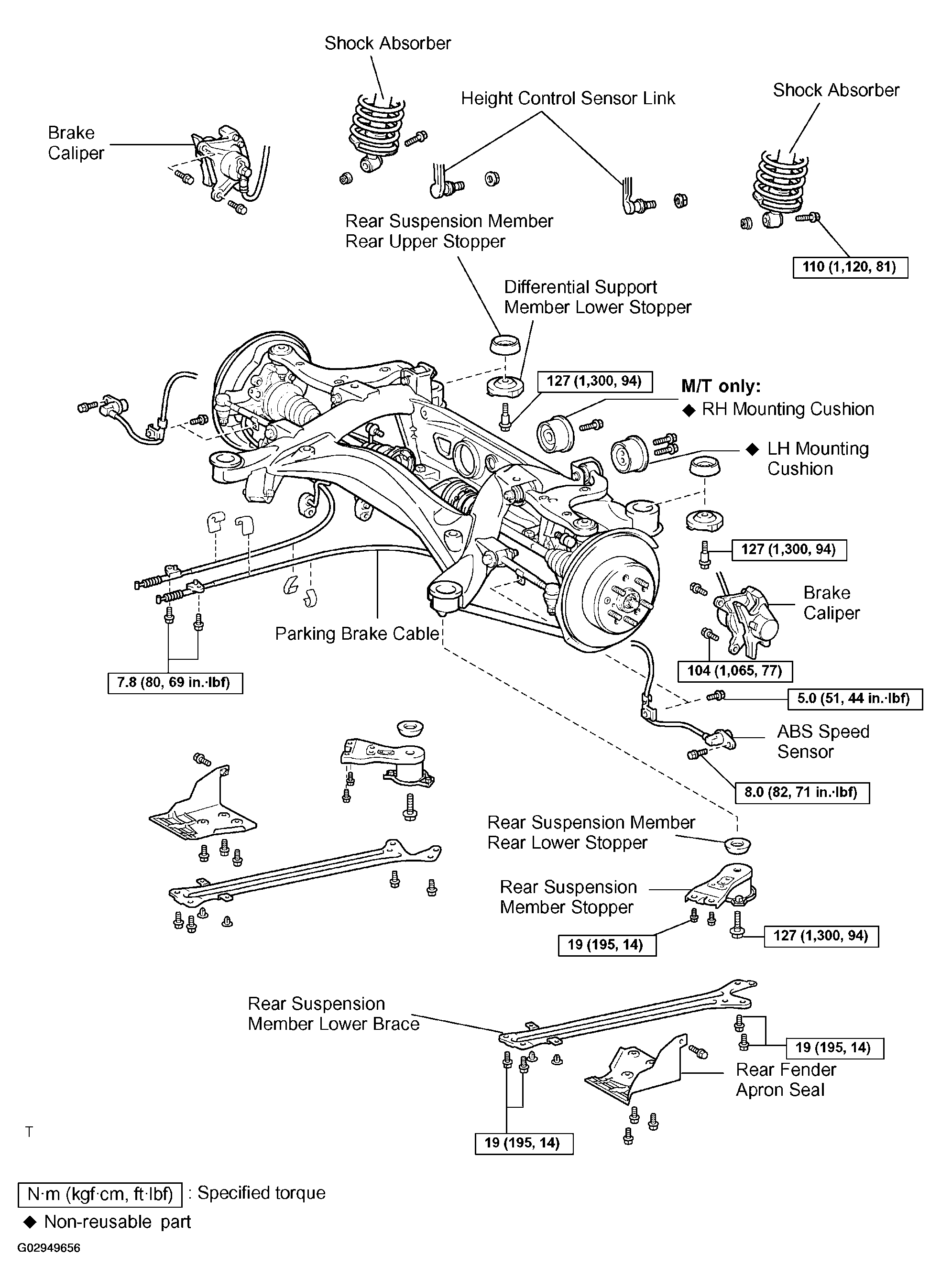

Fig 1: Differential Mounting Cushion Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

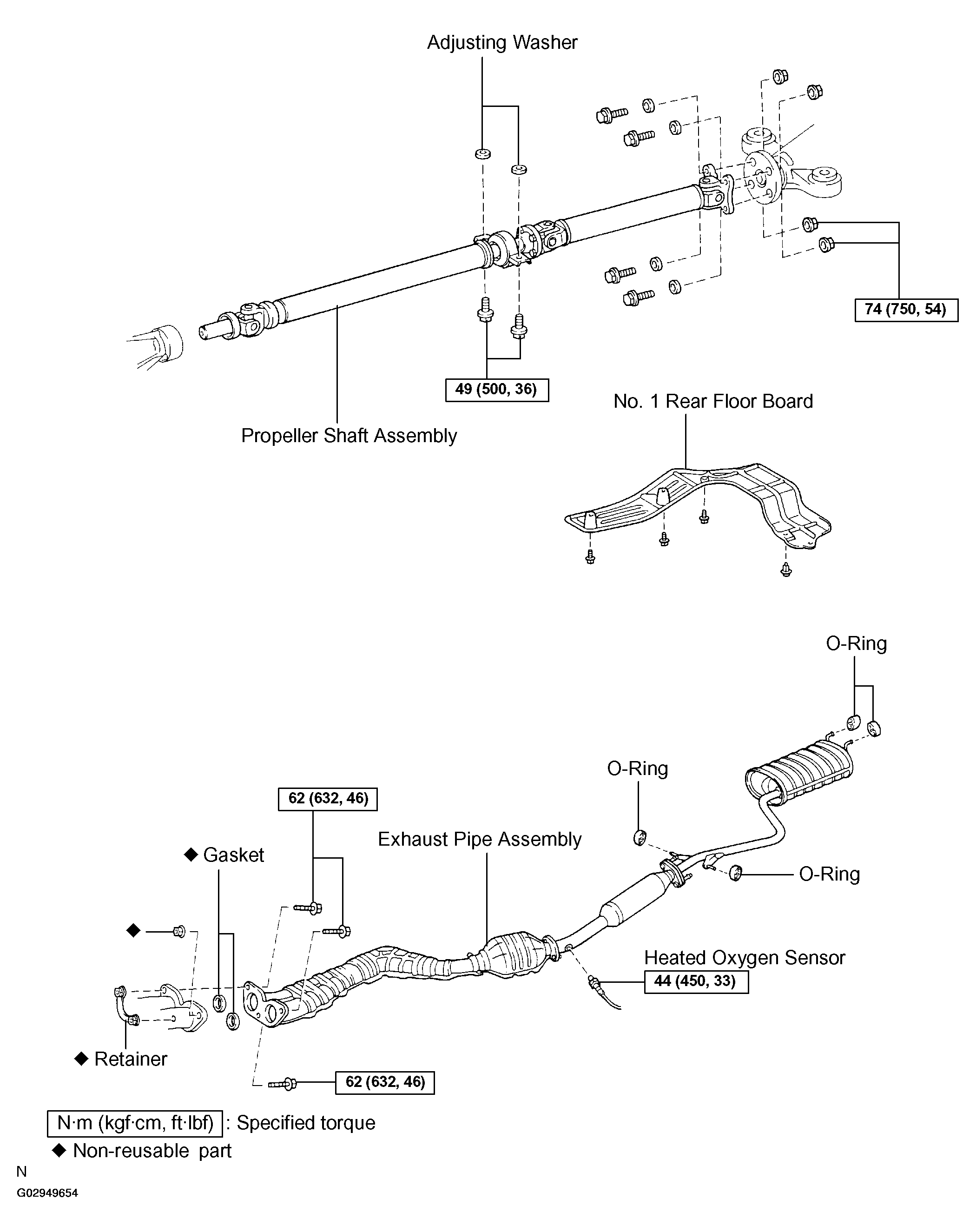

Fig 2: Differential Mounting Cushion Replacement Components With Torque Specifications (2 Of 3)

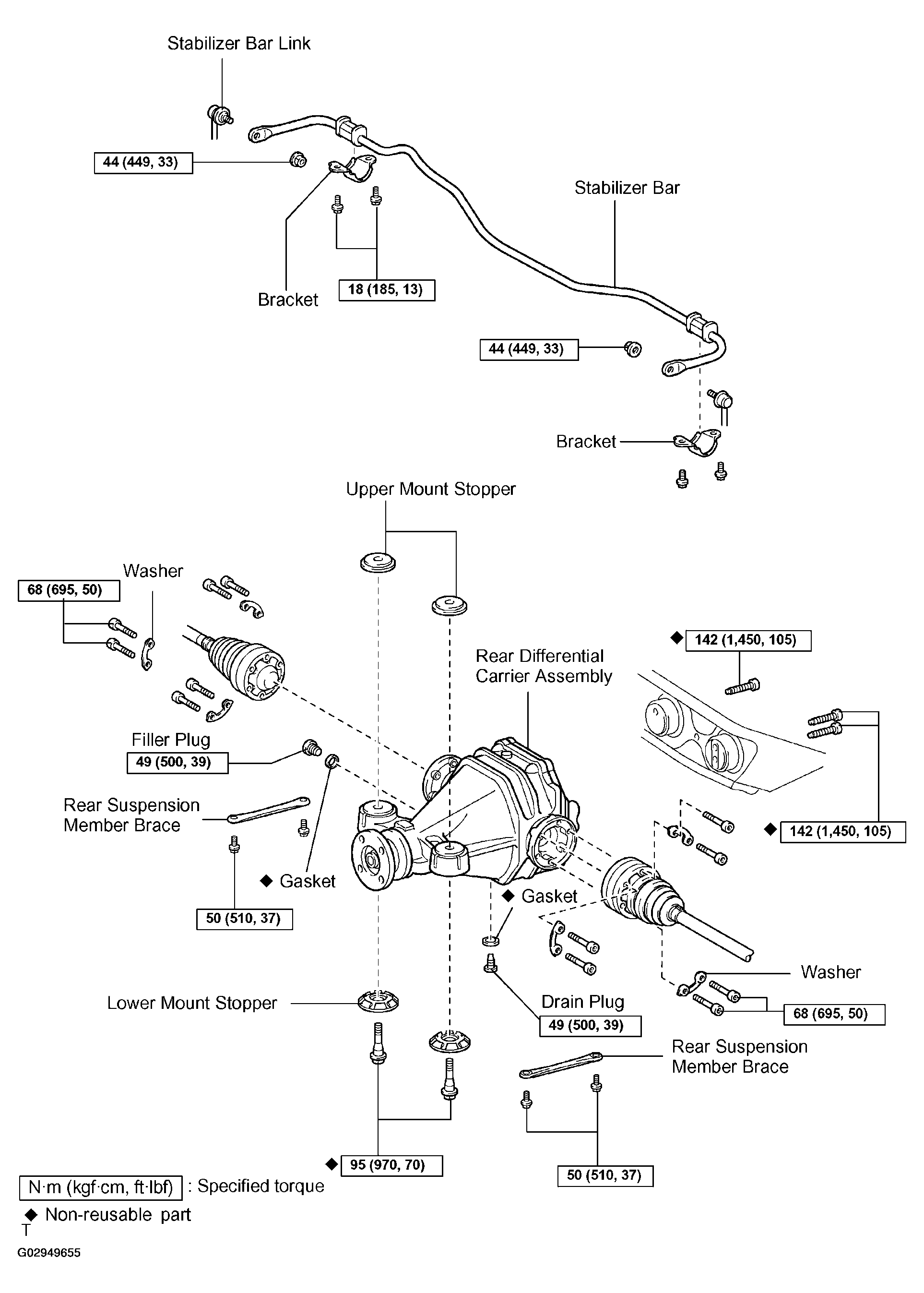

Fig 3: Differential Mounting Cushion Replacement Components With Torque Specifications (3 Of 3)
