Front Axle Hub: Disassembly

Using a screwdriver and hammer, remove the grease cap from the steering knuckle.

1. Mount the axle hub in a soft jaw vise.

   HINT:

   Close the vise until it holds hub bolts. Do not tighten further.

2. Using a chisel and hammer, loosen the staked part of the lock nut.
3. Using a socket wrench (32 mm), remove the lock nut.
Fig 1: Removing Lock Nut Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 4 bolts and shift the brake dust cover toward the outside.
2. Using SST, remove the ABS speed sensor rotor and axle hub from the steering knuckle.
   1. SST 09950-40011 (09951-04020, 09952-04010, 09953-04020, 09954-04010, 09955-04051, 09957-04010, 09958-04011)
   NOTE: Take care not to scratch the serrations of the sensor rotor.

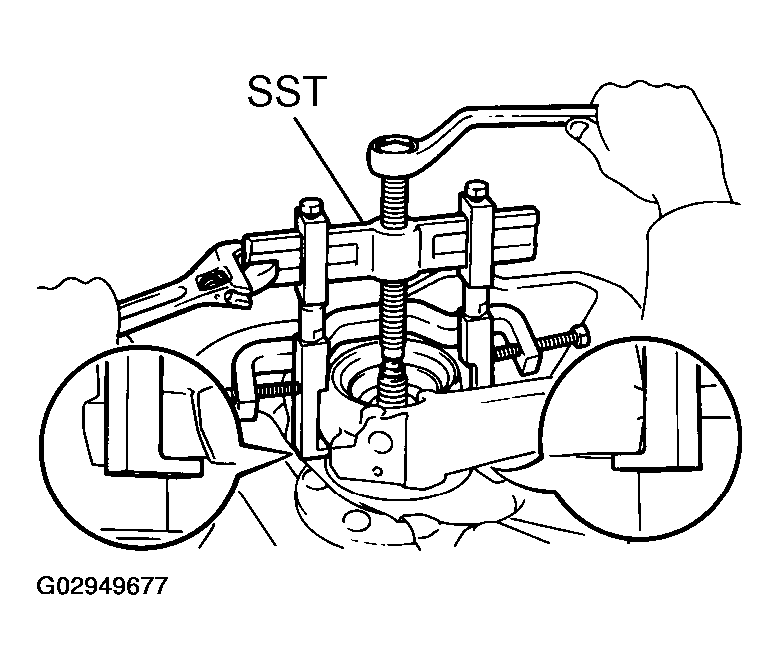

   Fig 2: Removing ABS Speed Sensor Rotor And Axle Hub Using SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the brake dust cover.

Using SST, remove the inner race from the axle hub.

1. SST 09950-00020, 09950-40011 (09951-04020, 09953-04030, 09957-04010), 09950-50013 (09952-05010, 09954-05031, 09955-05040)

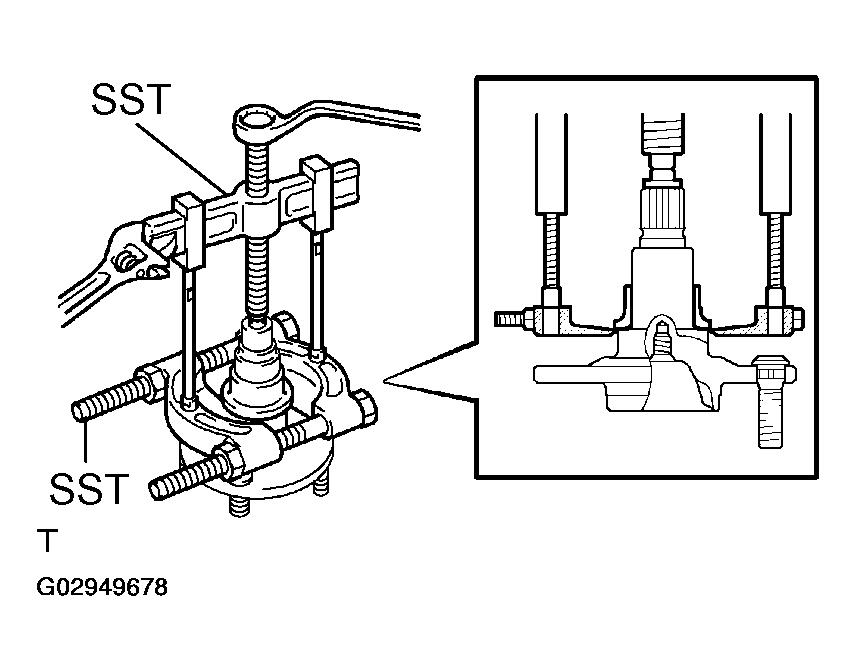

Fig 3: Removing Inner Race From Axle Hub Using SST

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using SST, remove the oil seal from the steering knuckle.

1. SST 09308-00010

Fig 4: Removing Oil Seal From Steering Knuckle Using SST

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using snap ring pliers, remove the snap ring from the steering knuckle.
2. Using SST and a press, remove the bearing from the steering knuckle.
   1. SST 09950-60010 (09951-00560), 09950-70010 (09951-07150)
   Fig 5: Removing Bearing From Steering Knuckle Using SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
