Front Axle Hub: Reassembly

1. Using SST and a press, install a new bearing to the steering knuckle.
   1. SST 09502-24010, 09950-60020 (09951-00710), 09950-70010 (09951-07150)
   NOTE: If the inner race and balls come loose from the bearing outer race, make sure that they are installed on the same side as before.
   Fig 1: Installing Bearing To Steering Knuckle Using SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using snap ring pliers, install a new snap ring to the steering knuckle.

1. Using SST and a hammer, install a new oil seal until it is flush with the end surface of the steering knuckle.
   1. SST 09608-32010
   Fig 2: Using SST And Hammer To Install New Oil Seal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Coat MP grease to the oil seal lip.

1. Install the brake dust cover to the steering knuckle with the 4 bolts.
   1. Torque: 8.3 N.m (85 kgf.cm, 74 in.lbf)
2. Using SST and a press, install the axle hub to the steering knuckle.
   1. SST 09316-60011 (09316-00011, 09316-00071), 09608-32010

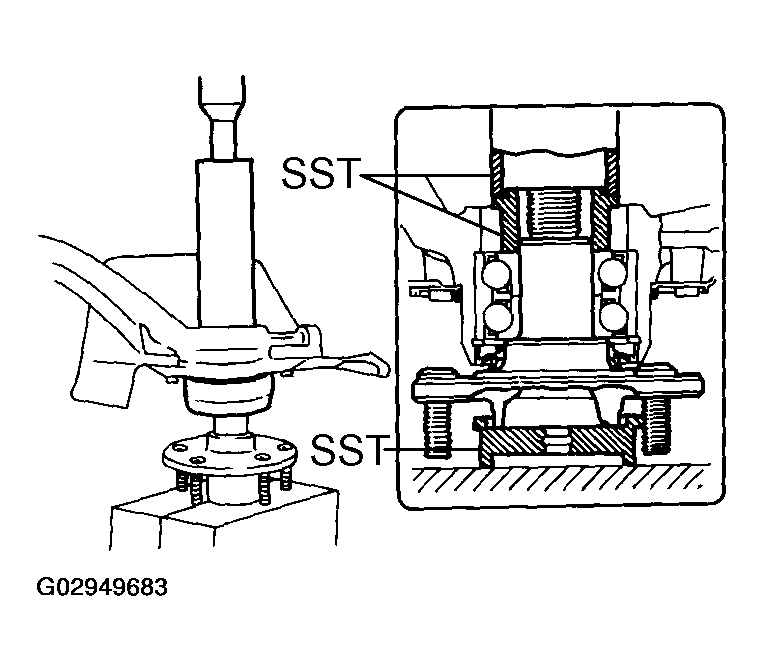

   Fig 3: Using SST And Press To Install Axle Hub To Steering Knuckle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the speed sensor rotor to the steering knuckle with its concave surface facing to the inner side.

1. Using a socket wrench (32 mm), install a new lock nut.
   1. Torque: 147 N.m (1,500 kgf.cm, 108 ft.lbf)
2. Using a chisel and hammer, stake the lock nut.

Using a screwdriver and hammer, install the grease cap to the steering knuckle.
