Front Lower Suspension Arm: Components

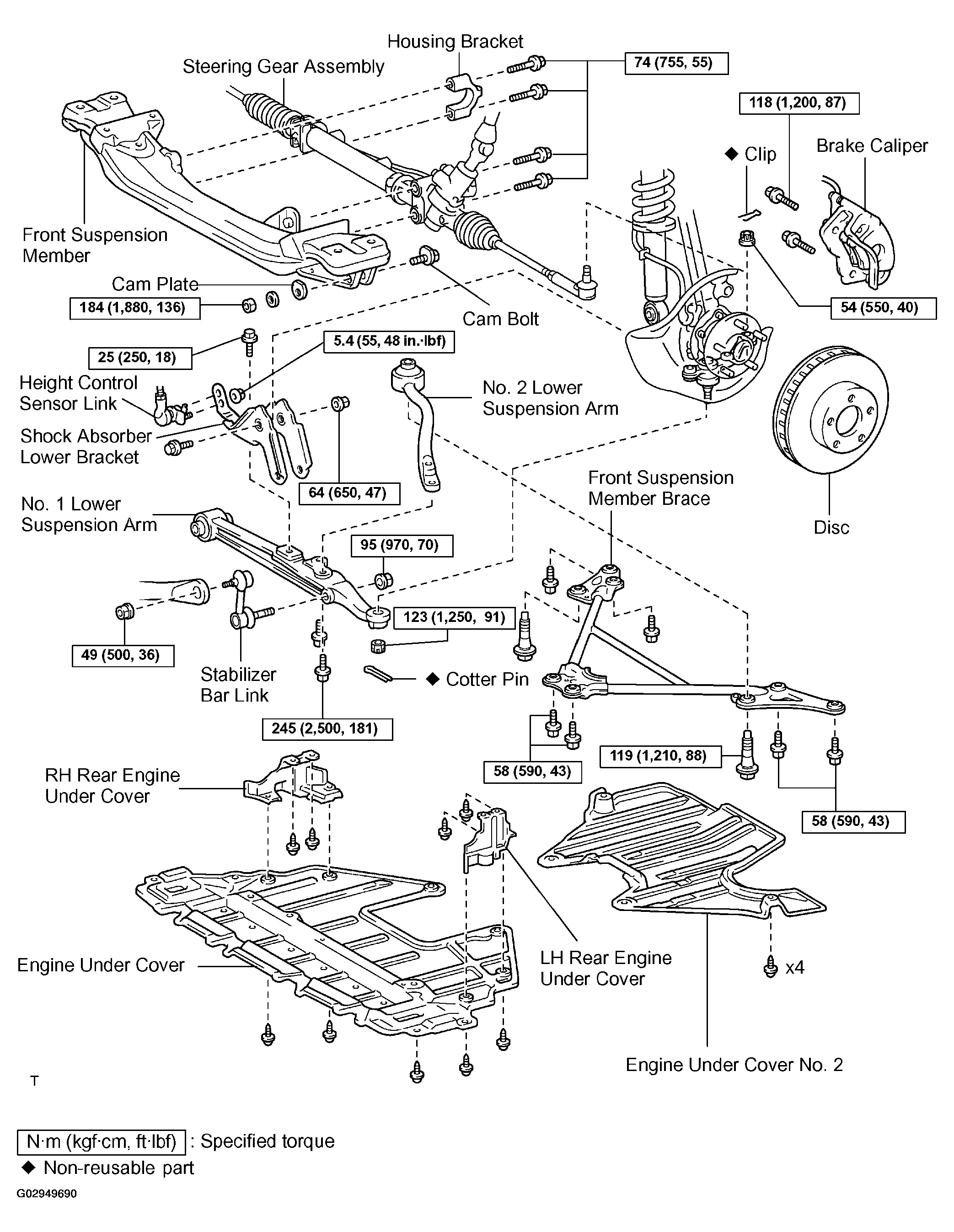

Fig 1: Exploded View Of Front Lower Suspension Arm Components With Torque Specifications
G02949690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
