Home › Lexus › 2005 › IS 300 Base, Automatic › Repair and Diagnosis › Suspension › Wheel Alignment › Suspension And Axle › Front Shock Absorber › Components

Front Shock Absorber: Components

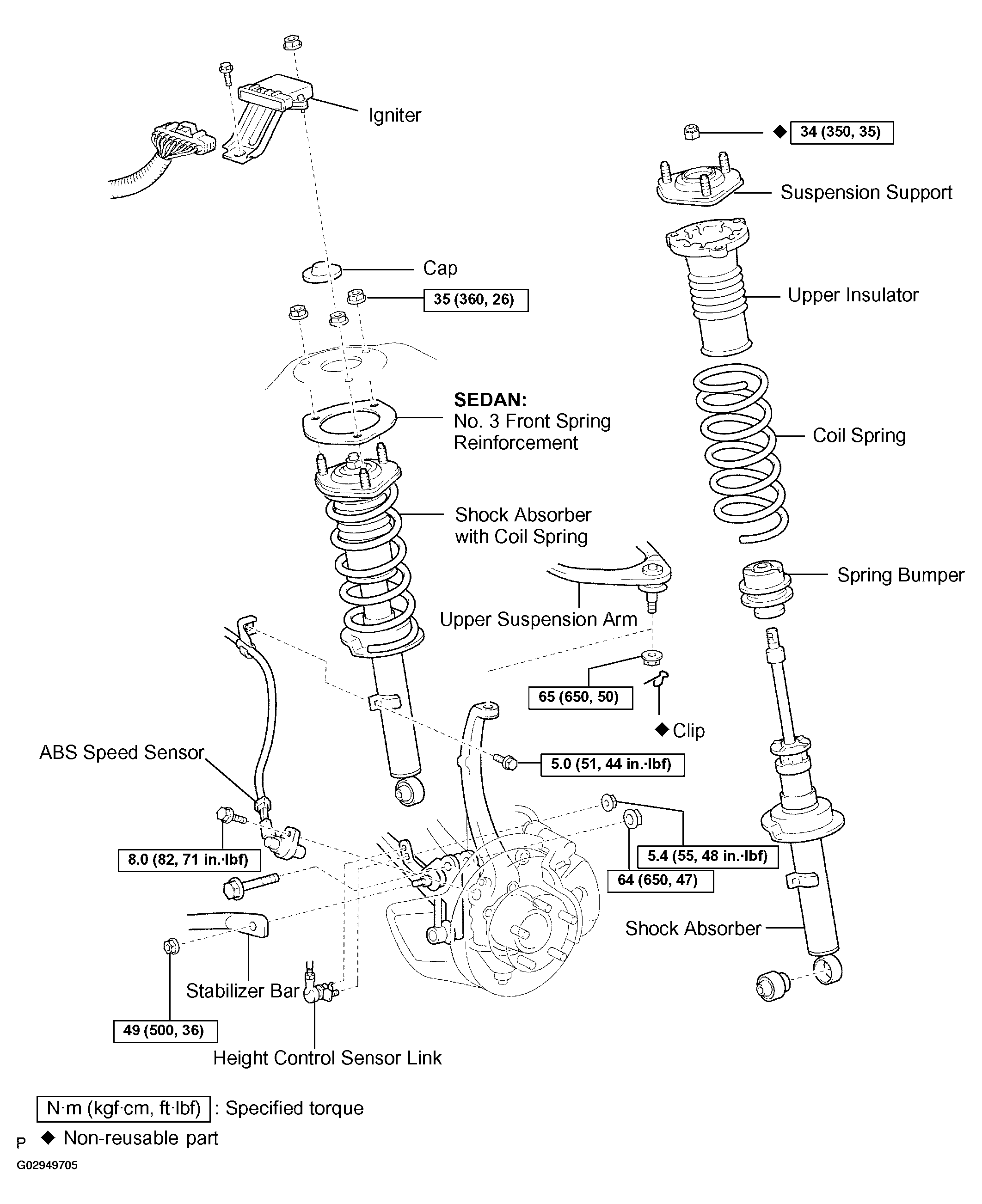

Fig 1: Front Shock Absorber Replacement Components With Torque Specifications
G02949705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
