Automatic Transmission Unit: Components

Fig 1: Exploded View Of Automatic Transmission Unit With Torque Specifications (1 Of 2)
G02946004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

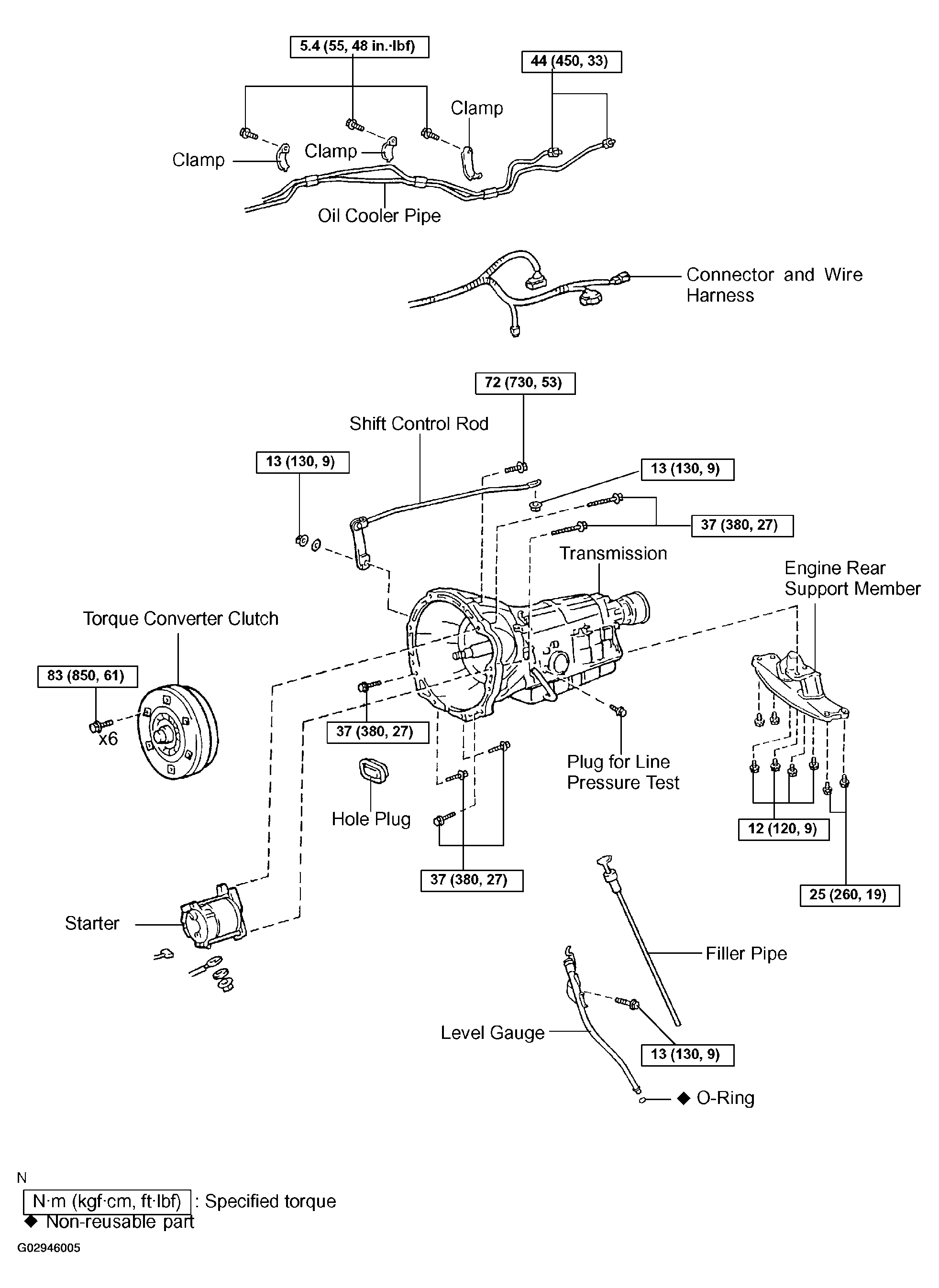

Fig 2: Exploded View Of Automatic Transmission Unit With Torque Specifications (2 Of 2)
G02946005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
