Automatic Transmission - Diagnostics
›
Problem Symptoms Table
›
Transmission Shift Switch Circuit
›
Wiring Diagram
Transmission Shift Switch Circuit: Wiring Diagram

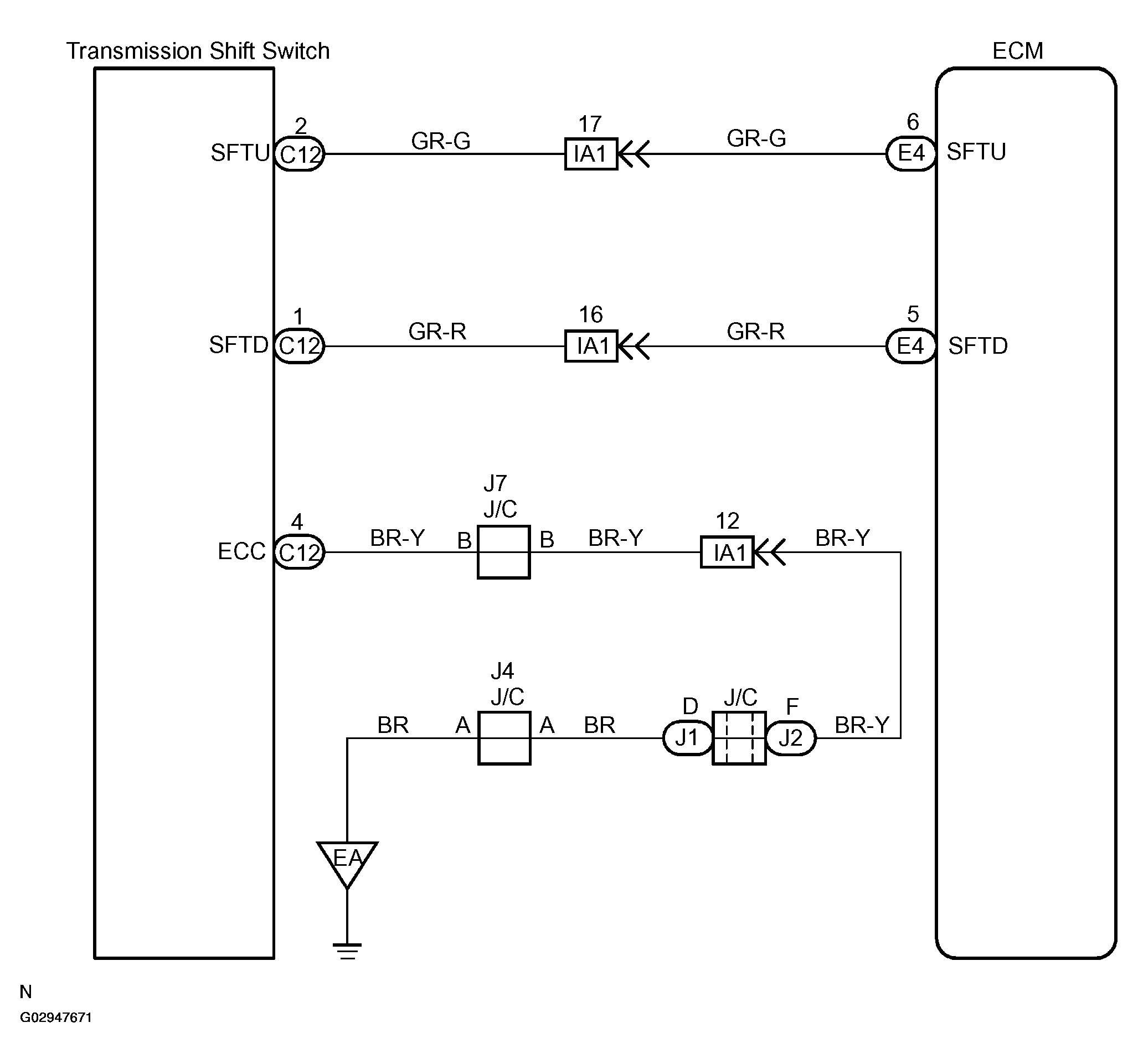

Fig 1: Wiring Diagram - Transmission Shift Switch Circuit
