Power Source: Location — 2005 Lexus IS 300 Base, Standard Service Manual ~ FixVault

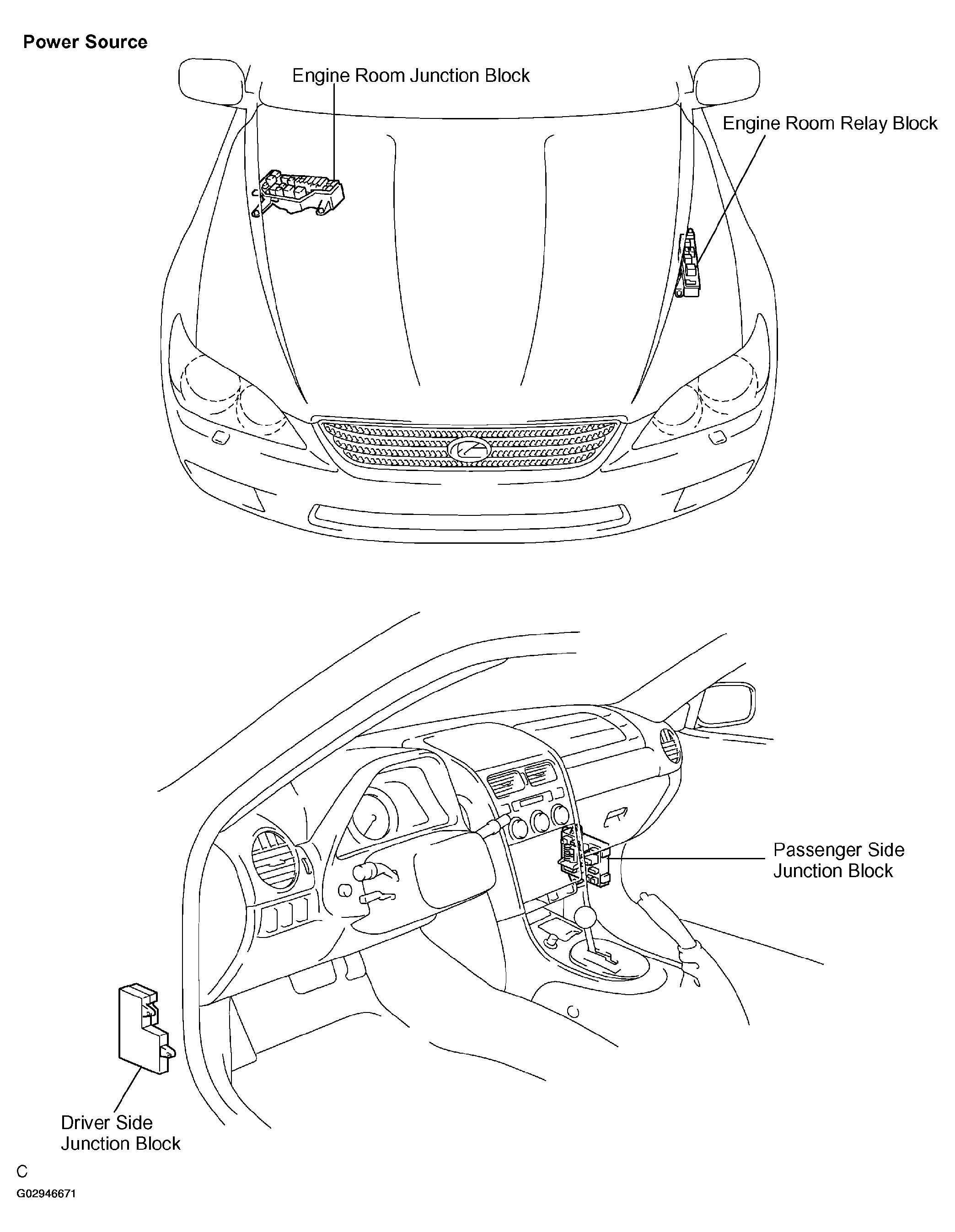

Fig 1: Identifying Location Of Power Source Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

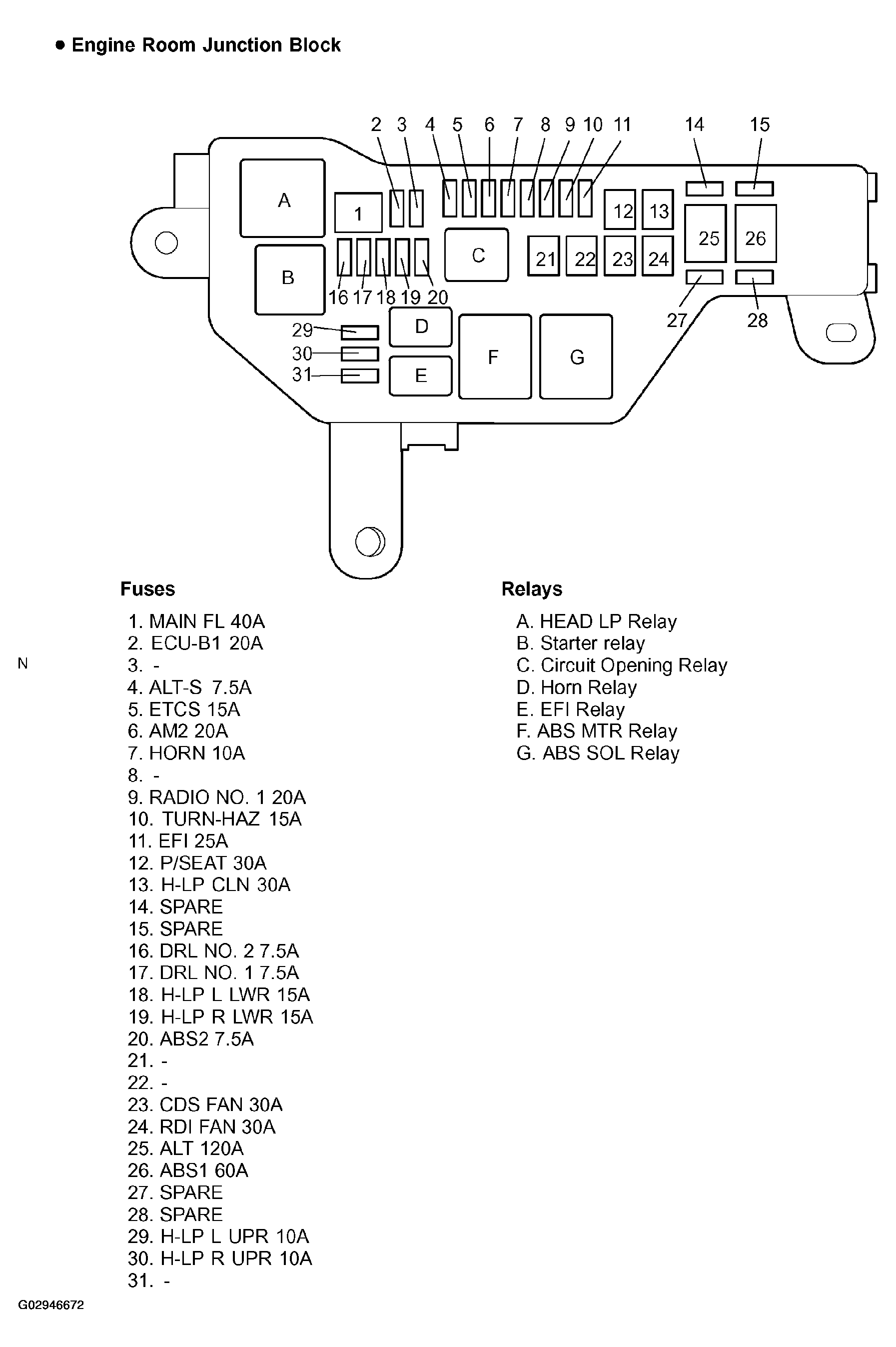

Fig 2: Identifying Engine Room Junction Block

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Engine Room Relay Block

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

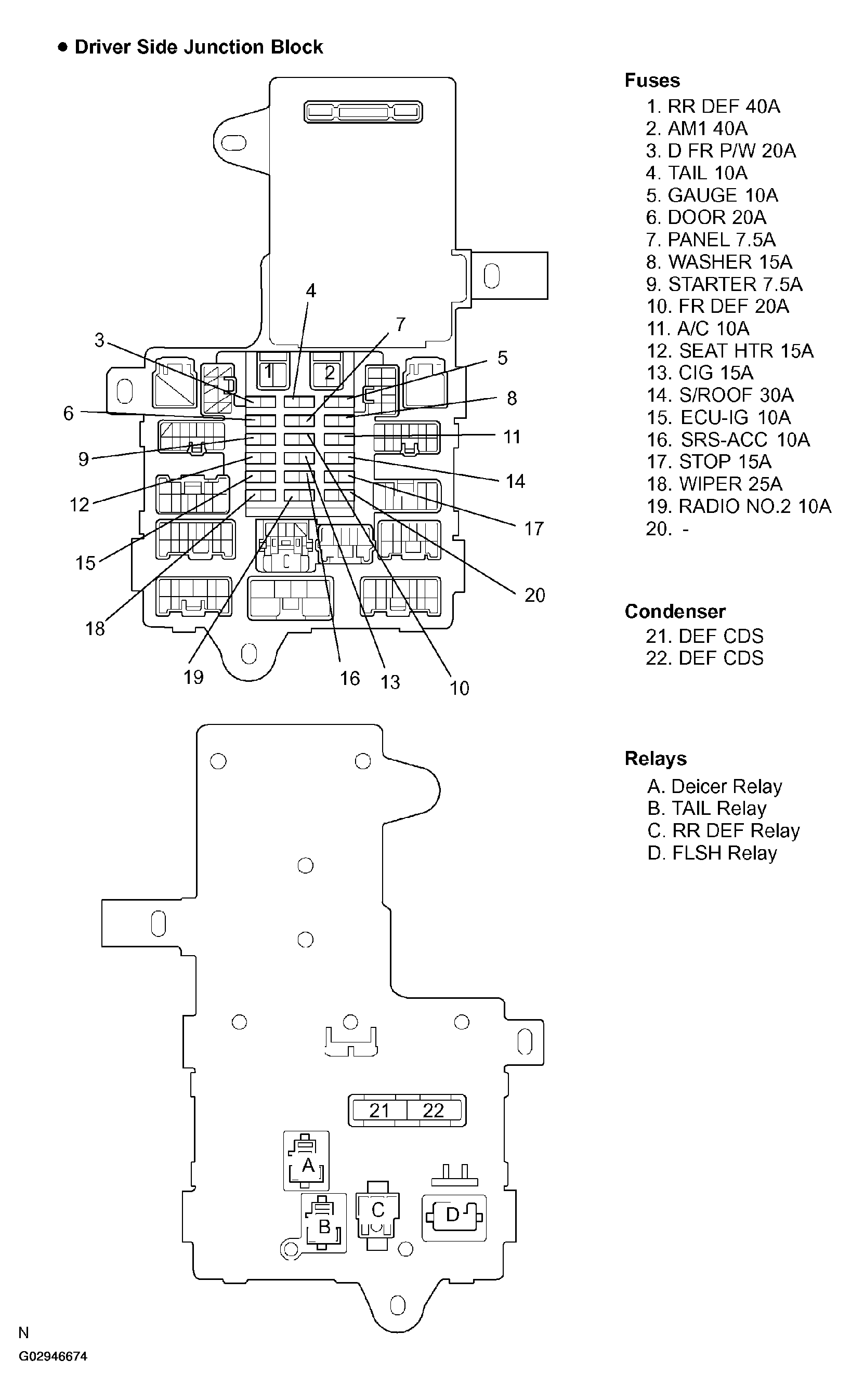

Fig 4: Identifying Driver's Side Junction Block

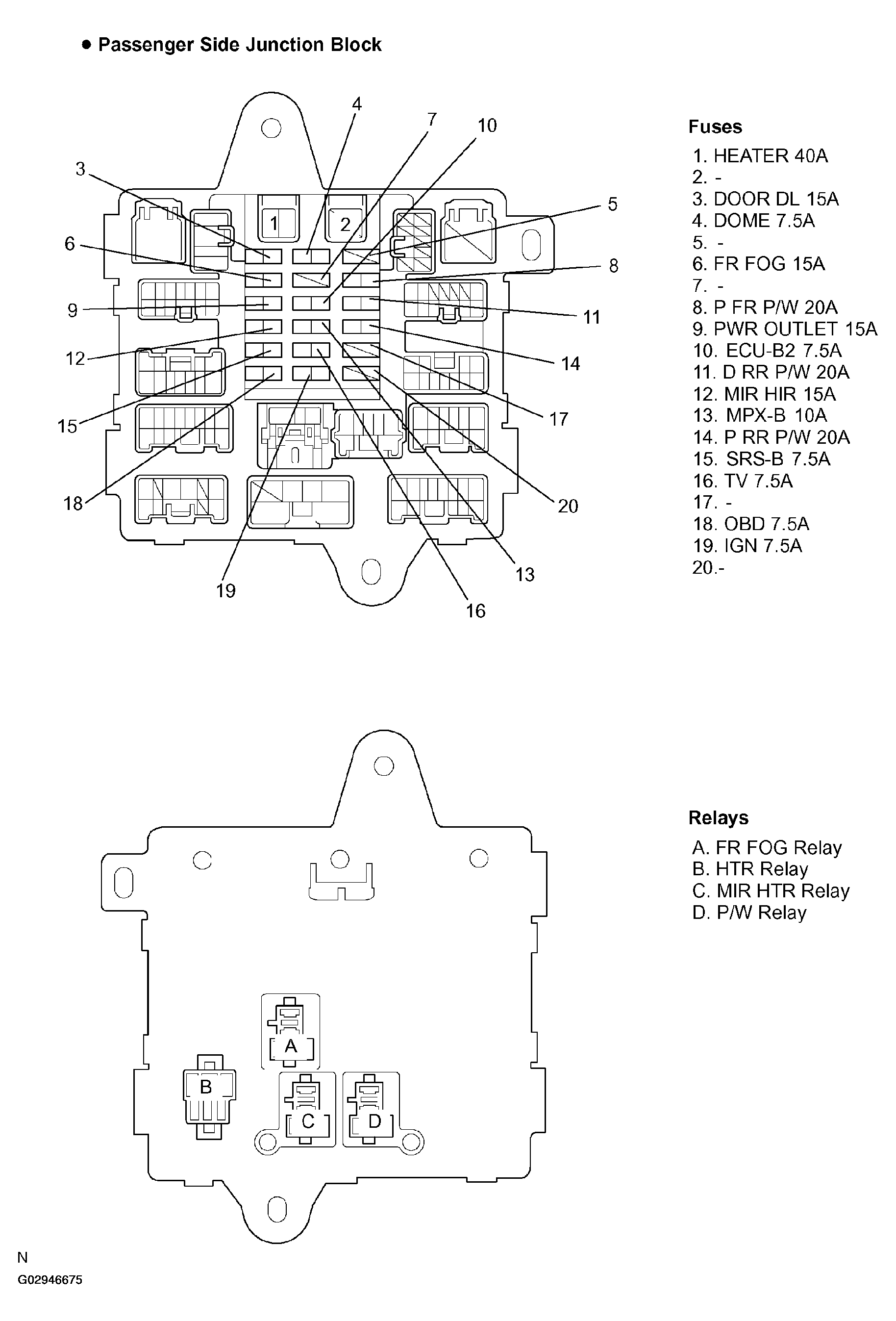

Fig 5: Identifying Passenger's Side Junction Block
