Evaporative Emission (EVAP) Control System: Components

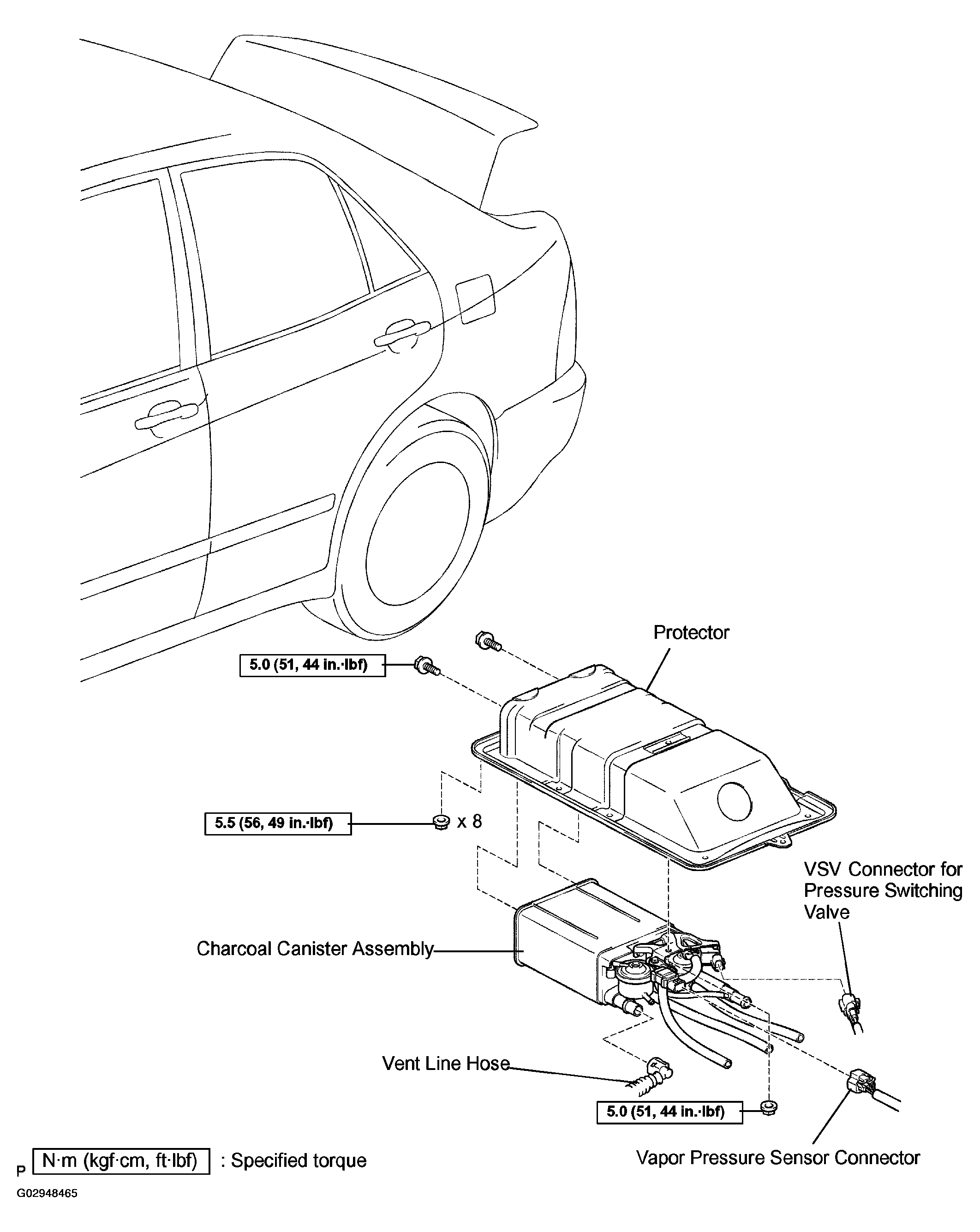

Fig 1: EVAP Control System Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
