Three-Way Catalytic Converter (TWC) System: Components

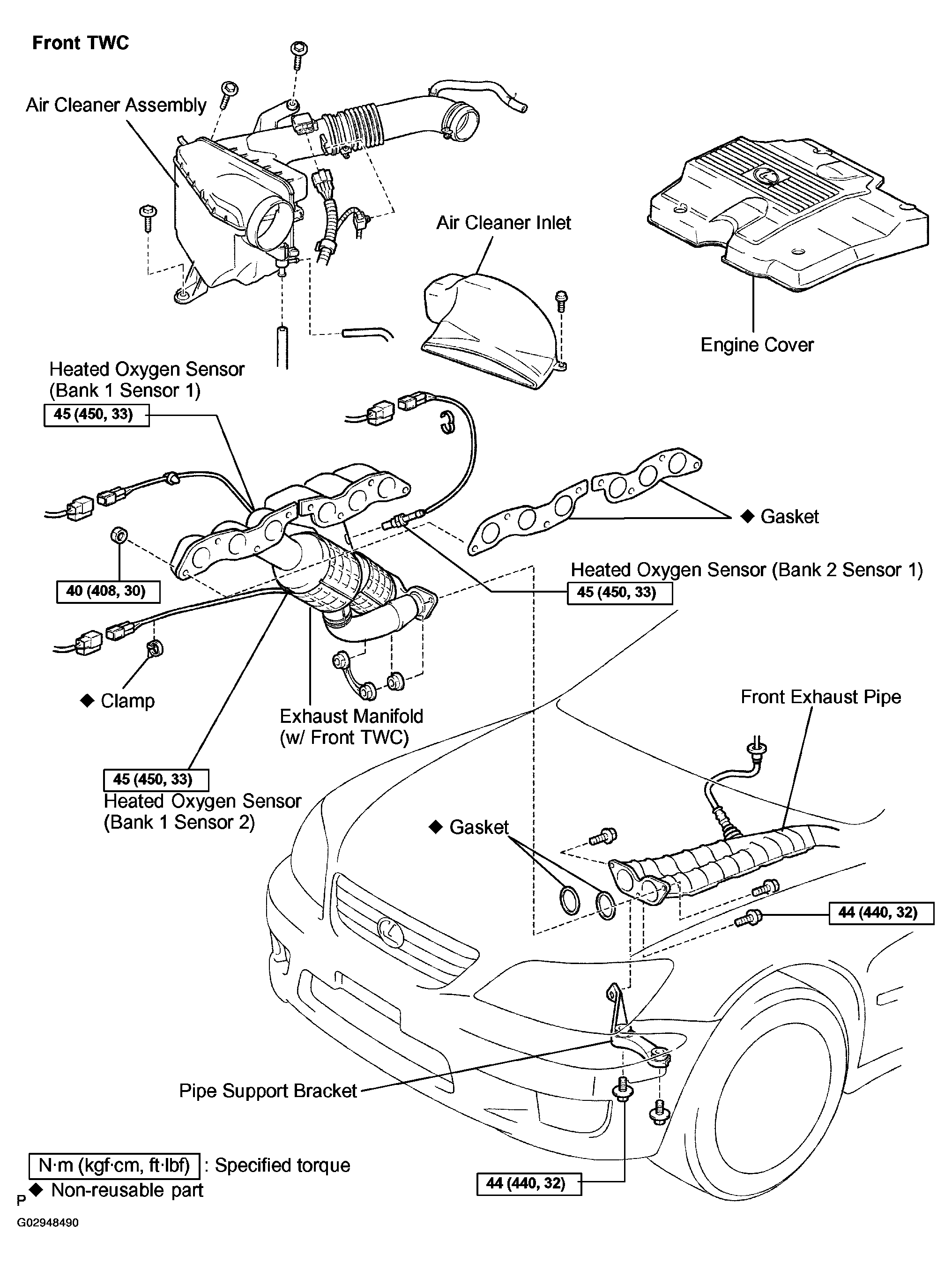

Fig 1: Exploded View Of TWC Converter System Components With Torque Specifications (Front TWC)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

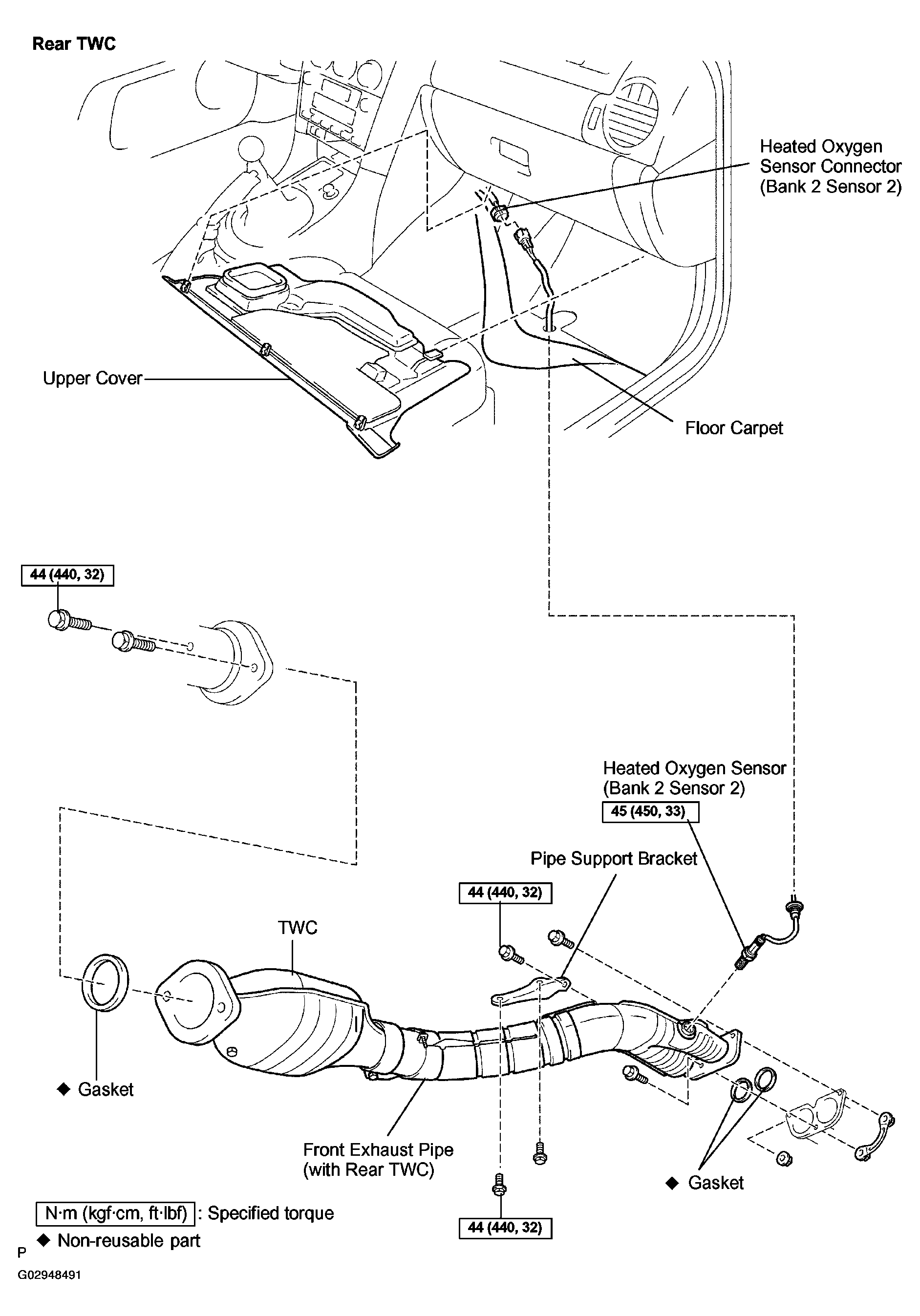

Fig 2: Exploded View Of TWC Converter System Components With Torque Specifications (Rear TWC)
