Air Conditioning Control Assembly: Components

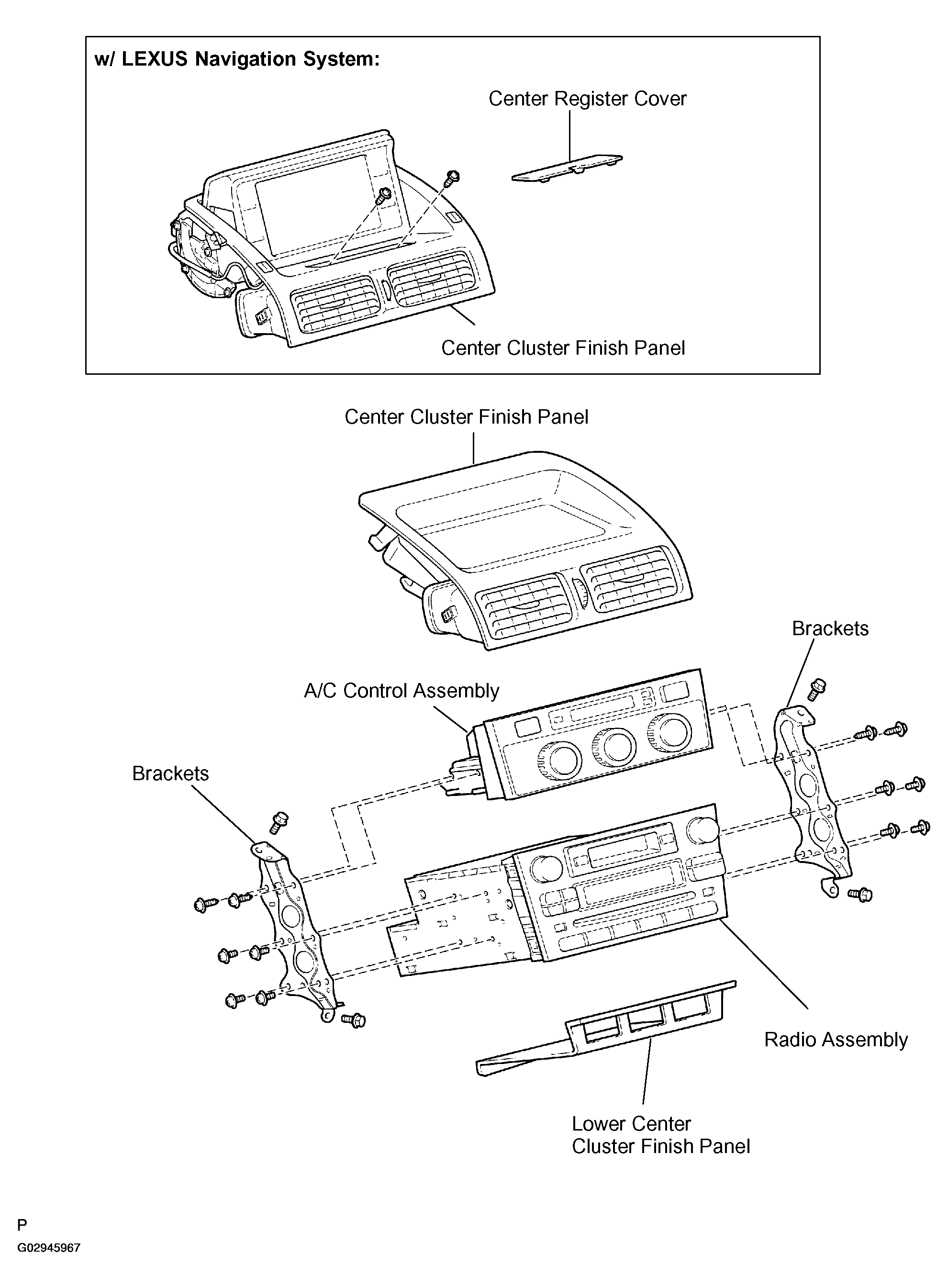

Fig 1: Identifying Component Location Of A/C Control Assembly (1 Of 2)
G02945967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

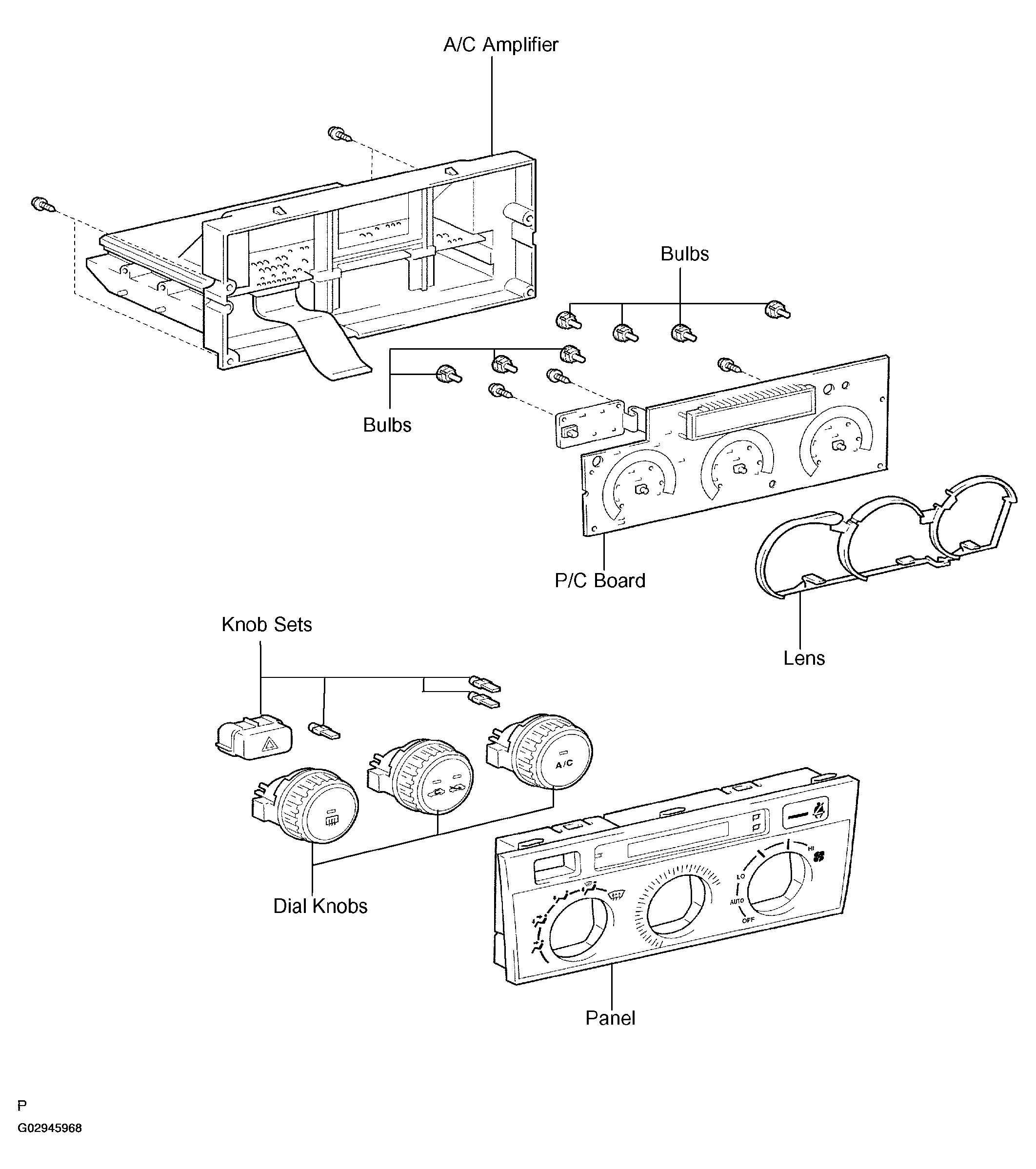

Fig 2: Identifying Component Location Of A/C Control Assembly (2 Of 2)
G02945968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
