Air Conditioning Unit: Components

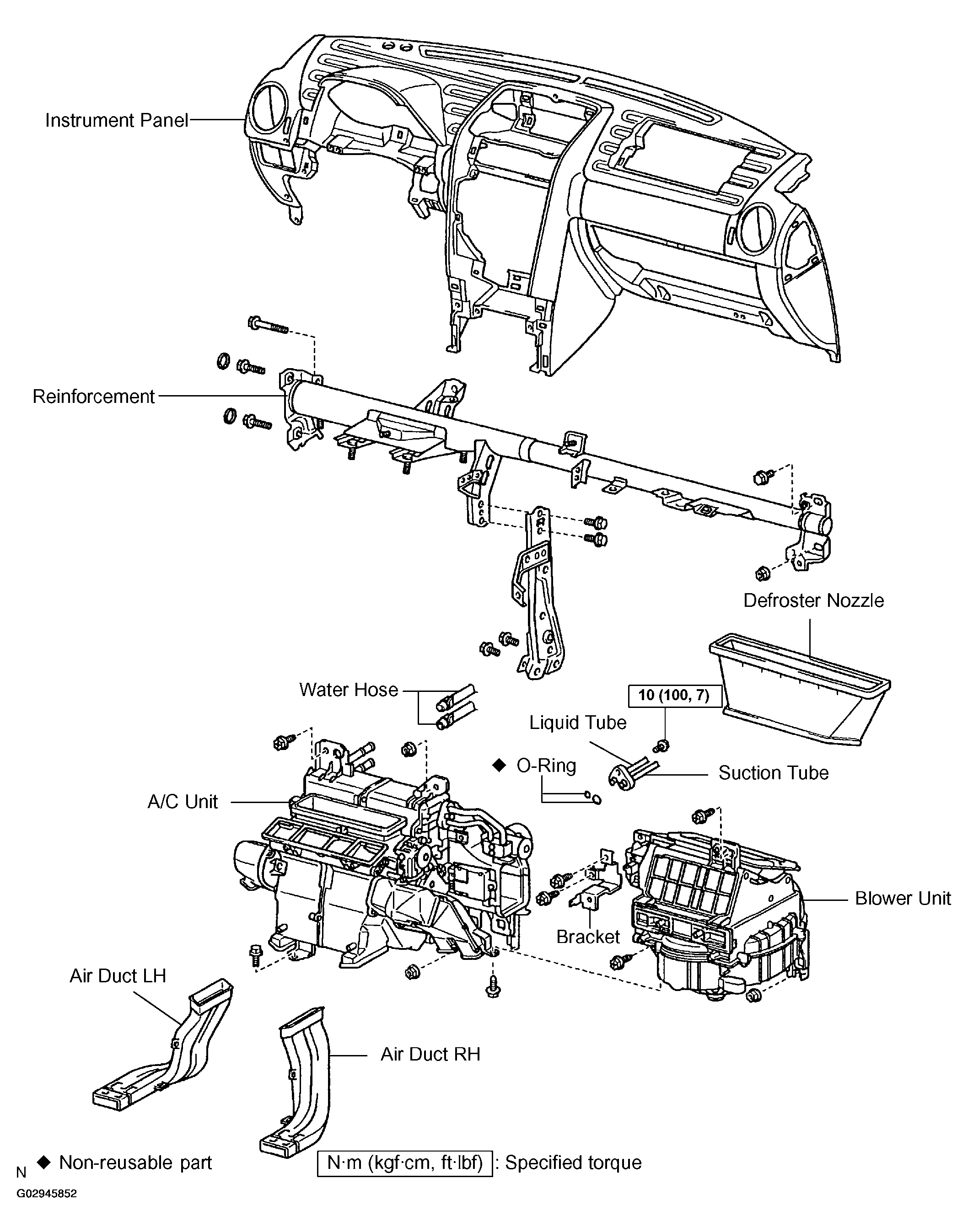

Fig 1: Component Location Of Air Conditioning Unit With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

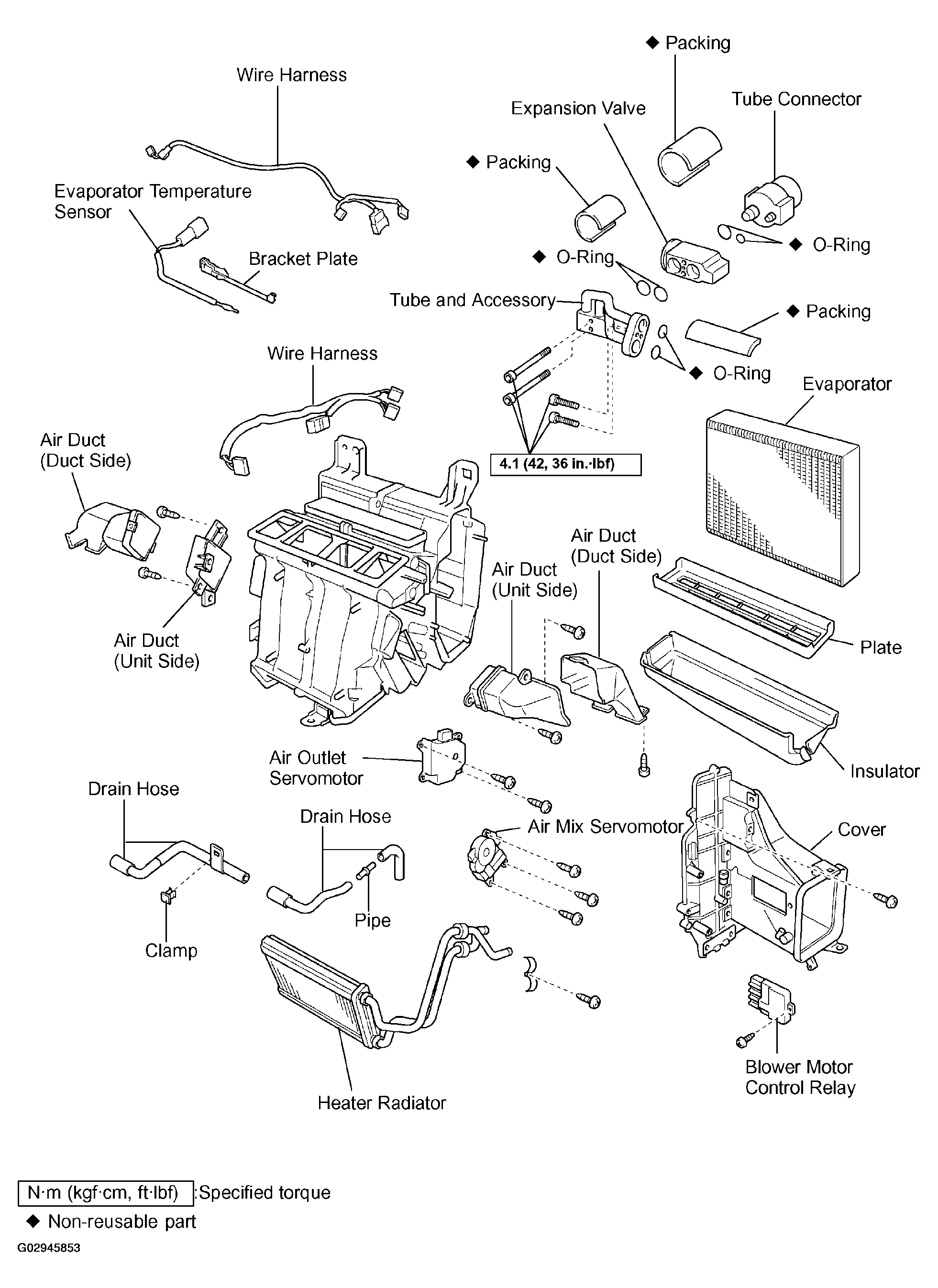

Fig 2: Component Location Of Air Conditioning Unit With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
