Blower Unit: Components

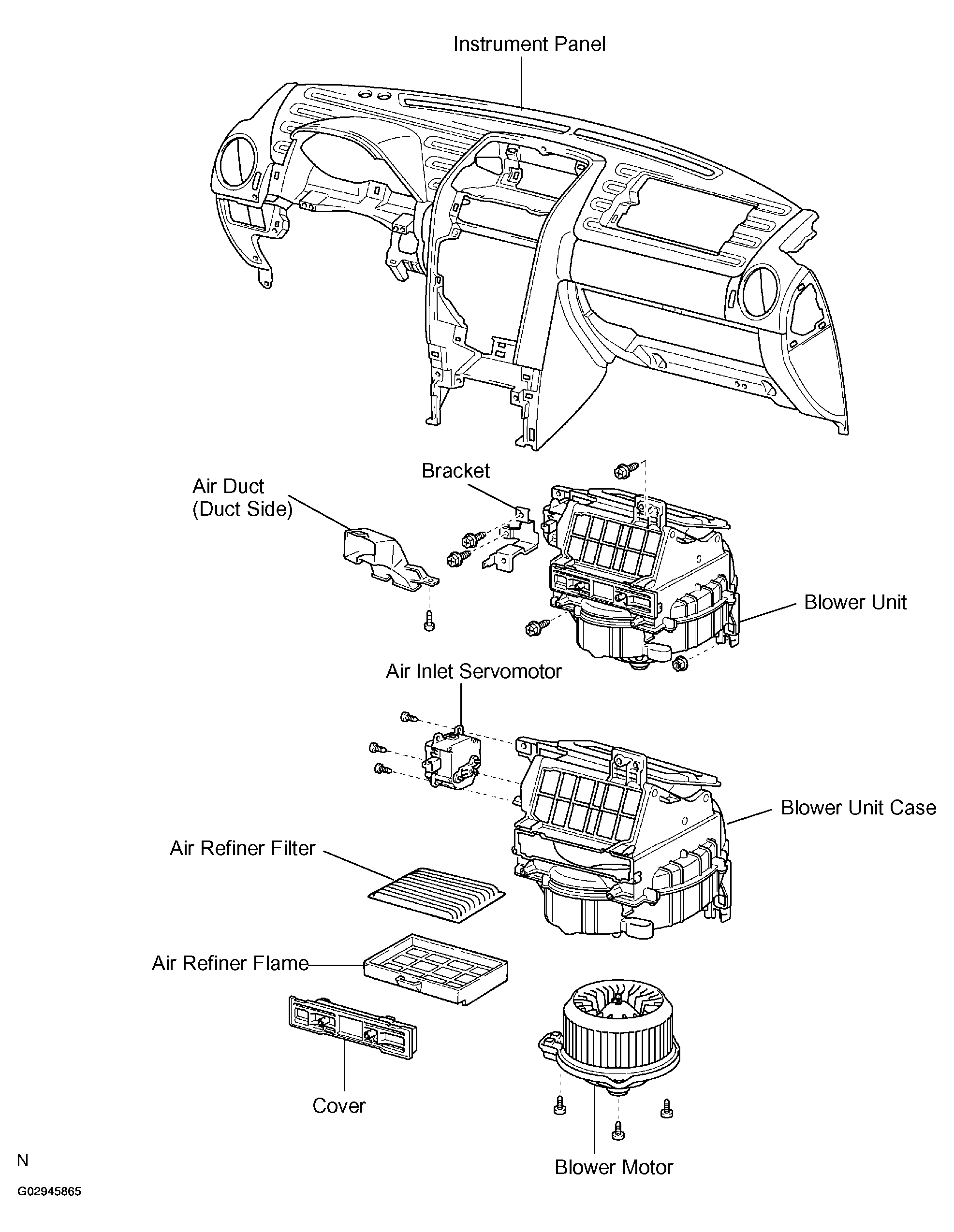

Fig 1: Identifying Component Location Of Blower Unit
G02945865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
