Air Conditioning: Condenser: Components

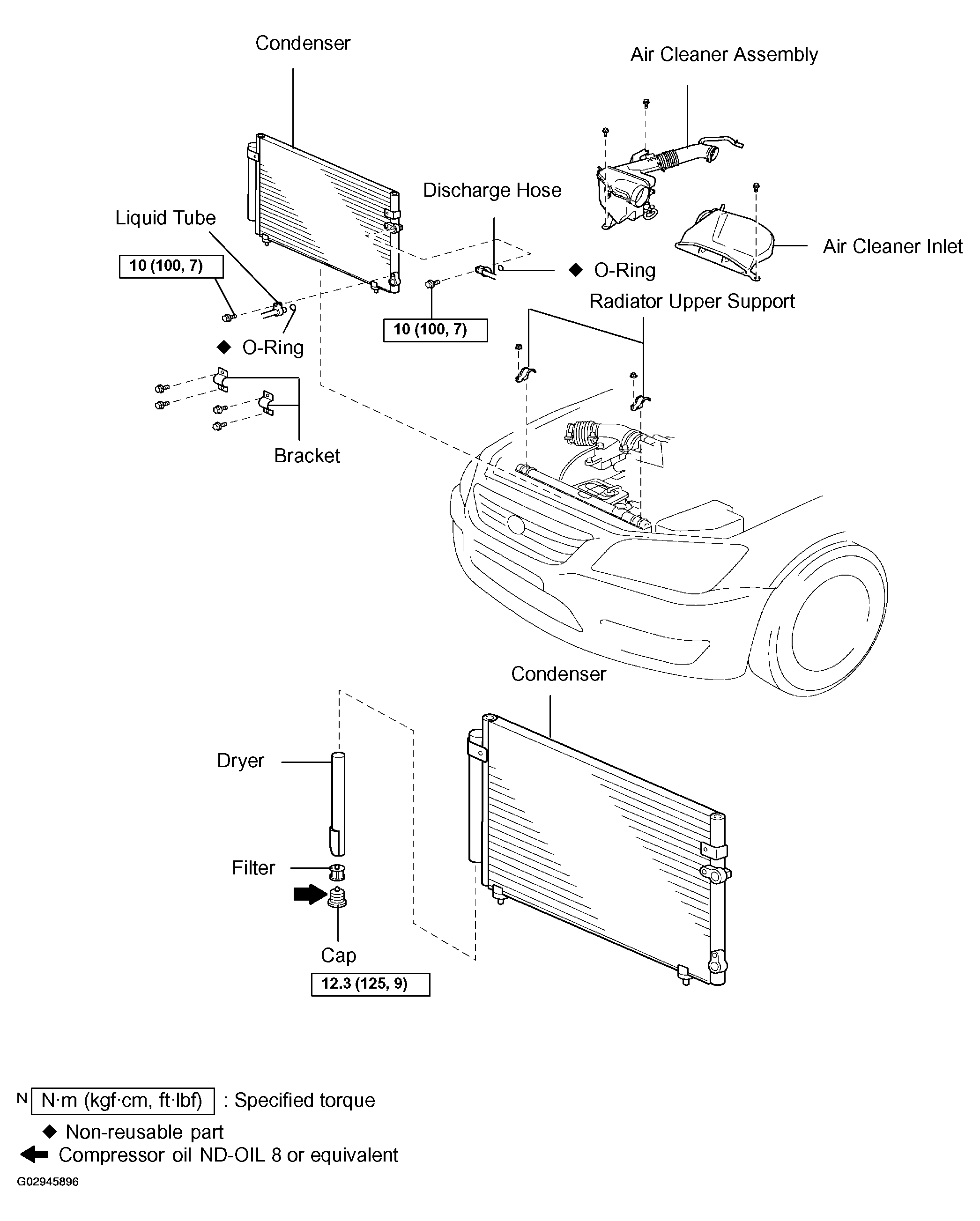

Fig 1: Component Location Of Condenser With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
