Airbag Sensor Assembly: Components

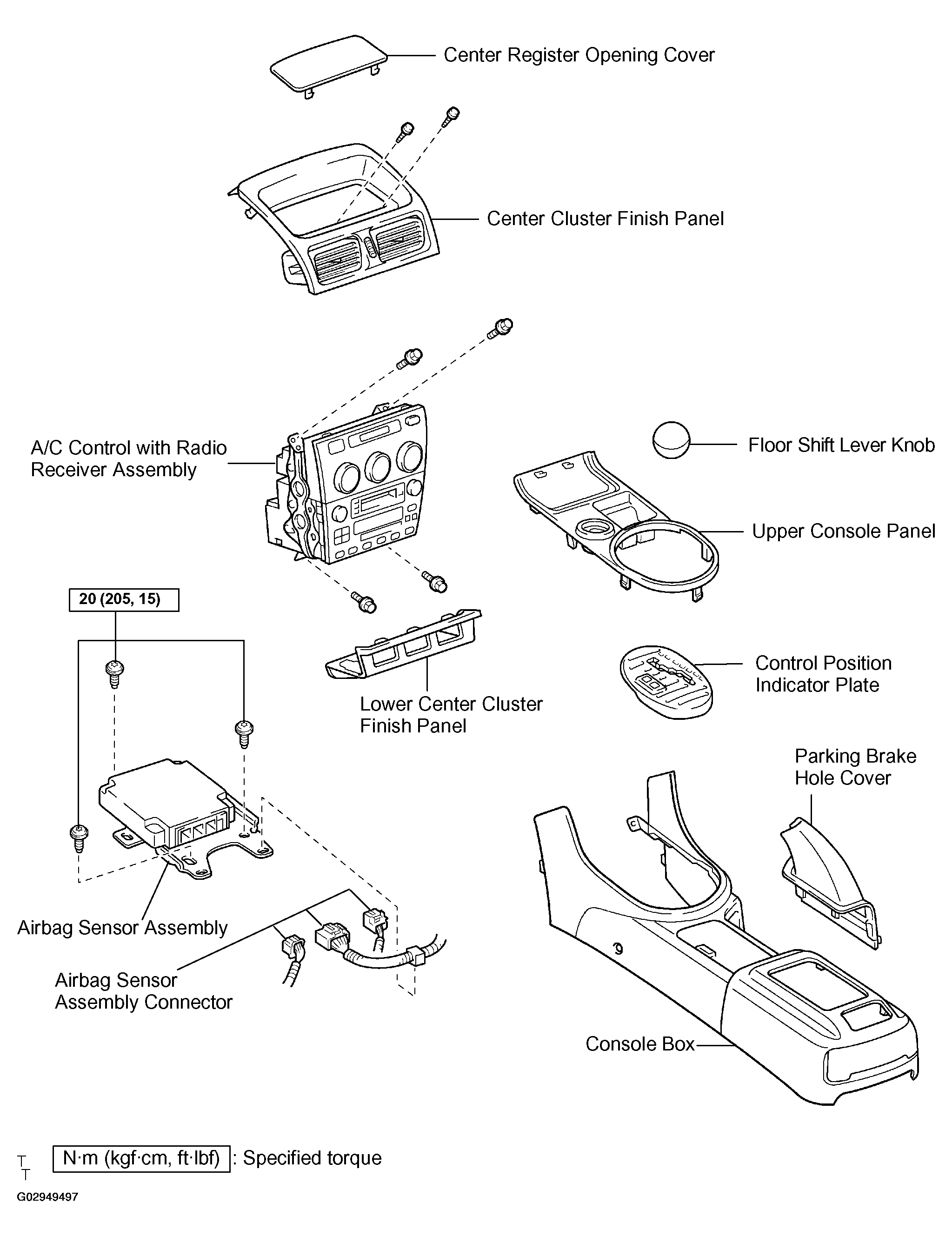

Fig 1: Identifying Airbag Sensor Assembly Components & Replacements
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
