Home › Lexus › 2005 › IS 300 Base, Standard › Repair and Diagnosis › Transmission › Clutch › M/T Clutch › Clutch Unit › Components

Clutch Unit: Components

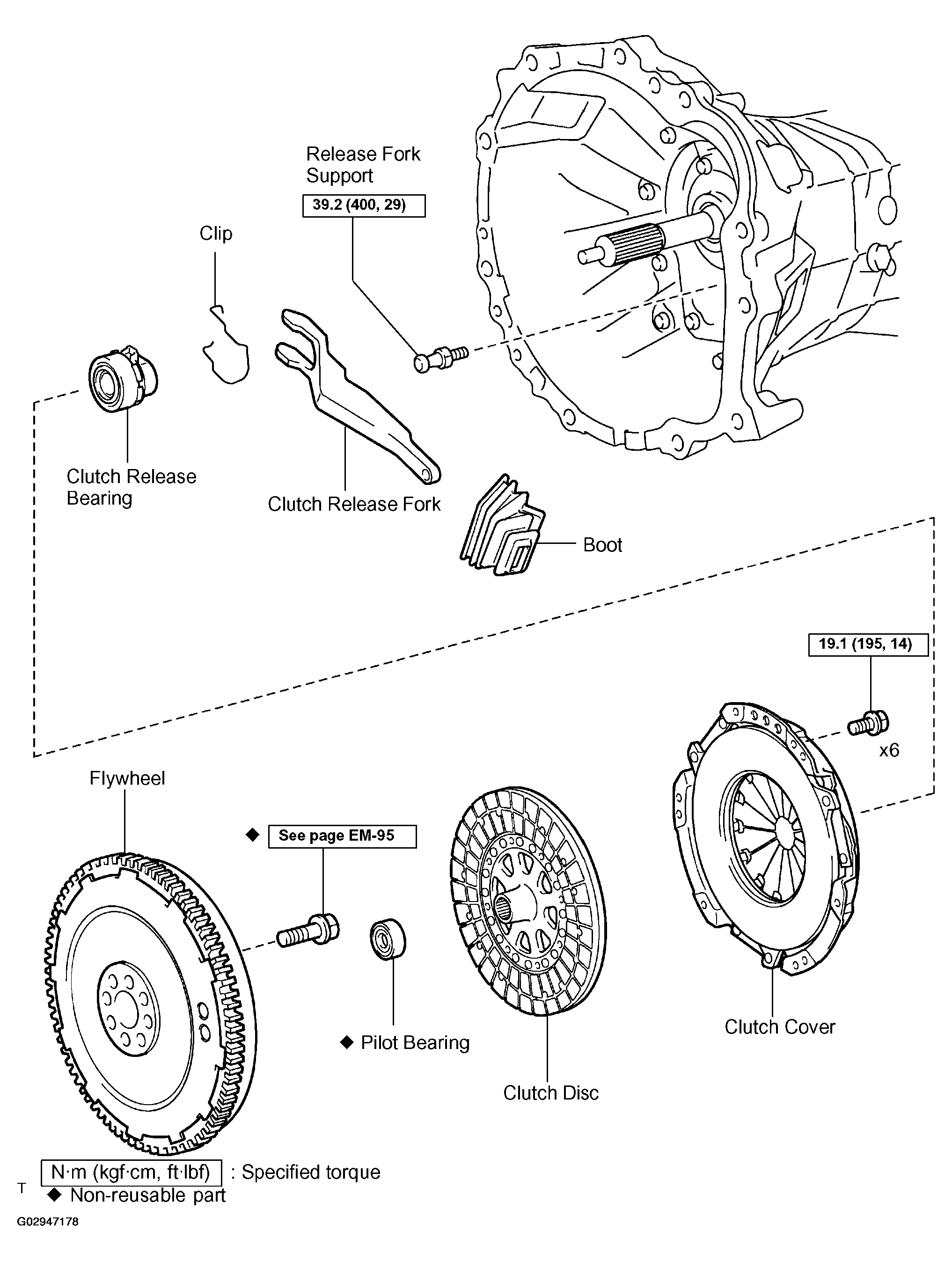

Fig 1: Exploded View Of Clutch Unit With Torque Specifications
G02947178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
