Power Door Lock Control System: Location

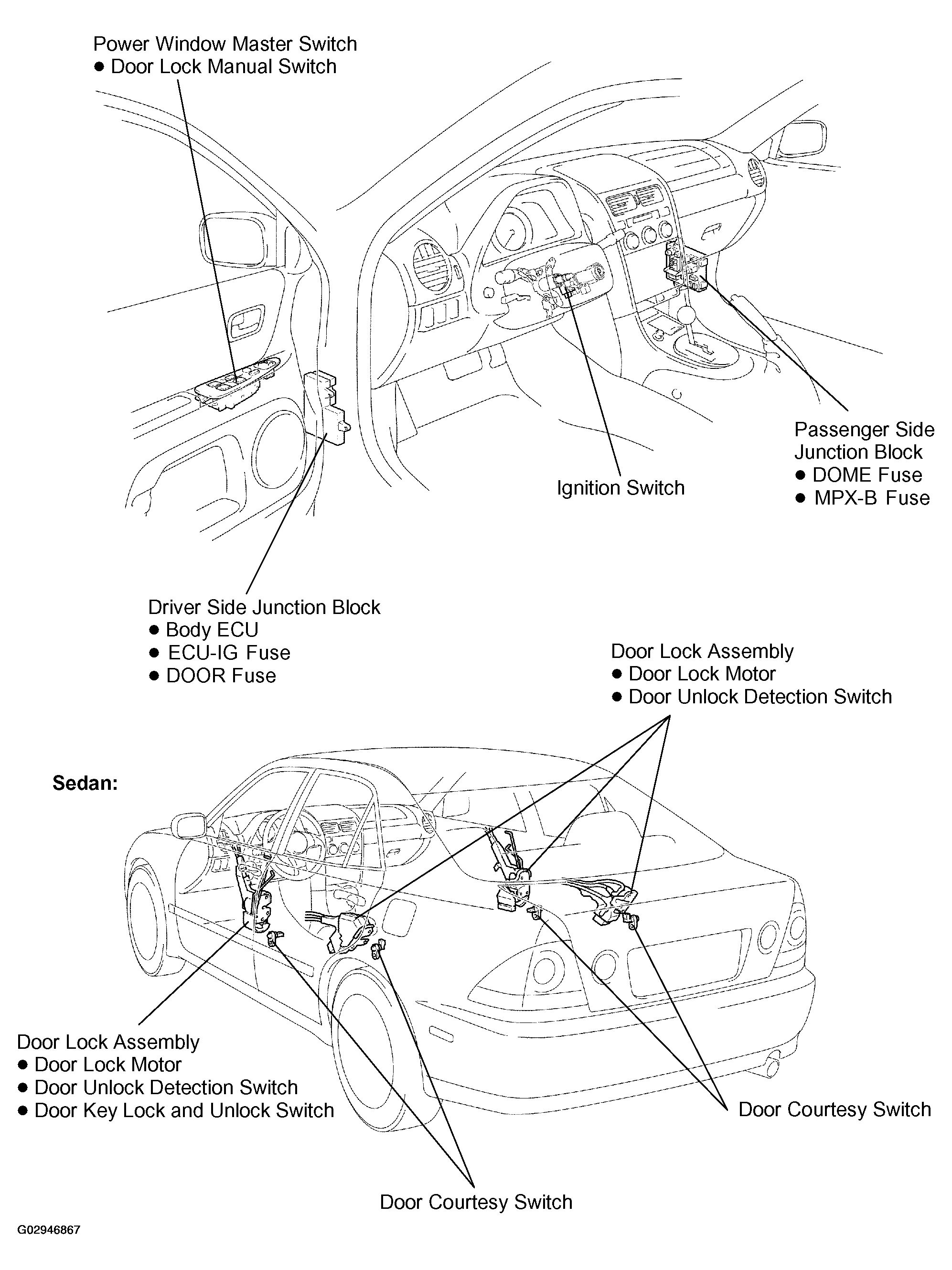

Fig 1: Identifying Power Door Lock Control System Components Location (1 Of 2)
G02946867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

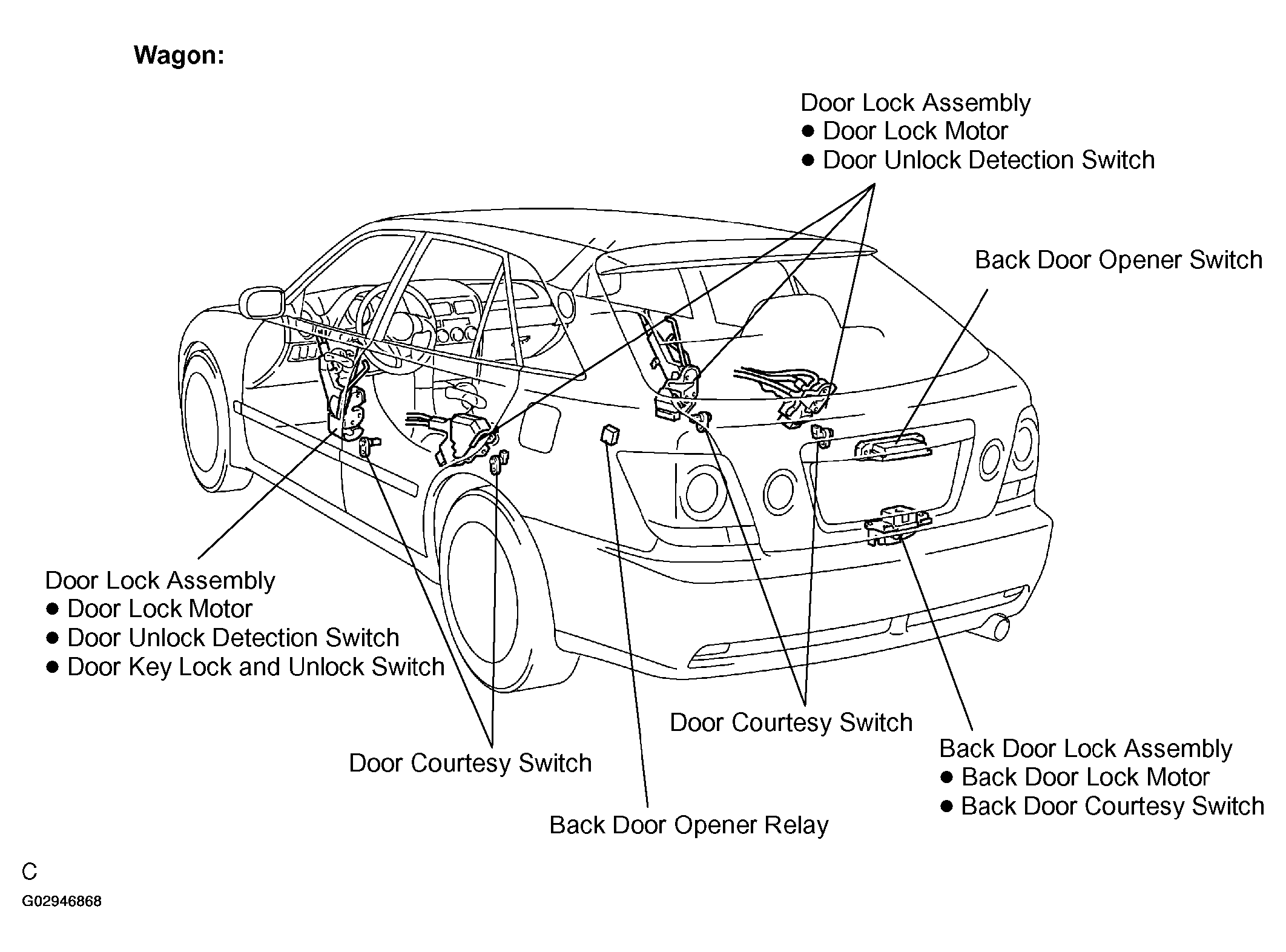

Fig 2: Identifying Power Door Lock Control System Components Location (2 Of 2)
G02946868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
